Home Valve Products 4V 200 Series Solenoid Valve

4V 200 Series Solenoid Valve

4V 200 Series Solenoid Valve
Price: Negotiable/Piece
Trade Terms: FOB
Min Order: 20/Piece
Pay Type: L/C,T/T,Western Union

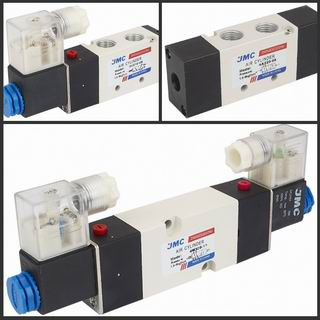

4V 200 Series 5 Way 2/3 Position Solenoid Valve
4V series solenoid valves include pilot valve from 1/8" to 1/2" with both flying leads type and DIN type connector.

Model 4V210-06/ 4V220-06/ 4V230C-06/4V230E-06/4V230P-06/4V210-08
4V220-08/4V230E-08/4V230P-08

Position Number: 5 Way 2/3 Position
Effective Section Area
14mm² (4V210-06/4V220-06)
12mm² (4V230C-06/4V230E-06/4V230P-06)
16mm² (4V210-08/4V220-08)
12mm² (4V230E-08/4V230P-08)
Working Medium: 40 Micron Filtered Air
Working Pressure: 0.15~0.8MPa
Max Pressure Resistance: 1.2MPa
Operating Temperature: 5~50° C
Voltage Range±-15%~+10%
Power Consumption: AC: 2.5VA DC: 2.5W
Insulation &Protection Class: B Class. IP65
Electrical entry: Lead Wire or Connector type
High Action Frequency: 3-5
Response time: Under 0.05Second
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Valve Structure: Pilot Piston Structure
Power Supply: DC Solenoid Valve
Connection Form: Thread
Type: Pilot Operated
YUEQING CHEERS TRADE Co., Ltd. A subsidiary of JMC which known as Zhejiang Zhengde Pneumatic Co. Ltd., was established in 2007. Being a professional trade company, we also have several our own manufacturing bases around the mainland. Our business range mainly engaged in Pneumatic & hydraulic items, low & high-voltage apparatus such as indicators, meters, power supplies, relays and LED series also with some other electric instruments etc.

The company has a young team equipped with senior knowledge structure and strong enterprising spirit, readying to provide our customers first-class service with their excellent ability and full enthusiasm at any time. Sincerely we hope to set up a long way friendship with all the clients from all over the world.
