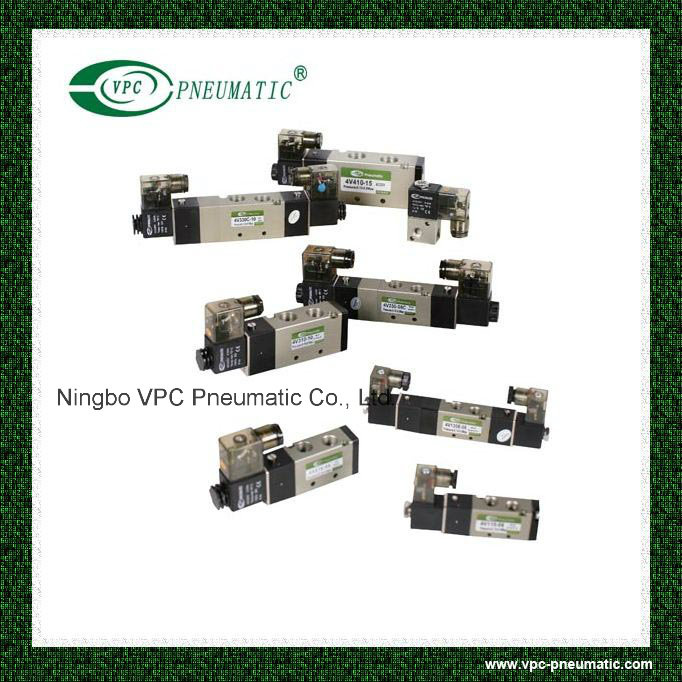

4V Series Pneumatic Directional 3 Position 5 Port Single Control Solenoid Valve Air Valve Pneumatic Valve

4V Series Pneumatic Directional 3 Position 5 Port Single Control Solenoid Valve Air Valve Pneumatic Valve
Price: US $ 3.5/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: T/T,Western Union

Quick Details

Packaging & Delivery

Packaging Details:inner box carton pallet
Delivery Detail:10-15 days

Specifications

Solenoid Valve
1.Acting Type:direct acting
2.Coil Type:DIN type/Flyling lead
3.Protective Class:IP65(DIN40050)
4.100% test

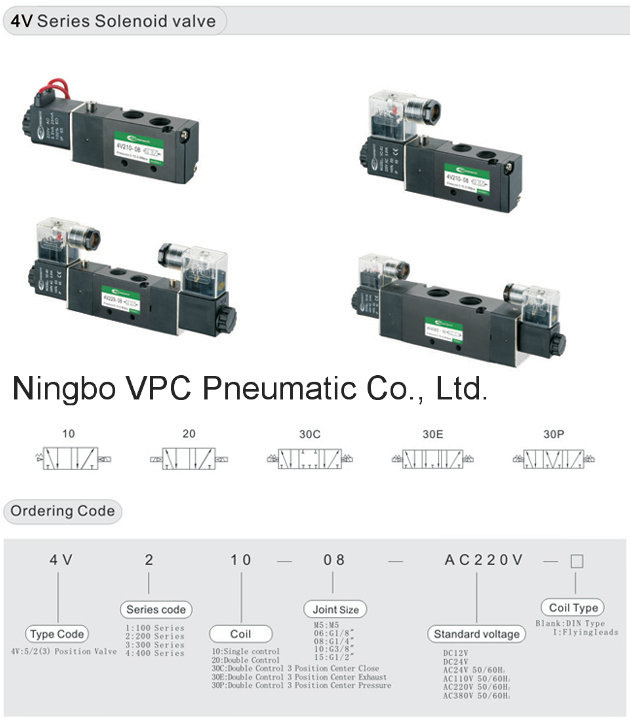

4V series directional solenoid valves have 5/2 and 5/3 types, size from M5 to 1/2", while 5/2 types have single solenoid type and double solenoid type, Single solenlid valves is repositioned by the spring, and the double solenoid vavle is repositioned by the coil. 5/3 type solenoid valve can make the cylinder piston stop at any position.



Specificaitons  of 4v Series Solenoid Valve (3 Position 5 port center pressure)

Model4V130P-M54V130P-064V230P-064V230P-084V330P-084V330P-104V430P-15
Working MediumClean Air (40 Micrometer Filteration)
Ways3 Position 5 Port
Acting TypeDirect Acting
Joint SizeImport=M5
Export=M5
Exhaust=M5
Import=1/8
Export=1/8
Exhaust=1/8
Import=1/4
Export=1/4
Exhaust=1/8
Import=1/4
Export=1/4
Exhaust=1/4
Import=3/8
Export=3/8
Exhaust=1/4
Import=1/2
Export=1/2
Exhaust=1/2
Sectional Area5mm2(CV=0.28)9mm2(CV=0.5)12mm2(CV=0.67)12mm2(CV=0.67)18mm2(CV=1.0)18mm2(CV=1.0)30mm2(CV=1.67)
Working Pressure0.15~0.9Mpa
Guarantee Pressure1.2Mpa
Working Temperature-5~60°C
Voltage Range-15%~10%
Heat Resistant GradeB
Protective ClassIP65(DIN40050)
Coil TypeDIN Type,Flying Leads
Max Acting Frequency3 Times/s3 Times/s3 Times/s



Prod Model: 4V230P-08 4V210 4V310 4V120 3V110 3V210 3V330
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Connection Form: Thread
Type: Direct Acting
Valve Structure: Direct-Acting Piston Structure
Power Supply: AC Solenoid Valve
Application: Household Usage
We are manufacturer of pneumatic cylinder ,solenoid valves ,directional valve ,fittings ,metal fitting ,air filter ,air hose in China .
