4V Series Solenoid Valve/4A Series Pneumatic Control Valve
Price: |
US $ 5/Piece |
Trade Terms: |
FOB,CIF,EXW |
Min Order: |
20/Piece |
Pay Type: |
L/C,T/T,Paypal |
4V Series Solenoid Valve
Product Description
4V Series Multi-port Solenoid valve
Ways: 5/2, 3/2, 5/3
Normal State: NO, N C
Size: 1/8", 1/4", 3/8", 1/2"
Medium: Clean air
Working Pressure: 0.15~0.8Mpa
Max Working Frequency: 5/3 times/ per second
Protection type: IP65
Voltage: All normal voltages are available
Model | 4V110~410 | 4V120~420 | 4V130~430C/P/E |
4A110~410 | 4A120~420 | 4A130~430C/P/E |
Position and Way NO. | Two-position Five-way | Three -position Five-way |
Working Medium | 40 Micron Filtered Air |
Motion Pattern | Inner Guide Type |
Working-Pressure | 0.15~0.18Mpa |
Max.Pressure Resistance | 1.2MPA |
Operating Temperature | 5~50ºC |
Voltage Range | ±10% |
Power Consumption | AC:4.5A DC:3W |
Insulation&Protection Class | F CLASS. IP65 |
Electrial Entry | Lead Wire or Connector Type |
Highest Action Frequency | 5Cycles/Second |
Response Time | 0.05 Second |

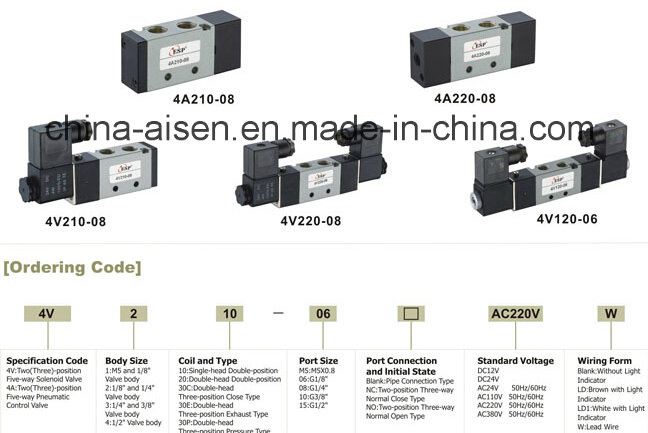

Prod Model: |
4A210-08/4A220-08 4V210-08/4V220-08/4V120-08 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Working-Pressure: |
0.15-0.8MPa |
Type: |
Pilot Operated |
Connection Form: |
Thread |
Valve Structure: |
Direct-Acting Piston Structure |
Power Supply: |
AC Solenoid Valve |
Application: |
Industrial Usage |
