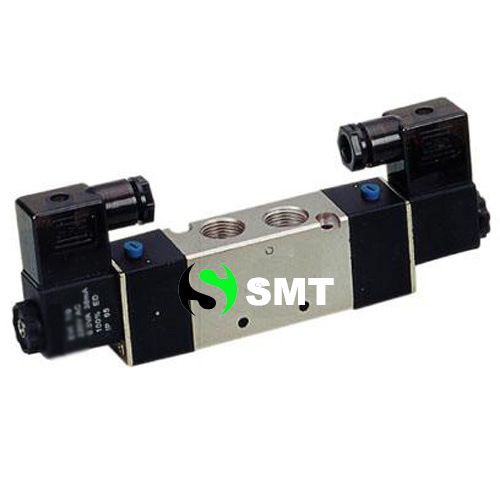

This series solenoid valve adopts integral slot throttle structure. The valve hole is processed with special high precision finishing technique. The product has good performance and good change over with long service life, handsome shape and large airflow.
| Model | 4V410-15 | 4V420-15 | 4V430C-15 | 4V430E-15 | 4V430P-15 |
| Valve type | 5 port 2 way | 5 port 3 way |
| Effective Cross Section Area | 50mm 2 (CV=2.79) | 30mm 2 (CV=1.68) |
| Port size | In=Out=Exhaust=G1/2" |
| Working medium | Air(to be filtered by 40μ filter element) |
| Motion Type | Inner guide type |
| Working pressure | 0.15~0.8MPa |
| Max. Test Pressure | 1.2MPa |
| Max. Ambient Temperature | 5~50 o C |
| Operating Voltage Tolerance | -10%~+10% |
| Power consumption | AC:5.5VA DC:4.8W |
| Insulation | F Class |
| Protection | IP65 |
| Wiring/connector | Lead wire or Connector type |
| Switching Frequency | 5 cycle/sec |
| Response Time | 0.05 sec |
