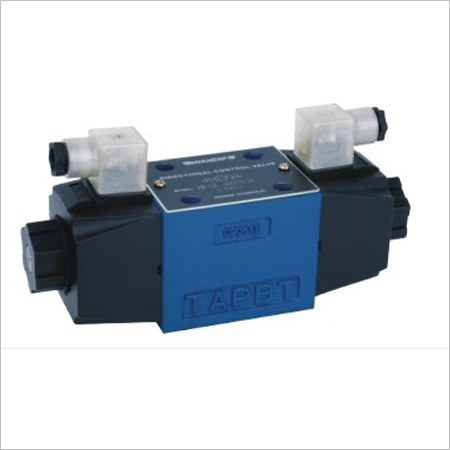

4WE series directional control valve are solenoid operated directional spool valves, these valves are used to the start, stop and direct oil flow.

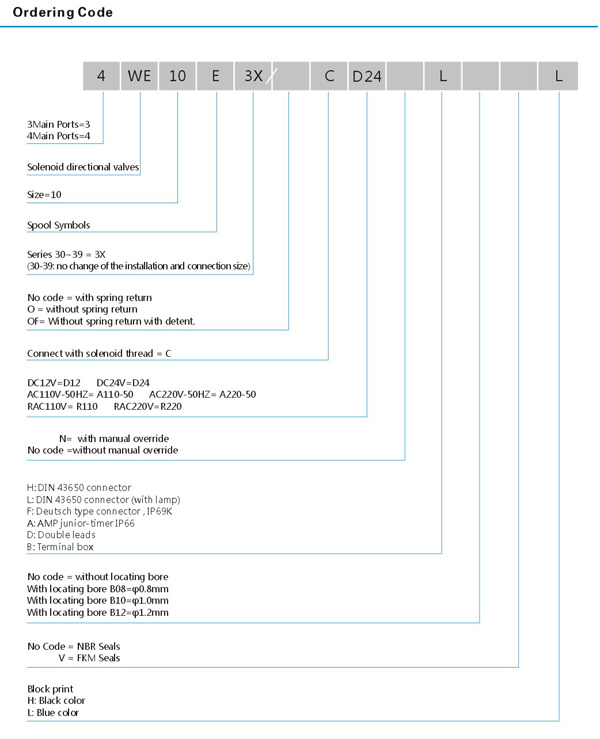

Ordering Code:Technical Specificaton:1. General Specification:Weight (Double Solenoids) | kg | 6.0(DC), 4.9(AC) |
Weight (Single Solenoid) | kg | 4.3(DC), 3.5(AC) |
Mounting Place |
| Any Place |
Surrounding Temperature | ºC | -30 to +50 (nitrile rubber seal) |
-20 to +50 (rubber seal) |
2. Hydraulic Specification:Max. Operating Pressure | Mpa | 31.5 |
Max. Pressure of T port | Mpa | 21 (DC), 16(AC) |
Max. Flow Rate | l/min | 120 |
Flow area (middle position) | mm2 | V Type: 11(A/B→T); 10.3(P→A/B) |
mm2 | W Type: 2.5 (A/B→T) |
mm2 | Q Type: 2.5 (A/B→T) |
Liquid medium |
| Mineral Hydraulic Oil, Phosphate Oil |
Oil temperature Fluctuation Range | ºC | -20 to +80(rubber seal) |
-30 to +80 (nitrile rubber seal) |
Oil Cleaness |
| ISO4572: B10≥75NAS1638:9grade |
Oil Viscosity range | mm2/s | 2.8 to 500 |
3. Electrical Specification:Voltage |
| DC, AC(50Hz) |
Operating Mode | ED | 100% |
Voltage Tolerance | % | -15 to +10 |
Reversing time | ms | DC: on 145-160, off 120-130 |
AC(50HZ): on 15-25, off 20-30 |
Reversing Frequency | time/h | ≤15000 (DC), ≤ 72000(AC, 50Hz) |
Max. Solenoid Temp. | ºC | 135 (B grade), 180 (H grade) |
Power Voltage | V | 12 | 24 | 48 | 96 | 110 | 110 | 220 |
Power Type |
| DC | DC | DC | DC | DC | AC | AC |
Power Frequency | Hz |
|
|
|
| 50/60 | 50/60 |
Rated Power Consumption | W | 36 | 36 | 36 | 36 |
|
|
Impulse current | A |
|
| 1.40 |
Keeping current(20ºC) | A |
|
| 0.42 |

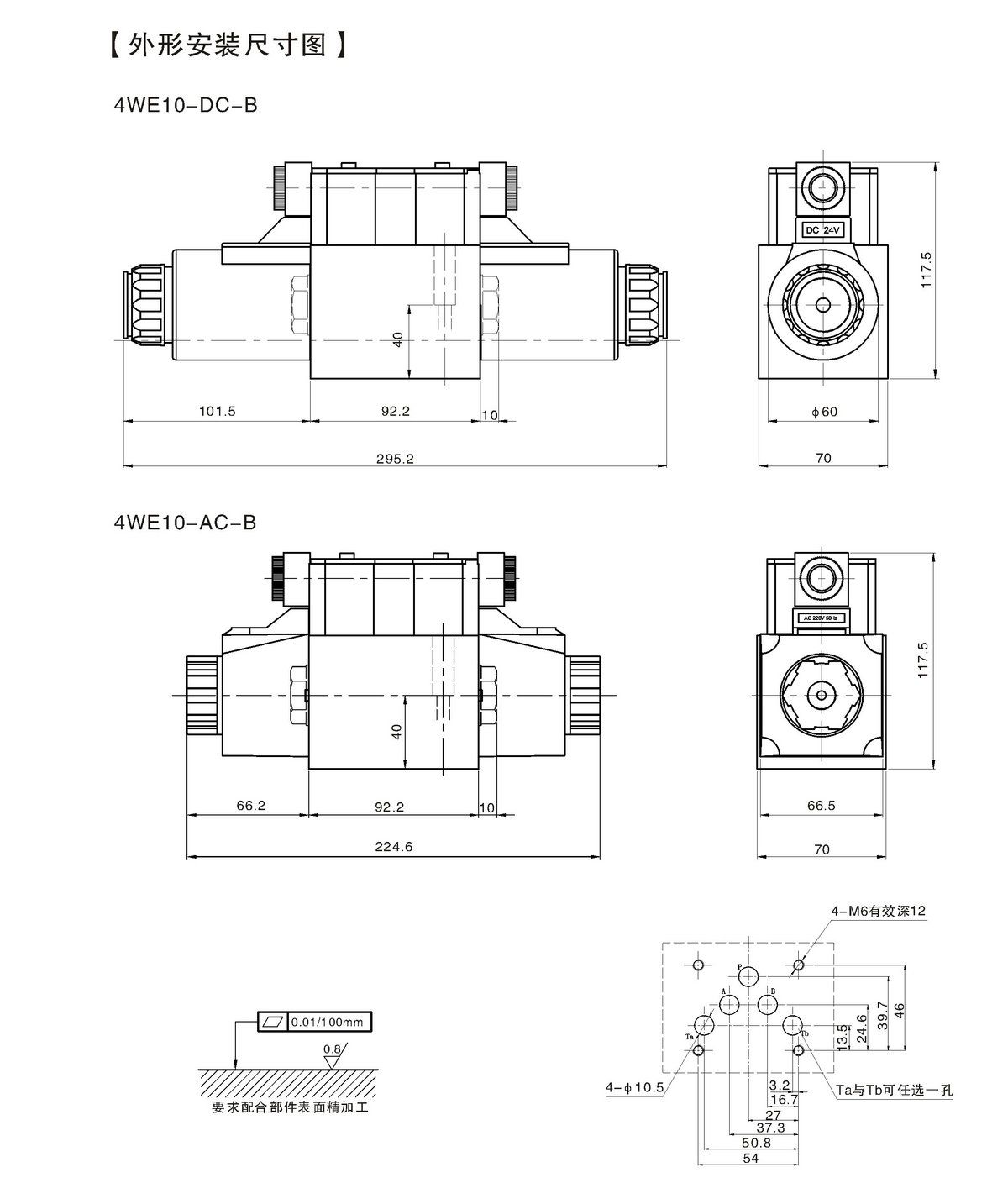

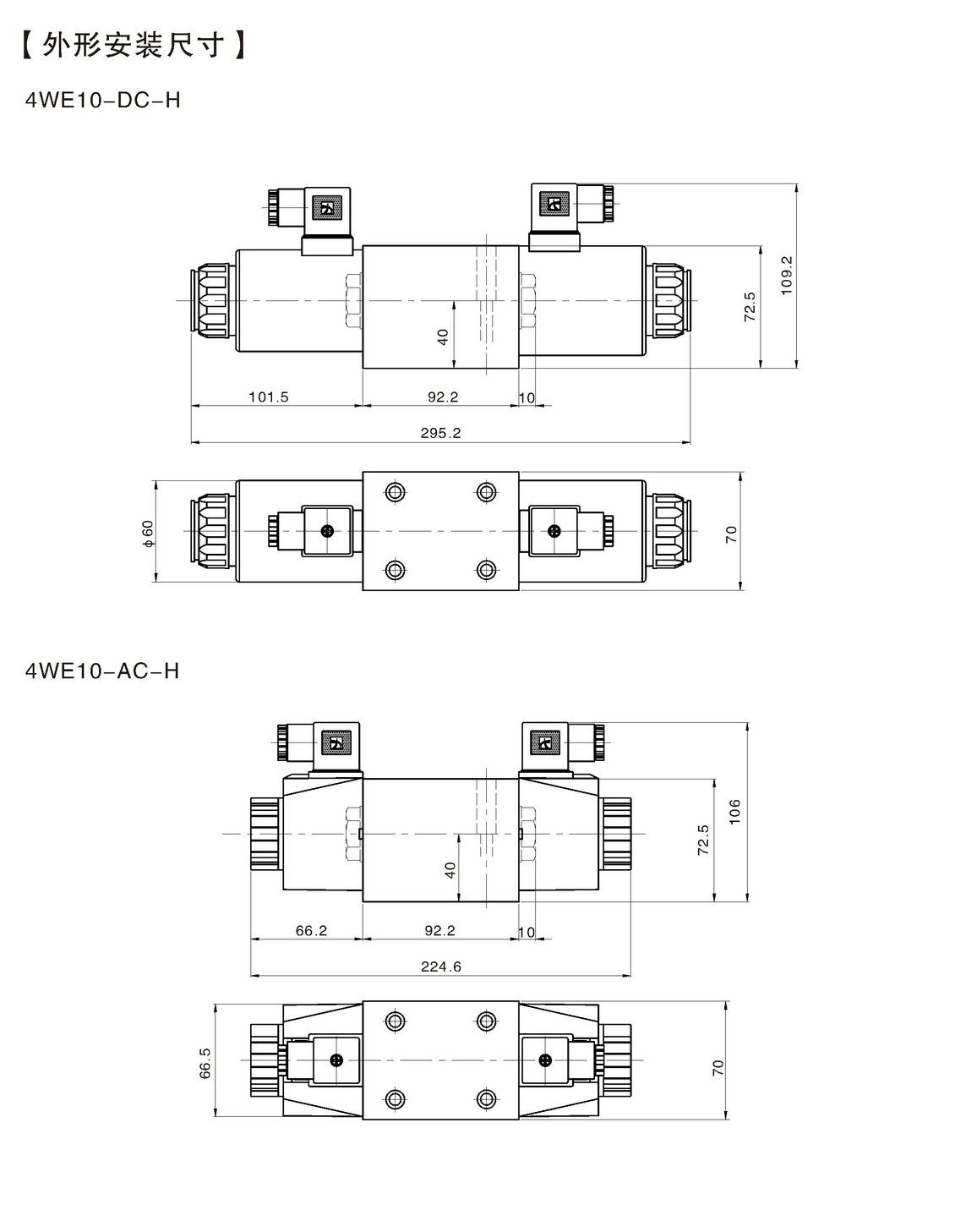

Mounting Size:
