4WE series directional control valve are solenoid operated directional spool valves, these valves are used to the start, stop and direct oil flow.

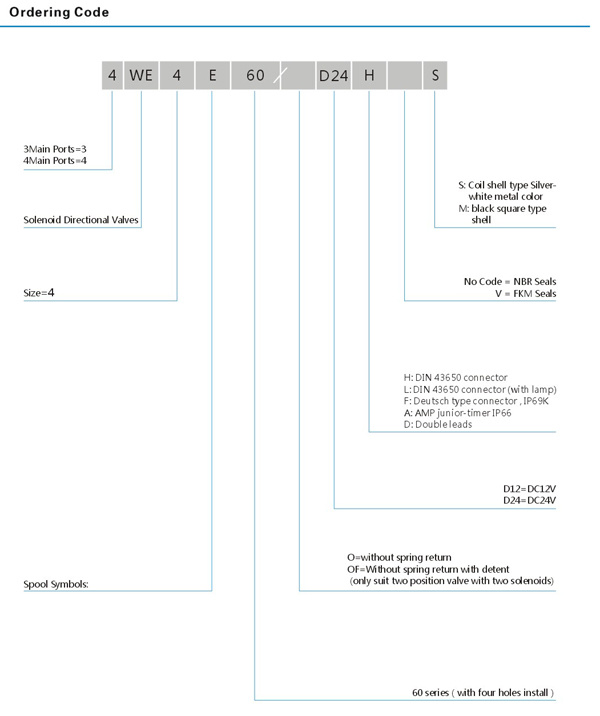

Ordering Code:
Technical Specificaton:1. General Specification:| Weight (Double Solenoids) | kg | 0.89 |
| Weight (Single Solenoid) | kg | 0.72 |
| Mounting Place | | Any Place |
| Surrounding Temperature | ºC | -20 to +50 |
| Max. Operating Pressure | Mpa | 31.5 |
| Max. Pressure of T port | Mpa | 21 |
| Max. Flow Rate | l/min | 25 |
| Liquid medium | | Mineral Hydraulic Oil, Phosphate Oil |
| Oil temperature Fluctuation Range | ºC | -20 to +80 |
| Oil Cleaness | | ISO4572: B10≥75NAS1638:9grade |
| Oil Viscosity | | ISO-VG32 (5420) cSt |
| Voltage | | DC, RAC |
| Operating Mode | ED | 100% |
| Voltage Tolerance | % | -10 to +10 |
| Reversing and Rest time | ms | on 50-90, off40-80 (not including RAC ) |
| Max. Reversing Frequency | Hz | 3 |
| Solenoid Insulation Grade | | H |
| Max. Solenoid Temp. | ºC | 180 |
| Solenoid Weight | kg | 0.215 |
| Power Voltage | V | 12 | 24 | 48 | 110 | 110 | 220 |
| Power Type | | DC | DC | DC | DC | RAC | RAC |
| Power Frequency | Hz | | | | | 50/60 | 50/60 |
| Rated Power Consumption | W | 26 | 26 | 26 | 26 | 29 | 29 |
| Solenoid resistance(20ºC) | ohm | 5.5 | 22 | 89 | 413 | 89 | 413 |
| Operating current(20ºC) | A | 2.18 | 1.10 | 0.50 | 0.26 | 0.33 |
0.17
|

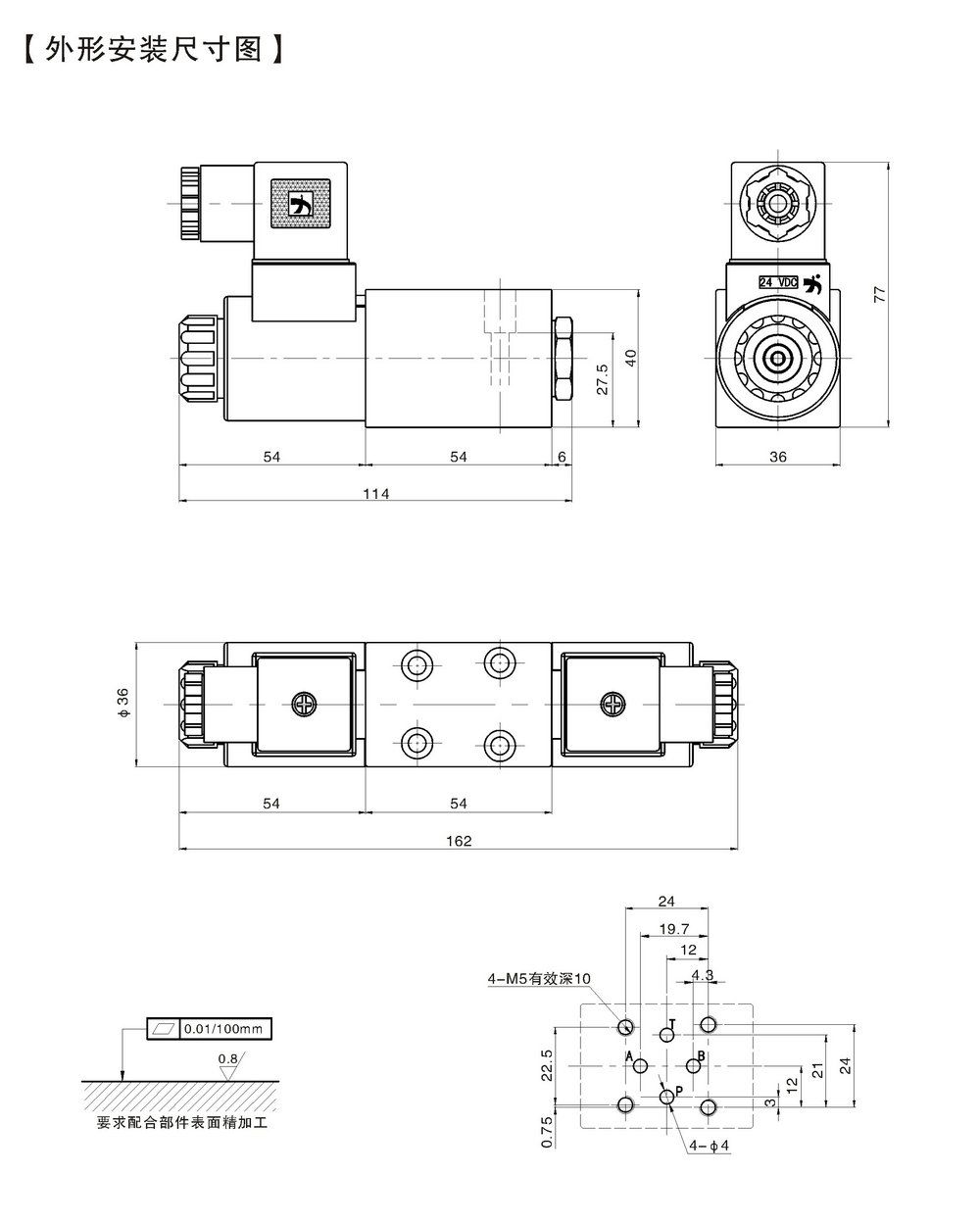

Mounting Size:
