Solenoid Valve
1.Acting Type:direct acting
2.Coil Type:DIN type/Flyling lead
3.Protective Class:IP65(DIN40050)
4.100% test

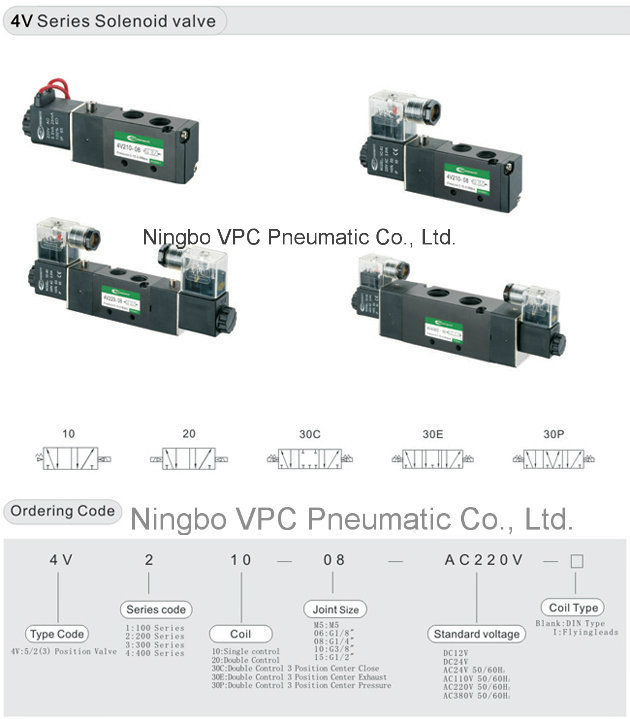

4V series directional solenoid valves have 5/2 and 5/3 types, size from M5 to 1/2", while 5/2 types have single solenoid type and double solenoid type, Single solenlid valves is repositioned by the spring, and the double solenoid vavle is repositioned by the coil. 5/3 type solenoid valve can make the cylinder piston stop at any position.
Specificaitons of 4v Series Solenoid Valve (2 Position 5 port single control)
Model | 4V110-M5 | 4V110-06 | 4V210-06 | 4V210-08 | 4V310-08 | 4V310-10 | 4V410-15 |
Working Medium | Clean Air (40 Micrometer Filteration) |
Ways | 2 Position 5 Port |
Acting Type | Direct Acting |
Joint Size | Import=M5 Export=M5 Exhaust=M5 | Import=1/8 Export=1/8 Exhaust=1/8 | Import=1/4 Export=1/4 Exhaust=1/8 | Import=1/4 Export=1/4 Exhaust=1/4 | Import=3/8 Export=3/8 Exhaust=1/4 | Import=1/2 Export=1/2 Exhaust=1/2 |
Sectional Area | 5.5mm2(CV=0.31) | 12mm2(CV=0.67) | 14mm2(CV=0.78) | 16mm2(CV=0.89) | 25mm2(CV=1.39) | 30mm2(CV=1.67) | 50mm2(CV=2.79) |
Working Pressure | 0.15~0.9Mpa |
Guarantee Pressure | 1.2Mpa |
Working Temperature | -5~60°C |
Voltage Range | -15%~10% |
Heat Resistant Grade | B |
Protective Class | IP65(DIN40050) |
Coil Type | DIN Type,Flying Leads |
Max Acting Frequency | 5 Times/s | 4 Times/s | 3 Ti |
We are manufacturer of pneumatic cylinder ,solenoid valves ,directional valve ,fittings ,metal fitting ,air filter ,air hose in China .
