5/2 Way Solenoid Valve

5/2 Way Solenoid Valve
Price: US $ 6/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 100/Piece
Pay Type: L/C,T/T,Paypal,Western Union
Production Description:
4V Series Solenoid Valves

Solenoid valves are an efficient method of converting electrical signals into pneumatic functions. Applying electricity to the solenoid quickly directs air through the valve and into the circuit.

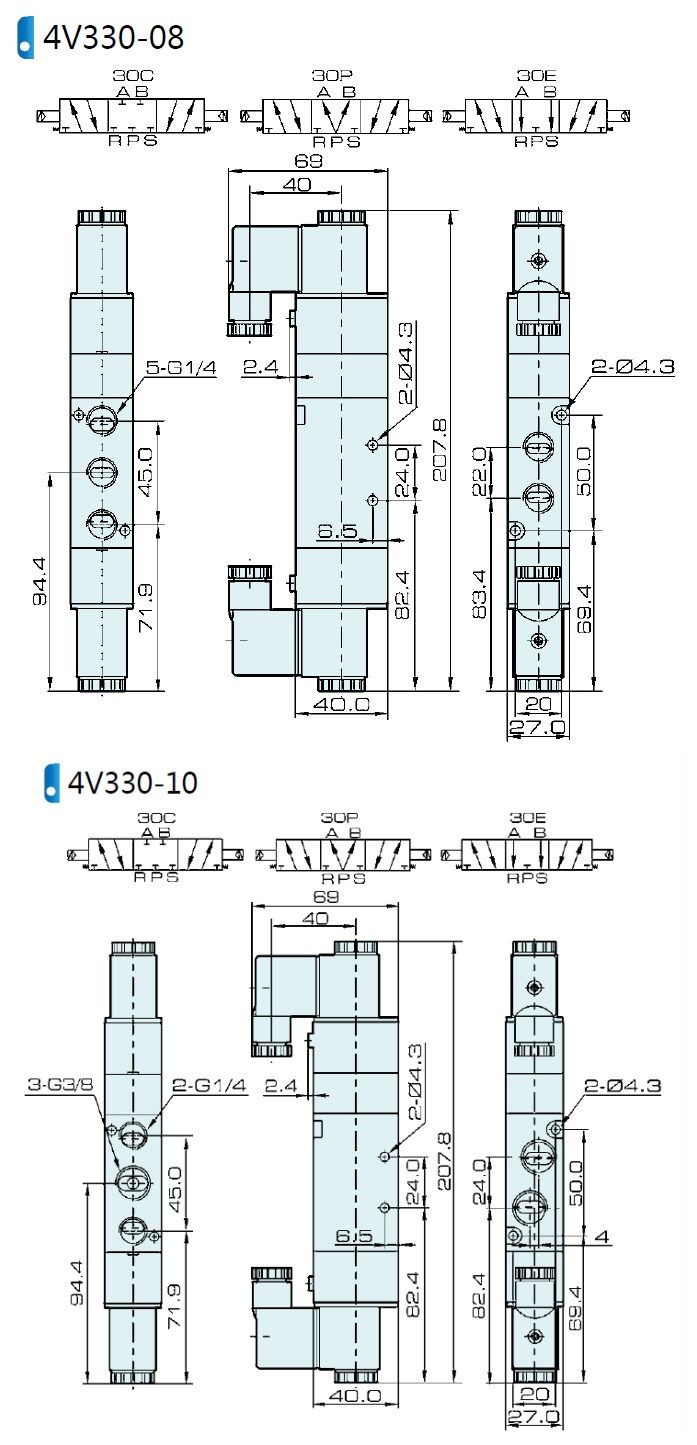

Dimension of 4V Series Solenoid Valves:

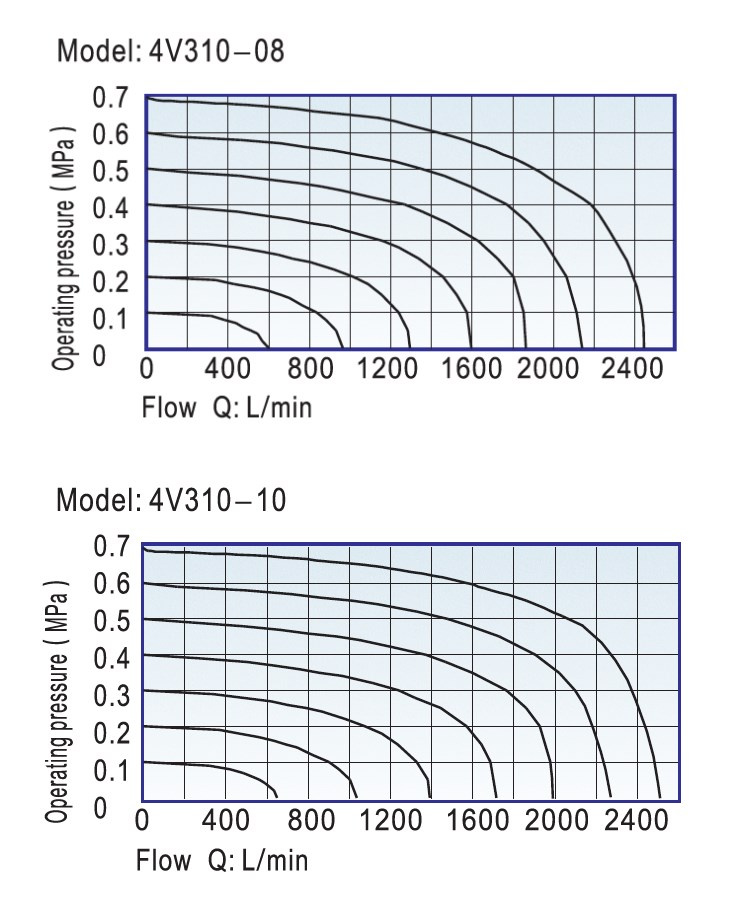

Flow Chart of 4V310 Solenoid Valves:

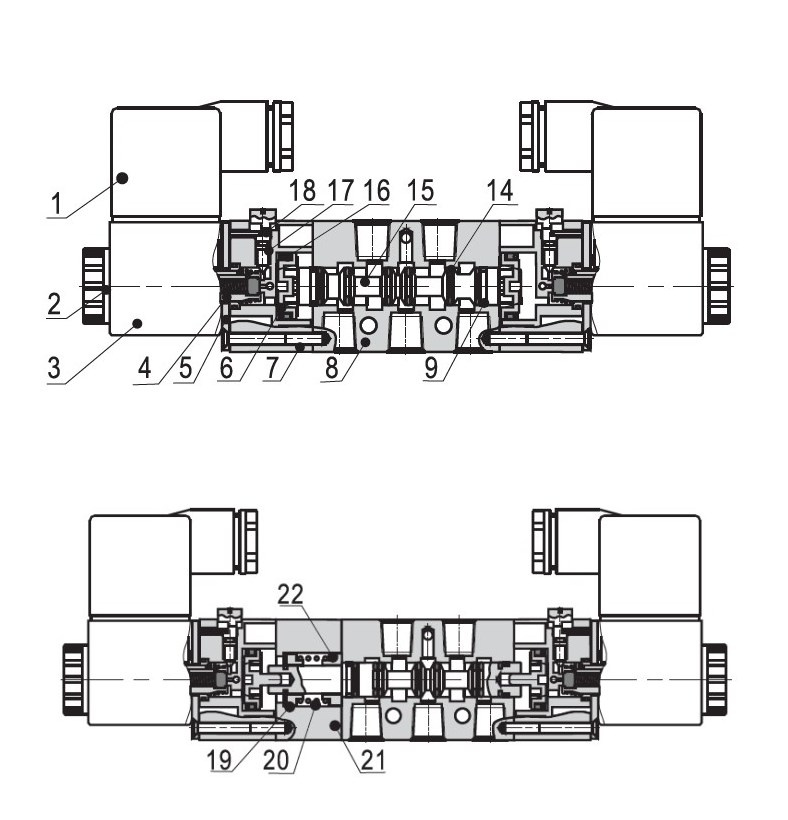

Structure of 4V300 Series Solenoid Valves:

Structure Code:
No.ItemNo.Item
1Connector12Spool Spring
2Coil Net13Bottom Cover Gasket
3Coil14Spool O-Ring
4Armature15Spool
5Fixed Plate16Piston O-Ring
6Piston17Override Spring
7Pilot Kit18Manual Override
8Body19Spring Holder
9Wear Ring20Return Spring
10Bottom Cover21Side Cover
11Fixed Screw22Spring Holder
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model: 4V310/4V320/4V330
Operation Type: Inside Pilot Type
Fluid Medium: 40 Micron Filtered Air
Position And Way Number: Two/Three Position Five Way
Working Pressure: 0.15--0.8MPa(21--114psi)
Proof Pressure: 1.2MPa(174psi)
Working Temperature: 5--50 Degree
Port Size: Air Inlet=Air Outlet=Exhaust=G1/8''
Highest Action Frequency: 5 Cycles/Second
Shortest Excitation Time: 0.05 Second
Type: Direct Acting
Connection Form: Thread
Valve Structure: Direct-Acting Piston Structure
Power Supply: AC Solenoid Valve
Application: Household Usage
Material: Aluminum
Fenghua Xinling Pneumatic Engineering Co., Ltd is the leading manufacturer and supplier of solenoid valves, cylinders, Filters, Regulators and Lubricators as well as various kinds of pneumatic accessories in China.

Since its starting in early 1900s, FL have earned great reputation as a choice for pneumatic components from both domestic and worldwide with sterling record of on-time delivery, fair pricing, product quality and highly skilled employees dedicated to continuous improvement and training.

Our vision of being a world-class supplier of pneumatic components are being achieved by every employee today. We have been exported to United States, EU, Iran, Argentina, Brazil, etc...We are expanding our customer base daily in these countries and expect in the future to have FL be more familiar all over the world.

We understands what it takes to do business across borders and can help make a sometimes difficult business transaction, simple for our customers. To ensure timely delivery, we only work with large, well-known Freight forwarders that have offices in other countries to assist with foreign customs and entry requirements.

Being "the best" has always been reflective of the attitude of FL employees. Team effort is the driving force of this philosophy. As Margaret Mead, world-renowned anthropologist, stated, "Never doubt that a small group of thoughtful, committed people can change the world. Indeed, it is the only thing that ever has. "
