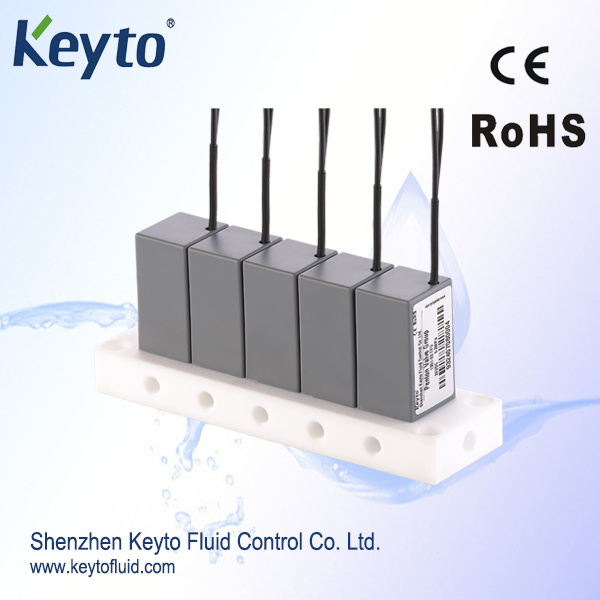

5 Channel Valve Manifold 1351-22
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,D/P,Paypal,Money Gram,Western Union |
Product Features:1. Channel configuration with a common inlet and different outlets are available.
2. Simple installation to save cost and space.Specification| Model | 1351-22 Solenoid Valve with Manifold Module |
| Body material | PTEF, POM |
| Seal material | EPDM, FFKM |
|
| Structure | Direct acting diaphragm |
| Number of port | 2 common port + 1 optional common port + 5 (optional branch) |
| Orifice diameter | 2 mm |
| Flow | 6.8 g/s (under 25ºC, 50KPa) |
| Power consumption | 3.5 W (single valve) |
| Operating pressure | -80KPa ~ 0.2MPa |
| Prod Model: |
1351-22-TFU |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Connection Form: |
Flange |
| Type: |
Direct Acting |
| Valve Structure: |
Direct Action Diaphragm Structure |
| Power Supply: |
DC Solenoid Valve |
| Application: |
Medical Device Usage |
| Material: |
PTFE/ POM |
| Pressure: |
-80kpa ~ 0.2MPa |
Shenzhen Keyto Fluid Control Co., Ltd, is the domestic leader of fluid control components industry, including micro solenoid valve, precision dispense pumps, micro diaphragm pumps etc.We are national high-tech enterprise.
1.In 2010, Keyto Fluid Control Co., Ltd.Established in Shenzhen, China.
A) Registered capital:$2.3 million
B) Covering an area of 2500 sq
C) Employee:106 people, including 9 people who have master's degrees or doctor's degrees.
2.Service subsidiary:Shenzhen, Beijing, Shanghai, Jiangsu, Zhejiang, Hubei, Hunan, Jiangxi, Sichuan, Fujian, Shandong, Changchun,
A) Headquarter office covers an area of 900 sq, including General Manager Office, R&D department, marketing.
B) Factory One:Dust-free assembly workshop, covering an area of 1100 sq.
C) Factory Two:Precision Machining workshop, covering an area of 500 sq.
3.Product Certification:All products have CE & RoHS certification.We have independent intellectual property rights, and have more than 20 patents.
4.Quality Management:Passed ISO9001 quality certification system.And we have modern advanced facilities and methods for testing.All products are full inspected before out of factory.
To perfect our service, we provide the products with good quality at the reasonable price.
