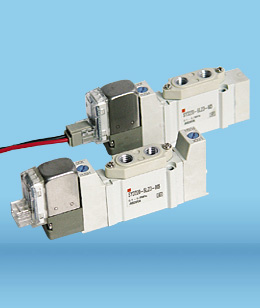

SY3000 Series 5 Port Solenoid Valve
1. Impact resistance: No malfunction occurred when it is tested with a drop tester in the axial direction and at the right angles to the main valve and armature in both energized and de-energized states every once for each condition. (Values at the initial period)
2. Vibration resistance: No malfunction occurred in a one-sweep test between 45 and 2000 Hz. Test was performed at both energized and de-energized states in the axial direction and at the right angles to the main valve and armature. (Values atthe initial period)
|
Valve model |
SY3000 |
|
Fluid |
Air |
|
Internal pilot Operating pressure range (MPa) |
2 position single |
0.15~0.7 |
|
2 position double |
0.1~0.7 |
|
3 position |
0.2~0.7 |
|
Ambient and fluid temperature ° C |
-10~50(No freezing) |
|
Max. operating frequency (Hz) |
2 position single, double |
10 |
|
3 position |
3 |
|
Response time (Light/Surge Voltage suppressor) |
2 position single |
≤ 12 |
|
3 position |
≤ 15 |
|
Pilot exhaust method |
Common exhaust type for main and pilot valve |
|
Lubrication |
Not required |
|
Mounting orientation |
Unrestricted |
|
Note)Impact/Vibration resistance (m/s) |
150/30 |
|
Enclosure |
Dustproof (DIN terminal, M8 connector comforms to Ip65) |
