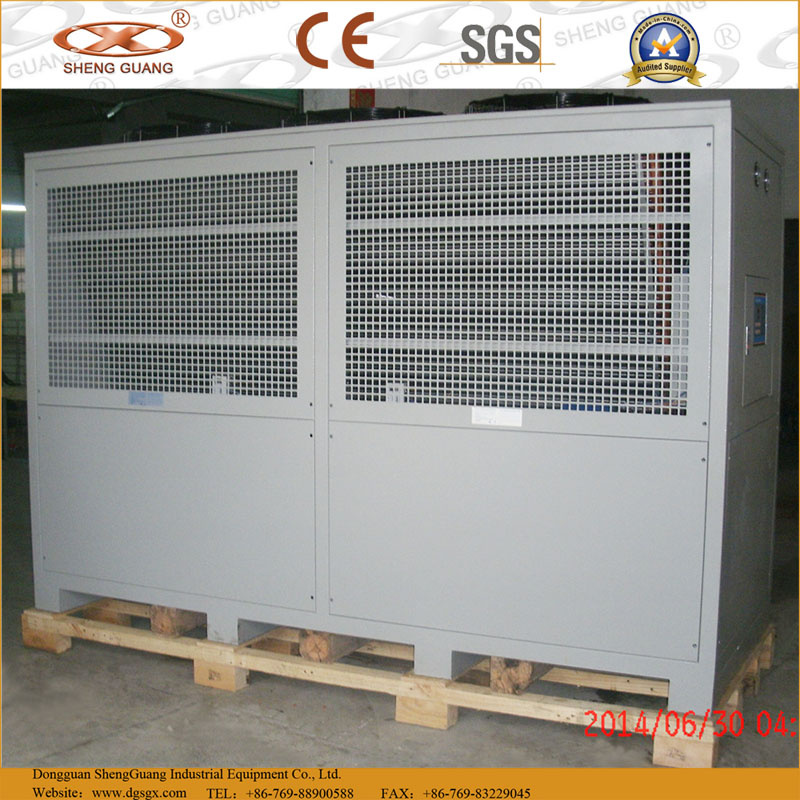

Oil chillers
Application:
>CNC machining center, CNC grinding machine, broaching machine, CNC woodworking machine.
>CNC punching machine, CNC lathe, high speed lathe.
>Hydraulic system.
>High speed spindle.
Feature:
>Prevent temperature increasing of spindle, improve working precision of machine.
>Prevent deviation of spindle center line or heat deformation of machine.
>Extend the lifetime of the machine.
>Stabilize oil pressure, prevent oil vibration, prevent oil go bad.
>Easy operation, low noise.
Item / Model |
CO-28 |
CO-36 |
CO-48 |
CO-60 |
CO-90 |
CO-120 |
Cooling capacity |
KCAL/H |
7000 |
9000 |
12000 |
15000 |
22500 |
30000 |
W |
8160 |
10500 |
13980 |
17480 |
26220 |
34950 |
BTU/H |
28000 |
36000 |
48000 |
60000 |
90000 |
120000 |
Temp.
controller |
F |
Fixed temperature control |
D |
Differential temperature control type |
H |
Low-temperature heating type |
Use range |
Ambiet temp °C |
10 ~ 40°C |
Oil temp °C |
5°C≤Oil temp ≤ 50°C |
Power source |
3Φ 380 ~ 415V 50Hz |
Compressor (w) |
2480 |
3000 |
3750 |
4500 |
6750 |
9000 |
Pump |
Flow(L/min) |
30 |
40 |
40 |
60 |
83 |
135 |
Power(W) |
750 |
750 |
1500 |
1500 |
2200 |
2200 |
Oil pipe |
inlet |
PT 3/4" |
PT 1" |
PT 1" |
PT 1" |
PT 1.2" |
PT 1.2" |
outlet |
PT 3/4" |
PT 1" |
PT 1" |
PT 1" |
PT 1.2" |
PT 1.2" |
Refrigerant |
R22 or R407C |
Noise dB (A) |
≤60dB(A) |
Cooled way |
Air-cooled |
Dimension |
Without tank(CM) |
50×70×120 |
70×70×125 |
80×135×160 |
87×195×175 |
With oil tank(CM) |
~None~ |
Weight |
Without tank(CM) |
172 |
210 |
235 |
286 |
320 |
365 |
With oil tank(CM) |
~None~ |
