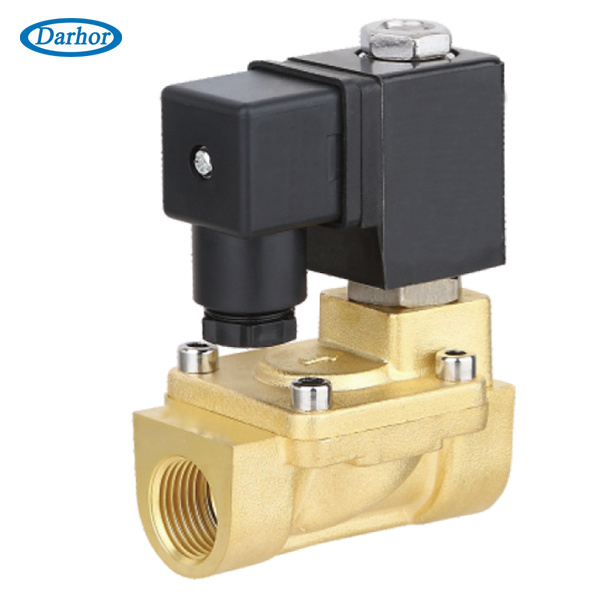

DHL11 Series Direct acting, pilot operating diaphragm structure
Direct lifting diaphragm Latching Solenoid Valve
Characteristic:
1. With latching coil at low power consumption
2. Applied to washroom, public W. C. Etc.
3. Lifespan can be at 1 million cycles.
Medium: Water
Temperature:
NBR Seal: 14F to 176F, -10 to 80
EPDM Seal: 14F to 250F, -10 to 120
VITON Seal: 14F to 300F, -10 to 150
Pressure: DHL11: 0.3 ~ 10 bar
Port Size: 3/8", 1/2", 3/4", 1', 11/4', 11/2', 2'
Port Thread: G, BSPT, NPT, Flange
Orifice (mm): 15, 20, 25, 32, 40, 50
Voltage: DC - 6V, 12V, 24V
Coils: L11B, 2W (DC), IP65 100%ED
Material:
Body - Brass or stainless steel
Seal -NBR, EPDM or VITON
Armature Tube - Stainless Steel 304
Plunger - Stainless Steel 430F
Stop -SS430F
Springs - SS 304
Shading Rings - Stainless Steel 304
|
Port Size |
Orifice |
Cv |
Min Pressure(bar) |
Max Pressure(bar) |
Valve Body |
Coil |
|
|
|
|
|
DC(2W) |
|
|
|
3/8" |
12 |
4.5 |
0.3 |
10 |
DHL1112 X X X |
L11B |
|
1/2" |
15 |
4.5 |
0.3 |
10 |
DHL1115 X X X |
L11B |
|
3/4" |
20 |
9.3 |
0.3 |
10 |
DHL1120 X X X |
L11B |
|
1" |
25 |
12 |
0.3 |
10 |
DHL1125 X X X |
L11B |
|
1 1/4" |
32 |
24 |
0.3 |
10 |
DHL1132 X X X |
L11B |
|
1 1/2" |
40 |
29 |
0.3 |
10 |
DHL1140 X X X |
L11B |
|
2" |
50 |
48 |
0.3 |
10 |
DHL1150 X X X |
L11B |
