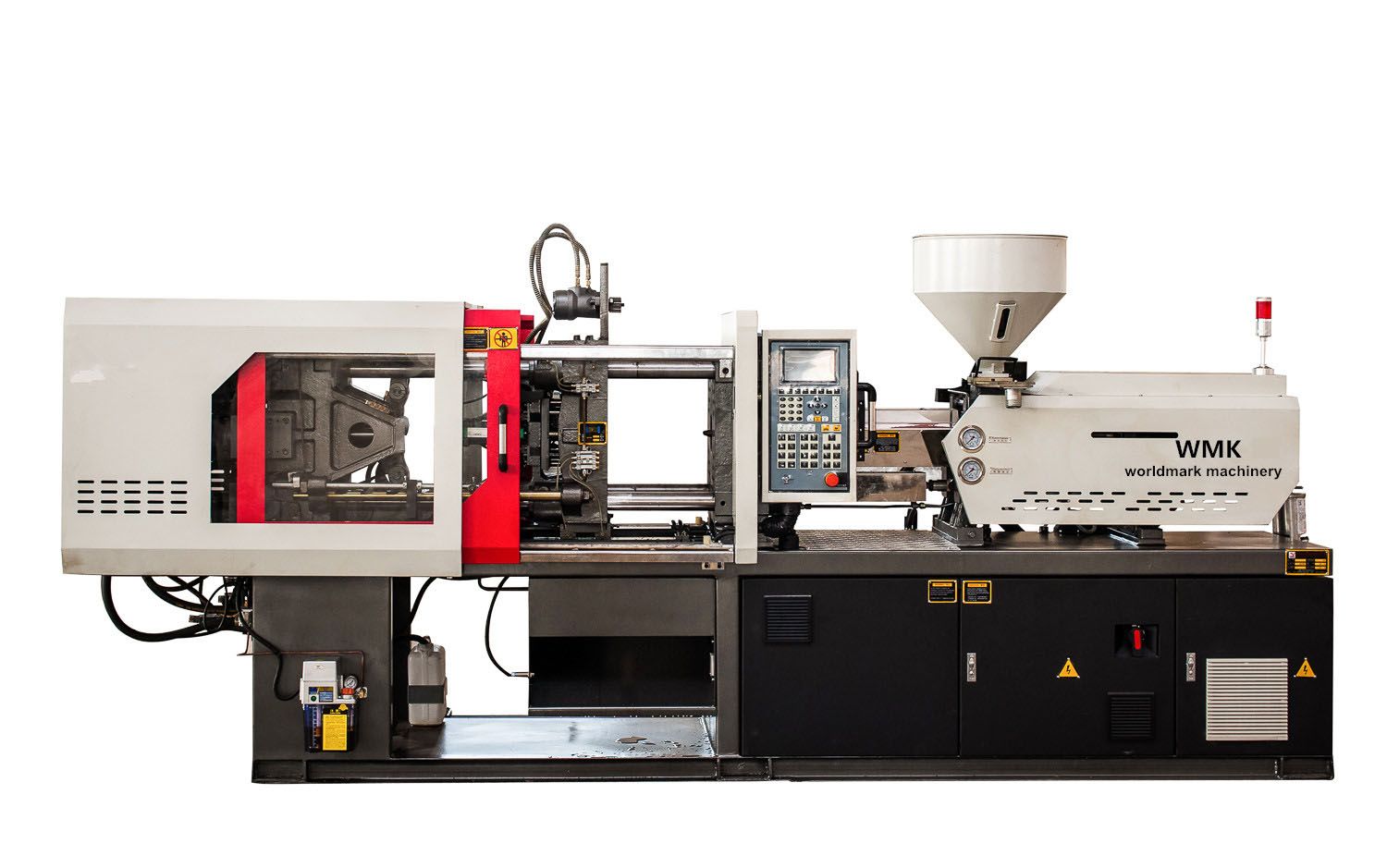

70ton Spoon Making Machine/High Speed Injection Molding Machine

70 Ton Plastic Injection Molding Machine

We are professional plastic injection molding machine manufacturer for all kinds of production requirements, Clamping force from 50 to 1680T, injection weight from 50 to 10000g. With best price/ performance ration of any machine on the market.

The important features:

Clamping system: Faster response, stable and high rigidity
Injection system: Accurate and flexible, lower rejection rate
Control system: Computer and simple operation, molding data memory system
Power system: Energy saving, high efficient and precise
Metal parts: The thickness of our frame, metal plate and wallboard are thicker than other company.

Other Information

Ceramic heating loop: Uniform heating, better thermal insulation properties so good for production
Visiable lubrication system: On time clean, avoid cast steel parts abrasion and broken.
Oil treasure: Filter of hydraulic oil, good for pump and valves
Long working life: Imported spare parts and updated version
Aftersales service: Professional & timely
Delivery time: 30-60 days
Port of dispatch: Shanghai

INJECTION UNIT		Unit	WMK-70
			A	B	C
	Screw Diameter	Mm	26	30	34
	Screw L/D Ratio	L/D	24	21	19
	Short Size	Cm3	69	92	118
	Injection weight	G	62	83	107
	Injection Rate	g/s	60	80	103
	Plasticizing capacity	g/s	6.3	8.4	10.3
	Injection Pressure	Mpa	236	177	138
	Screw Speed	Rpm	0-220
CLAMPING UNIT	Clamp Force	KN	700
	Space Between Tie Bars	mm	310*310
	Toggle Stroke	mm	285
	Max. Mold Height	mm	330
	Min. Mold Height	mm	100
	Ejector Stroke	mm	70
	Ejector Tonnage	KN	22
	Ejector Number	P	1
OTHERS	Max. pump Pressure	Mpa	16
	Pump motor powder	Kw	7.5
	Heater Power	Kw	5.1
	Machine Dimension(L*W*H)	M	3.7*1.02*1.81
	Oil Tank Capacity	L	180
	Machine Weight	T	2.7
