Product Description

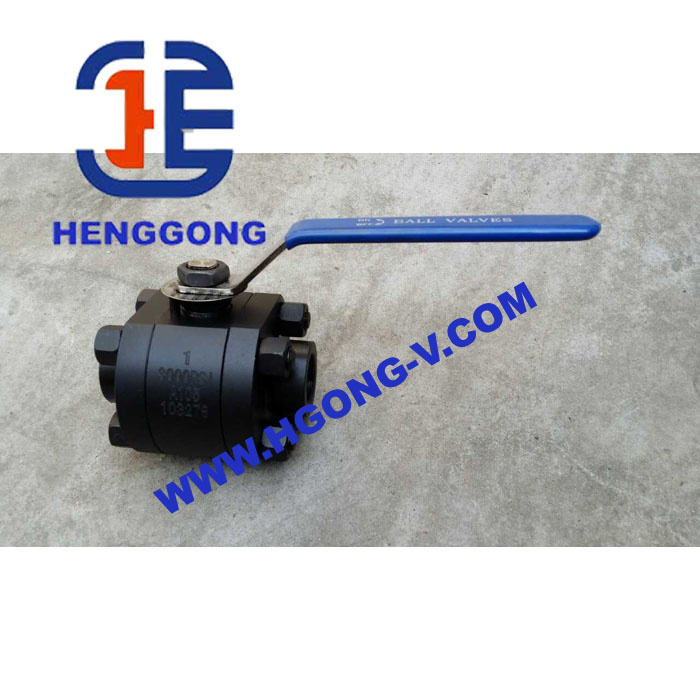

2 Piece Reduce Port Thread Ends Ball Valves
Product Details: Size: NPS 1/2"~2"
Pressure Rating: Class 800, Class 1500, Class 2500
Material: WCB, CF8, CF8M, CF3, CF3M, A105, F304, F316
Design & Manufacturing Standard: ASME B16.34, API 608
Structure Length Size: Manufacturing Standard
Flange Connection Size: ASME B16.5, (DIN 2501)
Butt Welding Size: ASME B16.25, ASME B1.20.1, ASME B16.11
Pressure-Reference Temperature: ASME B16.34
Check & Experiment: ISO 5208, API 6D
Drive Method: Manual, Gear Case, Electro-motion, Pneumatic, Linkage
Design & Manufacturing Standard | ASME B16.34, API 608 |
| Structure Length Size | Manufacturing Standard |
| Flange Connection Size | ASME B16.5, (DIN 2501) |
| Butt Welding Size | ASME B16.25, ASME B1.20.1, ASME B16.11 |
| Pressure-Reference Temperature | ASME B16.34 |
| Check & Experiment | ISO 5208, API 6D |
Established in 1998, HengGong valve Group Co., Ltd., is located in Dongou Industrial Area in Oubei Town of Yongjia County, the cradleland of "China Pump and Valve", which enjoys favorable geographical location and convenient transportation. Presently, our company is covering an area of 3000 square meters, and owns 10 senior engineers, 20 technicians and more than 150 staff. The company has strong technical capabilities and high-quality personnel teams.
Our company owns advanced manufacturing technologies, testing equipments. Moreover, our products have passed the ISO9001 Quality System Certification and Pressure Equipment Direction EC Certification. From design to delivery, in each procedure, products are controlled strictly in accordance with ISO9001(CQC) and the quality of products produced by our company is all insured by People's Insurance Company of China.
The company is specialized in production of a series of products such as knife style gate valves, various types of metal hard sealed ball valves, PTFE soft sealed ball valves, high temperature and pressure wrought steel ball valves and eccentric semispherical valves, three way valves(T-pattern, Y-pattern and L-pattern), API valves, forged steel valves, butterfly valve, globe valves, check valves and more, which are designed and manufactured according to international standards like GB, ANSI/API, JIS, DIN and etc. The main body material of produced valves.
Includes: WCB, WC1, WC6, WC9, CF8, CF8M, CF3, CF3M, 12CrMoV, 15Cr1Mo1V, LCB, LF and so on. The nominal diameter vary from 10mm to 1000mm and from 1/2" to 24". Operating pressure vary from 10MPa to 160MPa and 150Lb to 2500Lb. There are many driving modes including manual drive, helical wheel drive, electric drive, pneumatic power, hydraulic power, combined drive by electricity and liquid. All sorts of non-standard valves can be designed and produced in accordance with customers' request.
