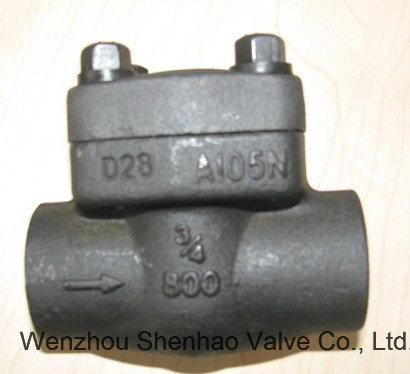

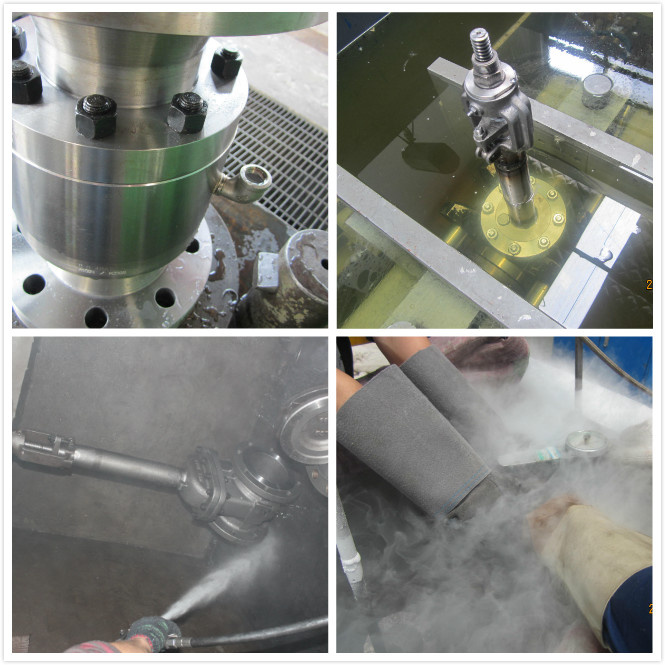

A105 Forged Check Valve with Flange or Thread Ends Conform to BS1868, API 6D, ASME B16.34, They are tested according to API 598, and marked as per MSS SP-25.
Construction is as follows:
- Full Port or Standard Port |
| - Piston Check |
| - Ball Check |

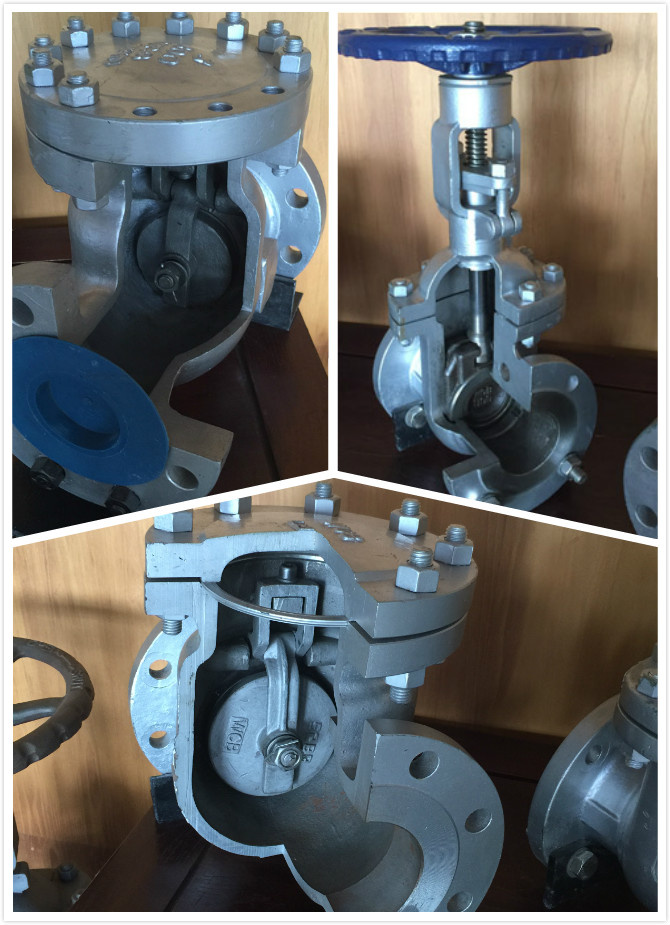

| - Swing Check |
| - Bolted Bonnet with spiral-would gasket, threaded and seal welded bonnet and threaded and pressure seal bonnet |
| - Spring available on request |
| - RF Ends to ASME B16.5 or B 16.47 A/B |
| - Butt Weld Ends to ASME B16.25 |
| - Socket Weld Ends to ASME B16.11 |
| -Screwed Ends to ASME/ANSI B1.20.1 |
Main Part & Materials
Part Names | Part Materials |
| Body | A105 | LF2 | F22 | F304 | F316 | F304L | F316L | B62 |
| Bonnet | A105 | LF2 | F22 | F304 | F316 | F304L | F316L | B62 |
| Disc/Ball/Wedge | A105 | SS304 | F22 | F304 | F316 | F304L | F316L | B62 |
| Stem | A105 | F304 | F6a | F304 | F316 | F304L | F316L | B62 |
| Seat/Seat Ring | 13%Cr | SS304 | 13%Cr | F304 | F316 | F304L | F316L | B62 |
| Packing | Graphite/PTFE |
| Gasket | SS304+Graphite/SS304+Graphite |
| Bolts/Nuts | B7/2H | L7/4 | B16/4 | B8/8 | B8M/8M | B8/8 | B8M/8M | B8M/8M |
| Suitable Medium | W.O.G etc. | HNO3, CH3OOH etc. | Sea Water etc. |
| Suitable Temperature | -29~425 °C | -46~340 °C | -46~340 °C | -196~427 °C | -196~427 °C | -196~427 °C | -196~427 °C | -29~220 °C |
Normal Pressure Rating
PN10~PN420, CLASS150~2500
Normal Size Range
DN15~D50, 1/2"~2"
