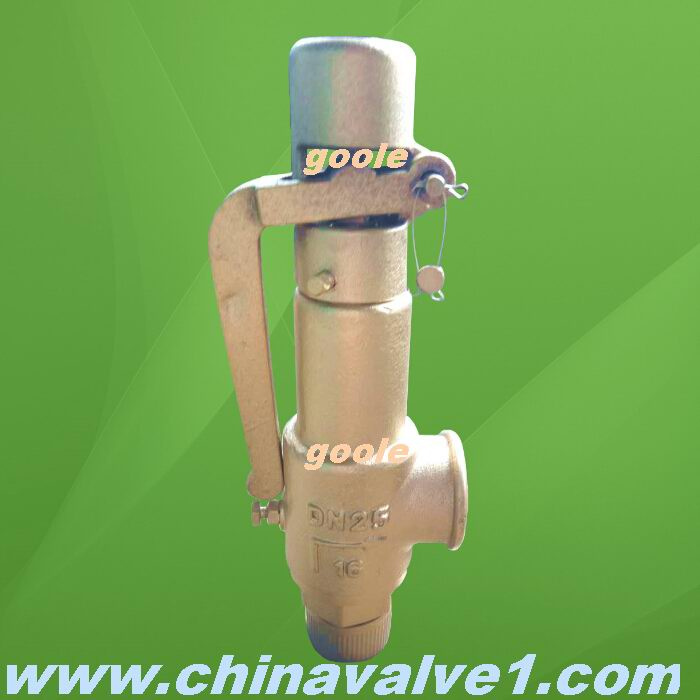

This A27H low lift type type safety valve is used for the equipment and pipeline of water, steam and other mediums what the working temperature are less than 200ºC.
A27H type are used for the equipment and pipeline of water, air, steam etc. Medium what the working temperature are less than 200ºC.A27Y type are used for the equipment and pipeline of the quality with corrode are less than 200ºC.Take for extra pressure devices.
1,A27W-10TSpring Loaded Low Lift Safety Valve
Parts Name |
Material |
Parts Name |
Material |
Bonnet, Cap |
KT30-6 |
Spring |
60SMn |
Body, Disc, Stem |
ZHMn58-2-2 |
Lever |
A3 or KT30-6 |
Adjusting Bolt, Locking Nut |
Brass |
|
|
2,A27W-10T Spring Loaded Low Lift Safety Valve Main Dimension Unit:mm
DN |
R |
do |
S |
H= |
L1 |
L |
G |
Weight
Kg |
15 |
1/2" |
16 |
30 |
176 |
54 |
35 |
1/2" |
1 |
20 |
3/4" |
20 |
34 |
189 |
59 |
37 |
3/4" |
1.2 |
25 |
1" |
25 |
40 |
221 |
70 |
42 |
1" |
1.7 |
32 |
11/4" |
31 |
48 |
247 |
83 |
45 |
11/4" |
2.1 |
40 |
11/2" |
37 |
56 |
269 |
89 |
55 |
11/2" |
3 |
50 |
2" |
48 |
66 |
305 |
104 |
67 |
2" |
4.7 |
65 |
21/2" |
62 |
86 |
362 |
116 |
76 |
21/2" |
9 |
80 |
3" |
73 |
98 |
383 |
125 |
84 |
3" |
11.5 |
