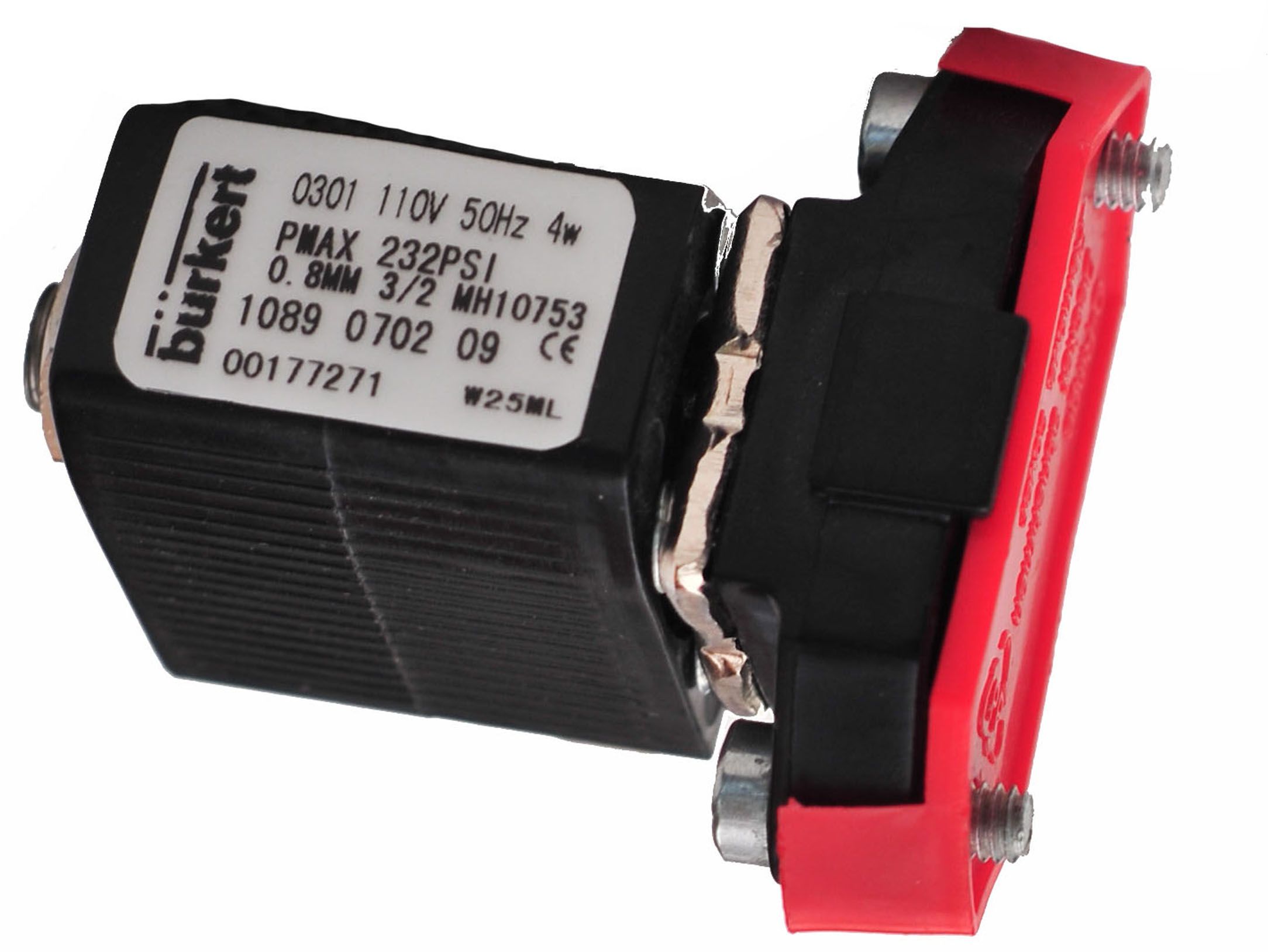

Atlas Copco 220V Burket Solenoid Valve Air Compressor Part
Compressor parts --- solenoid valve
220V solenoid valve atlas copco air compressor part
Products Name: solenoid valve
Apply : Screw air compressor
Part number: 2200599753/1089062157
Characteristic | 1.Pilot operated diaphragm structure with less power comsumption for long time working |
2.Applied to pressure system opened from 0.03 Mpa |
3.Life span can be over 1 million times |
Medium | Air, water etc. |
Temperature | NBR:-10°C to 80 °C |
EPDM:-10°C to 120 °C |
VITON:-10°C to 150 °C |
Pressure | 0.03-1.6Mpa |
Port size | 3/8'-1' |
Port thread | G.BSPT,BSP,NPT,PT |
Orifice | 12,15,20,25mm |
Voltage | DC-12V,24V |
AC-24V,120V,240V/60HZ,110V,220V/50HZ |
Tolerance | ±10% |
Coils | SA11B,9VA(AC),6W(DC) IP 65,100% ED |
S91B,22VA(AC),17W(DC) IP65,100% ED |
Special coils | Latching coil:DC6-24V as requested |
Material | Body- brass or stainless steel |
Seal- NBR,EPDM,VITON |
Amature tube-stainless steel 304 |
Plunger-stainless steel430F |
Stop-stainless steel 430F |
Springs-SS304 |
Shading rings- stainless steel 304 |
Business scope |
Mechanical Seal : | Temperature Sensor | Pressure Sensor |
Maintenance Kits | Solenoid Valve | Thermostatic Valve |
Air intake | Wheel Gear | Pressure Maintaining Valve |
Air Filter | Oil Separator | Oil Filter |
Oil Level Indicator | Circuit Board Master Control | Air intake valve |
Used air compressor | Air-end | Oil level indicator |
No. | Specification of Mechanical Seal | Type of the Lip | Coupling Sleeve | Model of the Machine |
InnerΦ *OuterΦ*H(mm) | InnerΦ *OuterΦ*H(mm) |
|
|
1 | 37*51*10 | Double | 30*37*38 | Atlas 15HP2901056100 |
2 | 40*62*8 | Double | 35*40*20 | Rodcomp 15HP B60 |
3 | 40*62*8 | Single | Rodcomp20-30HP B101 |
4 | 50*72*8 | Double | 45*50*25 | Rodcomp50HP B170 |
5 | 70*90*10 | Double | 60*70*40 /30/28 | Rodcomp75HP B201 |
6 | 70*90*10 | Double | 60*70*40 | CompAir75HP |
7 | 70*90*10 | Single | CompAir75HP |
8 | 35*50*8 | Single | 30*35*30 | CF50G |
9 | 35*50*12 | Double | 30*35*30 | GHH15-20HP CE55 |
10 | 35*47*7 | Single |
11 | 45*65*12 | Double | 40*45*30 | GHH70 Handpiece(QS70) |
12 | 45*60*8 | Single |
13 | 68*100*12 | Double | 60*68*45 | GHH100HP(CF110/CF128J) |
14 | 68*90*10 | Single |
15 | 68*90*10 | Double | 60*68*45 | GHH100HP(CF128LG) |
16 | 60*80*8 | Single | 50*60*40 | Fusheng 30HP |
17 | 60*80*8 | Double | 50*60*40 |
18 | 65*90*10 | Single | 55*65*45 | Fusheng 50HP |
19 | 65*90*10 | Double | 55*65*45 |
20 | 68*90*10 | Single | 60*68*45 | Fusheng 75-100HP |
21 | 68*90*10 | Double | 60*68*45 |
22 | 100*120*10 | Single | 85*100*55 | Fusheng 150HP |
23 | 68*90*10 | Double | 60*68*45 | ECOAIR 100HP |
24 | 45*65*8 | Single | 40*45*20 | BOGE30HP |
25 | 50*65*8 | Single | 45*50*25 | BOGE50HP |
