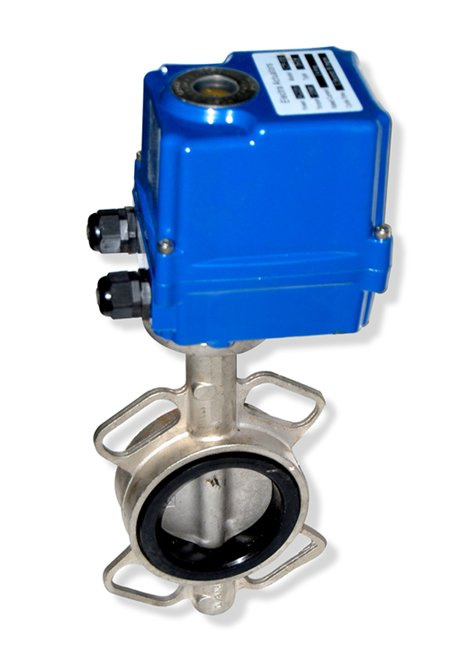

Actuator Operated Butterfly Valve, 220v (CTF-010)

Actuator Operated Butterfly Valve, 220v (CTF-010)
Price: Negotiable/Piece
Trade Terms: Air or Shipping
Min Order: 10/Piece
TF CTF-010 Electric valve

Suitable to:

Heating
HAVC
Water Treatment
Irrigation Equipment
Auto control systems
Water drinking equiments
The Circumstantce Pnematic valve can not worked

Characteristic and performance

Voltage: DC24V, AC 220V / 50Hz
Size: UPVC 2'' -6'', Stainless Steel, 1 1/4'' - 3''
Working pressure: 0 1.6Mpa
Temperature: 0-100 degree
Open/close time: 18-25 secons
Protection: IP67
Power: Alternating current: 14W
Working current: 500mA
Ourput torque: 100NM

Features:

New alloy material shell
Metal gear, large output torque
Active and Passive signals output
With manual function, with open/clsoe indicator.
Extra long life: 100000 times Min.
Protection: IP67
Prod Model: CTF-010
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Attribute (E. G.: Size): Value (E. G.: 12 Inches)
Material: Stainless Steel
Channel: Straight Through Type
Connection Form: Double Clamp
Structure: Double Clamp
Type: Double Clamp
Tianjin Tianfei High-tech Valve Co., Ltd was establised in 2002 year. One of the largest motorized valve manufacturers in China with 9 years production experience. Mainly products include "household class" and "industrial class" motorized valve. Also list actuators, IC card warm valve and water meters etc.


TF's motorized valve and actuators can be applied to Water Treatment, HVAC, Heating, air conditional system, Automatic control system, Drinking water, Air handling units and Fan coils and solar applications, etc.

All of my products has been approved CE and ISO9001 certification. The main market in America, Russia, United Kingdom and Southeast Asia.

Hope to find a way to establish long term cooperation relations with you in the near future.
