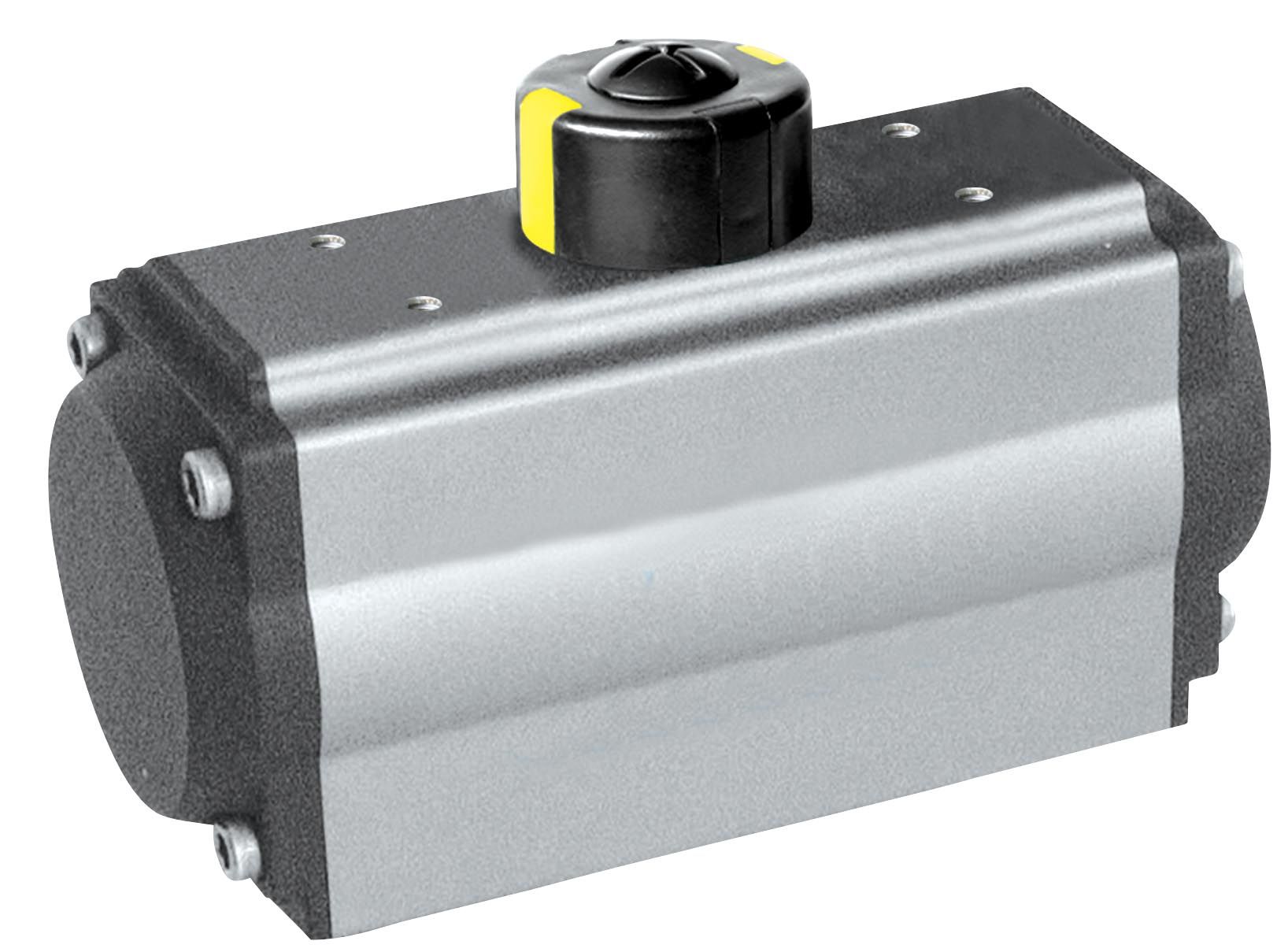

Yesun series Rack & Pinion Design Pneumatic Actuator:
16 models, The max. Output torque 3, 920Nm at 6 bar air supply. ISO5211/DIN3337 to match valve connection, Namur interface for the accessories. + 5° Stroke adjustment. Hard anodized treatment on actuator body and piston, over 200um epoxy coated on end caps which meet ASTM B117 qualification.
|
No. |
Description |
Qty |
Standards Material |
Protection |
Optional Material |
|
1 |
Indicator screw |
1 |
Plastic(ABS) |
|
|
|
2 |
Indicator |
1 |
Plastic(ABS) |
|
|
|
3 |
Spring clip |
1 |
Stainless steel(304) |
|
|
|
4 |
Metal washer |
1 |
Stainless steel(304) |
|
|
|
5 |
Outside washer |
1 |
polyoxymethylene |
|
|
|
6 |
Body |
1 |
Extruded aluminum alloy |
Hard anodized etc |
|
|
(6005-T5) |
|
7 |
O-ring(pinion top) |
1 |
NBR |
|
Viton/silicone |
|
8 |
Bearing(pinion top) |
1 |
polyoxymethylene |
|
|
|
9 |
Inside washer |
1 |
polyoxymethylene |
|
|
|
10 |
Travel stop |
1 |
Alloy steel(45#) |
|
|
|
11 |
Pinion |
1 |
Alloy steel(45#) |
Nickel plated |
Stainless steel |
|
12 |
Bearing (pinion bottom) |
1 |
NBR |
|
Viton/silicone |
|
13 |
O-ring(pinion bottom) |
1 |
polyoxymethylene |
|
|
|
14 |
Hole sealant |
2 |
NBR |
|
Viton/silicone |
|
15 |
O-ring(adjust screw) |
2 |
NBR |
|
Viton/silicone |
|
17 |
Nut (adjust screw) |
2 |
Stainless steel(304) |
|
|
|
18 |
Adjust screw |
2 |
Stainless steel(304) |
|
|
|
19 |
Piston |
2 |
Die-Cast aluminum(101A) |
Anodized/zinc galvanized |
Stainless steel |
|
20 |
Plate(piston) |
2 |
polyoxymethylene |
|
|
|
21 |
Bearing (piston) |
2 |
polyoxymethylene |
|
|
|
22 |
O-ring(piston) |
2 |
NBR |
|
Viton/silicone |
|
23 |
Spring |
0~12 |
Spring steel |
Dip coating |
|
|
24 |
O-ring(end cap) |
2 |
NBR |
|
Viton/silicone |
|
25 |
End cap |
2 |
Die-Cast aluminum(ADC12) |
Powder polyester painted etc |
|
|
26 |
Cap screw |
8 |
Stainless steel(304) |
|
|
|
27 |
Stop screw |
2 |
Stainless steel(304) |
|
|
|
28 |
Nut (stop screw) |
2 |
Stainless steel(304) |
|
|
