Home Valve Products Adf Ammonia Solenoid Valve for Ammonia Refrigerating System

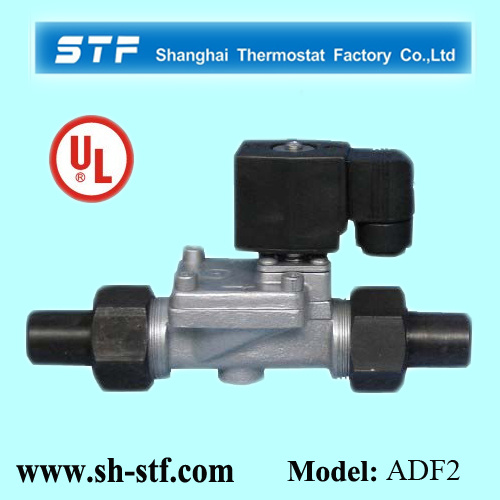

Adf Ammonia Solenoid Valve for Ammonia Refrigerating System

Adf Ammonia Solenoid Valve for Ammonia Refrigerating System
Price: Negotiable/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 10/Piece
Pay Type: L/C,T/T,Western Union

ADF Ammonia Solenoid Valve

General
The coils of ADF-M solenoid valve are hermetic by plastic .It features moistur proof ,shock proof anti-corrosive .All parts are made by stainless steel .It can be used for ammonia and Freon refrigerating system .Also it can be used for pneumatic, hydraulic and water supply system.
Characteristics
Suitable for ammonia, HFC, HCFC ,clean water, ≤4°viscosity machine oil
Coil type:
        AC: 24V, 36V, 110V, 220V
        DC: 12V, 24V
Opening pressure diff.
         AC: 0.05 – 21 bar
         DC: 0.05 – 17 bar
Max working pressure:30bar
Temperature of medium: -25ºC to 105ºC
Versions with UL/CUL approval can be supplied to order.
 Technical data

Model
OrificeConnect tubeForm of connectKv Flow rateDimensions(mm)

(mm) mm
m3/h(L)(W)(H)
ADF10MB1020×5welding-form1.918658136
ADF15MB1522×3.54.518658136
ADF20MB2028×4518658136
ADF25MA2532×3.5Flange-form9.5190145112
Prod Model: ADF Ammonia Solenoid Valve for ammonia refrigerati
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Media: Suitable for Ammonia, Hfc, Hcfc
Port Size: 10mm-25mm
DC: 12V, 24V
AC: 24V, 36V, 110V, 220V
Max Working Pressure: 30bar
Certificate: UL/cUL
Opening Pressure Diff.DC: AC:0.05-21bar
Opening Pressure Diff.AC: DC:0.05-17bar
Type: Pilot Operated
Connection Form: Flange
Valve Structure: Direct Action Diaphragm Structure
Application: Water Industrial Usage
Power Supply: AC&DC
Shanghai Thermostat Factory Co., Ltd. is a professional manufacturer of refrigeration and air condition auto-control unit. We have more than 60 years history in this industry.

In 1985, STF cooperated with ALCO to produce T series expansion valves. We were the only Chinese company having the mixed infusing technology in expansion valve production. In 1993, Shanghai Johnson Controller Co., Ltd. Was established by us and Johnson to produce YK series controllers. In 1996, FDF-M diaphragm solenoid valve was certificated as National Grade New Product. As a high-tech enterprise, we get innovation fund from the government.

Our main products include solenoid valves, thermostatic expansion valves, sight glasses, filter dryers, pressure controls, pressure difference controls, temperature controls. We have gained approval for our quality control system in relation to international standard ISO9001: 2008. UL/cUL\CE & CQC approval can be supplied to order.

Products are widely used by Carrier, YORK, Trane, Dunhambush, McQuay, Mammoth, HANBELL, RefComp, Midea, Gree etc. And exported to America, Europe, Australia, Africa, Korea, Hong Kong, Philippine and Taiwan.

We stick to the development of specialization, give the best solution of localization and keep advanced in technology by continual innovation. We are always pursuing to be a leading enterprise in our area.
