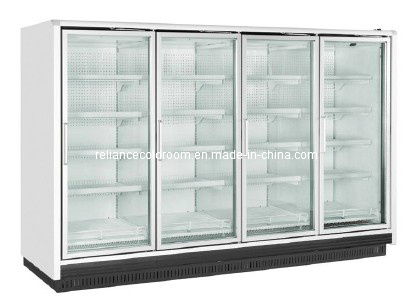

1. The unique anti-fog doors design is beneficial for product appearance for customers;
2. High evaporating temperature at -28C for system energy efficiency and safe presentation of frozen foods storage;
3. Energy saving & high efficiency options available (LED lighting, T8 lighting, ESM fan motor, Electronic expansion valve and Hot defrost);
4. Temperature range: <-18C.
| 2.0M Height Model |
|
|
|
|
|
| Model | LXWXH External Dimension/mm | Temperature Range/C | Effective Volume/m3 | Display Area/m3 | Weight/kg |
| DB-AGDF2D156 | 1562*945*2040 | ≤-18 | 1.60 | 1.58 | 380 |
| DB-AGDF3D235 | 2343*945*2040 | ≤-18 | 2.40 | 2.36 | 520 |
| DB-AGDF4D313 | 3124*945*2040 | ≤-18 | 3.20 | 3.15 | 700 |
| DB-AGDF5D390 | 3900*945*2040 | ≤-18 | 4.00 | 3.94 | 840 |
|
|
|
|
|
|
| 2.2M Height Model |
|
|
|
|
|
| Model | LXWXH External Dimension/mm | Temperature Range/C | Effective Volume/m3 | Display Area/m3 | Weight/kg |
| DB-AGDF2D156L | 1562*945*2220 | ≤-18 | 1.76 | 1.76 | 400 |
| DB-AGDF3D235L | 2343*945*2220 | ≤-18 | 2.64 | 2.63 | 550 |
| DB-AGDF4D313L | 3124*945*2220 | ≤-18 | 3.52 | 3.51 | 750 |
| DB-AGDF5D390L | 3900*945*2220 | ≤-18 | 4.40 | 4.39 | 890 |
