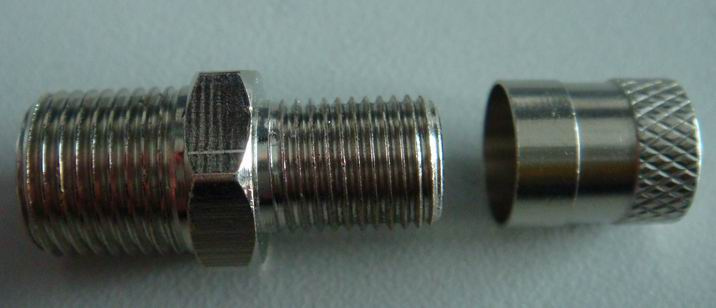

Air Control Filling Valve (1/8" NPT or 1/8" BSPT or other thread)

Air Control Filling Valve (1/8
Price: US $ 0.1/Piece
Trade Terms: FOB,CIF
Min Order: 500/Piece
Pay Type: L/C,T/T,Western Union
Air tank valve
Material brass with nickel plated
tempreture -40-+200
Pressure 2.5Mps


1/8" NPT or BSPT Schrader valve (brass materials)
Valve factory

1. Manufacture directly
2. Top quality and competitive price
3. Prompt delivery time
4. Good after-sale service
5. Brass materials with nickel plated
6. Sample order accept.
We can produce many kinds high quality shrader valve.
We can also produce according to the customer 's sample or drawings and the customer requirement.
As follows are the main techincal information
Serial
Number Test project TECHNICAL REQUIREMENT
1Sealing performance testUnder the pressure of 1.5 Mpa pressure, keep the 120 s, can not have bubbles to escape the water.
2The valve body surfaceNo crack
3Total durface 10+00.4
4Mouth cavity body core throat diameterΦ 3.82+00.12
5Mouth cavity 5 v1 body core threadPitch diameter: Φ 4.869+00.135
Small diameter: Φ 4.6+00.2
Depth: 7.8+00.8
6Hexagon nut threadPitch diameter: Φ 7.284+00.184
Small diameter: Φ 7.036+00.203
7Mouth 8 v1 external thread bodyMajor diameter: Φ 7.747-00.203
Pitch diameter: Φ 7.23-00.15
8Pipe bending height16.5± 1
9Outer diameter of the baseΦ 14-00.25
10The parts surface quality
Can not have oil, rust and other defects affect the using performance. Steel components should be anti-corrosion surface treatment.
Prod Model: 1/8" NPT or 1/8" BSPT
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Qingdao Donghong Industrial Technology Co., Limited/Ideal Chemical & Hardware Co., Ltd., located in Zhangjialou industrial park, jiaonan city, Qingdao, Shandong Province of China.

We are a leading manufaturer being specialized in Motorcycle and wheelbarrow tires and tubes (including natural rubber and butyl rubber), and some kinds of wheelbarrows and parts.

We adopt Hi-tech production line, new technology and testing equipments. ISO 9001: 2008 quality management system is carried out. So far, our products have been exported to more than 60 countries and regions in South America, Southeast A sia, the Middle East, U. S. A, Australia etc...

Welcome guests from domestic and foreign countries to visit our factory. Establish sincere business relationship and get win-win future.

Why Choose Us?

1. Qingdao Donghong Industrial Technology Co., Limited/Ideal Chemical & Hardware Co., Ltd., is the one of biggest specialized manufacturer of motorcycle tyres, and inner tube, wheelbarrow tires and inner tube, as well as other rubber product.

2. We can assure you of both the price and quality are the best. As a manufacturer, having our own tyre factory, build in 2011. We have more than 4 years experience in this field.

3. Prompt Delivery time: We are located in the west coast of Qingdao, there is only 120km to Qingdao Port, so we are with superior geographical and convenient transportation. One day we can produce 3000 pieces tires and 15000 PCS inner tube.

4. The quality is warranty. The company has throughISO9001-2008International Quality System certificate and EMARK, INMETRO, CIQ, SONCAP, SGS certificate. So the quality is warranty.

5. Moreover, we can satisfy your large and urgent order There are more than 200 workers and including 40 technicians, covering the land of 21000 sq meters. We can supply the product as your design.

6. We are a company with strong strength, we not only have the Alibaba platform being a golden supplier, but also have Made-in-China.

7. Our products are well received at home and abroad, Mainly exported to more than 60 countries and regions in Asia, south America, Europ, Middle East, South East Asia, Africa.
