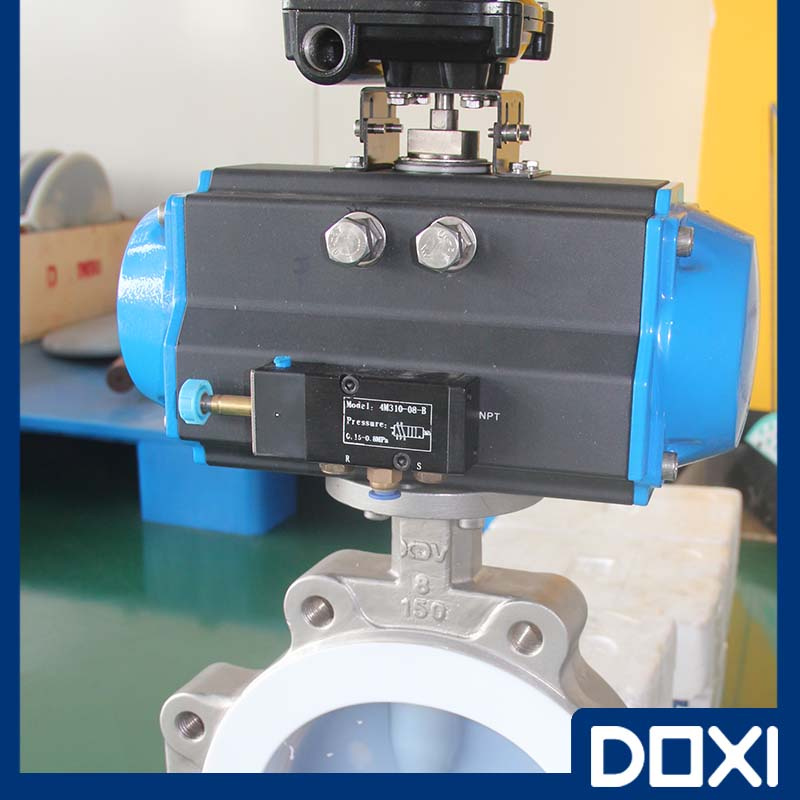

Air-Operated Stainless Steel Butterfly Valve for Chemical Industry
| Price: |
US $ 60-70/Piece |
| Trade Terms: |
FOB,CIF,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
T/T |
DOXI VALVE
Lined Butterfly Valve
DOXI ® Butterfly Valves is a good choice for chemical solution!

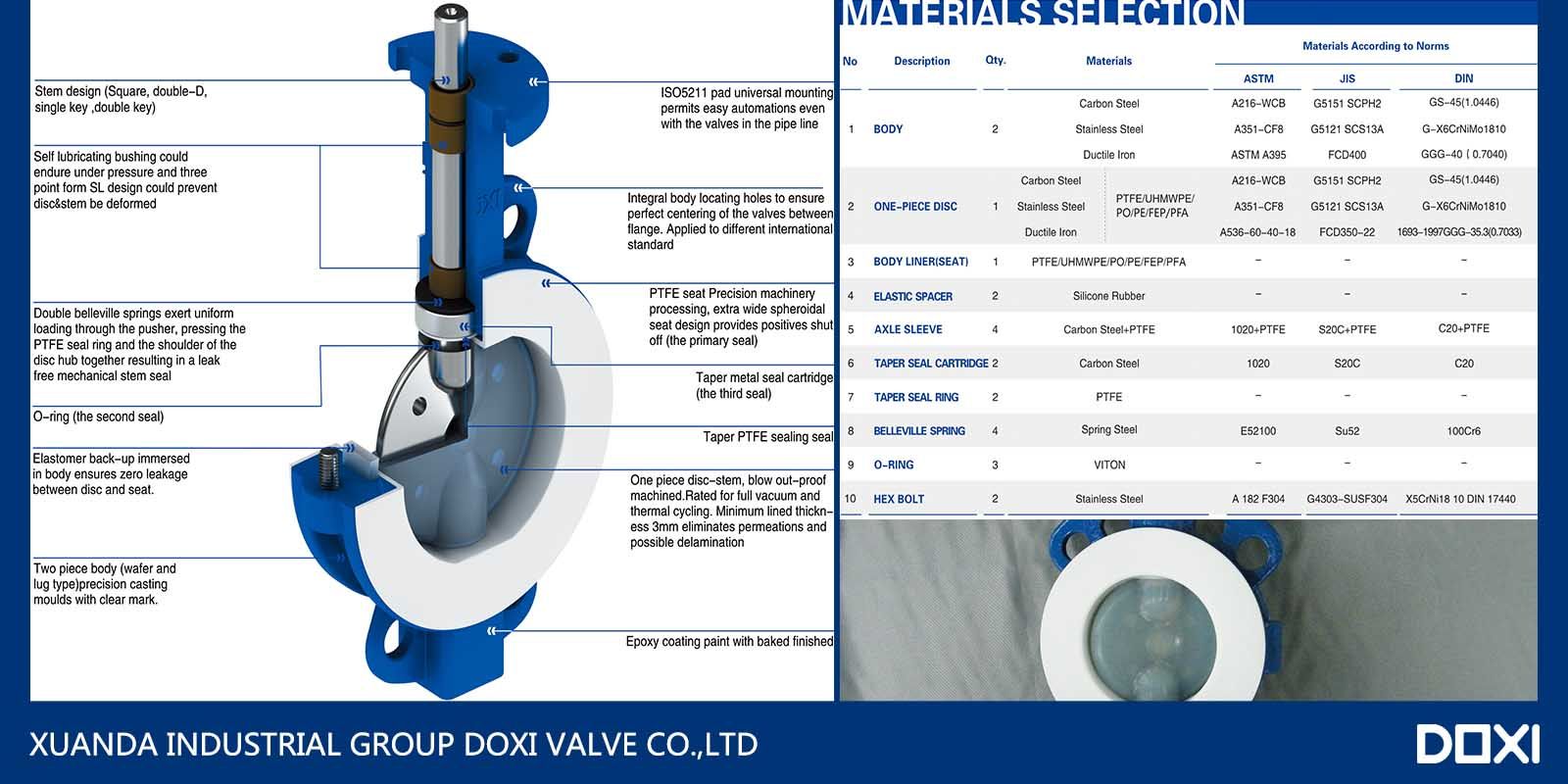

Its special feature is the seat ring design. The interference between the disc and the raised central area of the seat ring shuts off the flow completely. The resilient elastomeric seat cushion ensures reliable shut-off for the life of the valve.
The upper and lower positions of the seal ring, where the stem passes through, use a triple seal design to prevent leakage to the atmosphere.
Triple Seal Prevent Leakage
Primary Seal: Seat.
Secondary Seal: O ring
Tertiary Seal: Taper PTFE seal ring
|
WAFER TYPE |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
DN |
NPS |
Dimensions in mm |
|
ASME B16.5 |
JIS B2212 10K |
DIN2532 PN10 |
Weight |
CV |
Torque |
|
[mm] |
[in] |
A |
B |
C |
D |
E |
F |
G |
H |
K |
M |
N-Φ |
L |
ISO5211 |
ΦD |
N1-Φ1 |
ΦD |
N1-Φ1 |
ΦD |
N1-Φ1 |
[kg] |
[N @ m] |
|
50 |
2 |
77 |
57 |
12.6 |
23 |
115 |
60 |
/ |
/ |
11 |
12 |
4-Φ10 |
52 |
F07 |
120.7 |
4-19 |
120 |
4-19 |
125 |
4-18 |
2.2 |
210 |
25 |
|
65 |
2.5 |
77 |
57 |
12.6 |
23 |
115 |
60 |
/ |
/ |
11 |
12 |
4-Φ10 |
52 |
F07 |
139.7 |
4-19 |
140 |
4-19 |
145 |
4-18 |
2.2 |
210 |
25 |
|
80 |
3 |
92 |
70 |
12.6 |
26 |
150 |
86 |
/ |
/ |
11 |
14 |
4-Φ10 |
46 |
F07 |
152.4 |
4-19 |
150 |
8-19 |
160 |
4-18 |
4.2 |
410 |
50 |
|
100 |
4 |
92 |
70 |
15.9 |
26 |
160 |
115 |
/ |
/ |
14 |
14 |
4-Φ10 |
52 |
F07 |
190.5 |
8-19 |
175 |
8-19 |
180 |
8-18 |
6.4 |
710 |
80 |
|
125 |
5 |
92 |
70 |
15.9 |
26 |
175 |
130 |
/ |
/ |
14 |
17 |
4-Φ10 |
56 |
F07 |
215.9 |
8-22 |
210 |
8-23 |
210 |
8-18 |
7.9 |
1150 |
90 |
|
150 |
6 |
115 |
89 |
22.2 |
28 |
192 |
145 |
/ |
/ |
18 |
25 |
4-Φ14 |
56 |
F10 |
241.3 |
8-22 |
240 |
8-23 |
240 |
8-23 |
10.4 |
1750 |
130 |
|
200 |
8 |
115 |
89 |
22.2 |
28 |
220 |
175 |
/ |
/ |
18 |
35 |
4-Φ14 |
60 |
F10 |
298.5 |
8-22 |
290 |
12-23 |
295 |
8-23 |
17 |
3550 |
180 |
|
250 |
10 |
140 |
108 |
31.8 |
35 |
275 |
215 |
/ |
/ |
24 |
35 |
4-Φ14 |
68 |
F10 |
362 |
12-25 |
355 |
12-25 |
350 |
12-23 |
25 |
5100 |
400 |
|
300 |
12 |
140 |
108 |
31.8 |
35 |
310 |
250 |
/ |
/ |
24 |
35 |
4-Φ14 |
78 |
F12 |
431.8 |
12-25 |
400 |
16-25 |
400 |
12-23 |
34.5 |
8870 |
610 |
|
350 |
14 |
210 |
165 |
38 |
55 |
360 |
285 |
33 |
10 |
/ |
/ |
4-Φ22 |
78 |
F14 |
476.3 |
20-1 3/8 |
445 |
16-25 |
460 |
16-23 |
75 |
9200 |
850 |
|
400 |
16 |
210 |
165 |
38 |
55 |
395 |
320 |
33 |
10 |
/ |
/ |
4-Φ22 |
102 |
F14 |
539.8 |
20-1 1/4 |
510 |
16-27 |
515 |
16-27 |
110 |
14500 |
1170 |
|
450 |
18 |
210 |
165 |
44 |
65 |
435 |
360 |
38.5 |
14 |
/ |
/ |
4-Φ22 |
114 |
F14 |
577.9 |
16-1 1/4 |
565 |
20-27 |
/ |
/ |
130 |
20100 |
1560 |
|
500 |
20 |
210 |
165 |
44 |
65 |
455 |
385 |
38.5 |
14 |
/ |
/ |
4-Φ22 |
127 |
F14 |
635 |
16-1 1/8 |
620 |
20-27 |
620 |
20-27 |
190 |
22000 |
1820 |
|
600 |
24 |
210 |
165 |
55 |
75 |
525 |
445 |
49 |
16 |
/ |
/ |
4-Φ22 |
154 |
F14 |
749.3 |
12-1 1/8 |
730 |
24-33 |
725 |
20-30 |
280 |
31000 |
2990 |
| Prod Model: |
D971 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Body Material: |
Wcb/CF8 |
| Seat Material: |
PTFE |
| Disc: |
Wcb/CF8+PFA |
| Work Pressure: |
Low Pressure (',Pn<1.6mpa) |
| Material Of Seal Surface: |
Soft Sealed |
| Connection Form: |
Wafer |
| Structure: |
Centre Sealing |
| Seal Form: |
Auto Sealed |
| Working Temperature: |
Medium Temperature (',120??C
|
| Application: |
Water Industrial Usage |

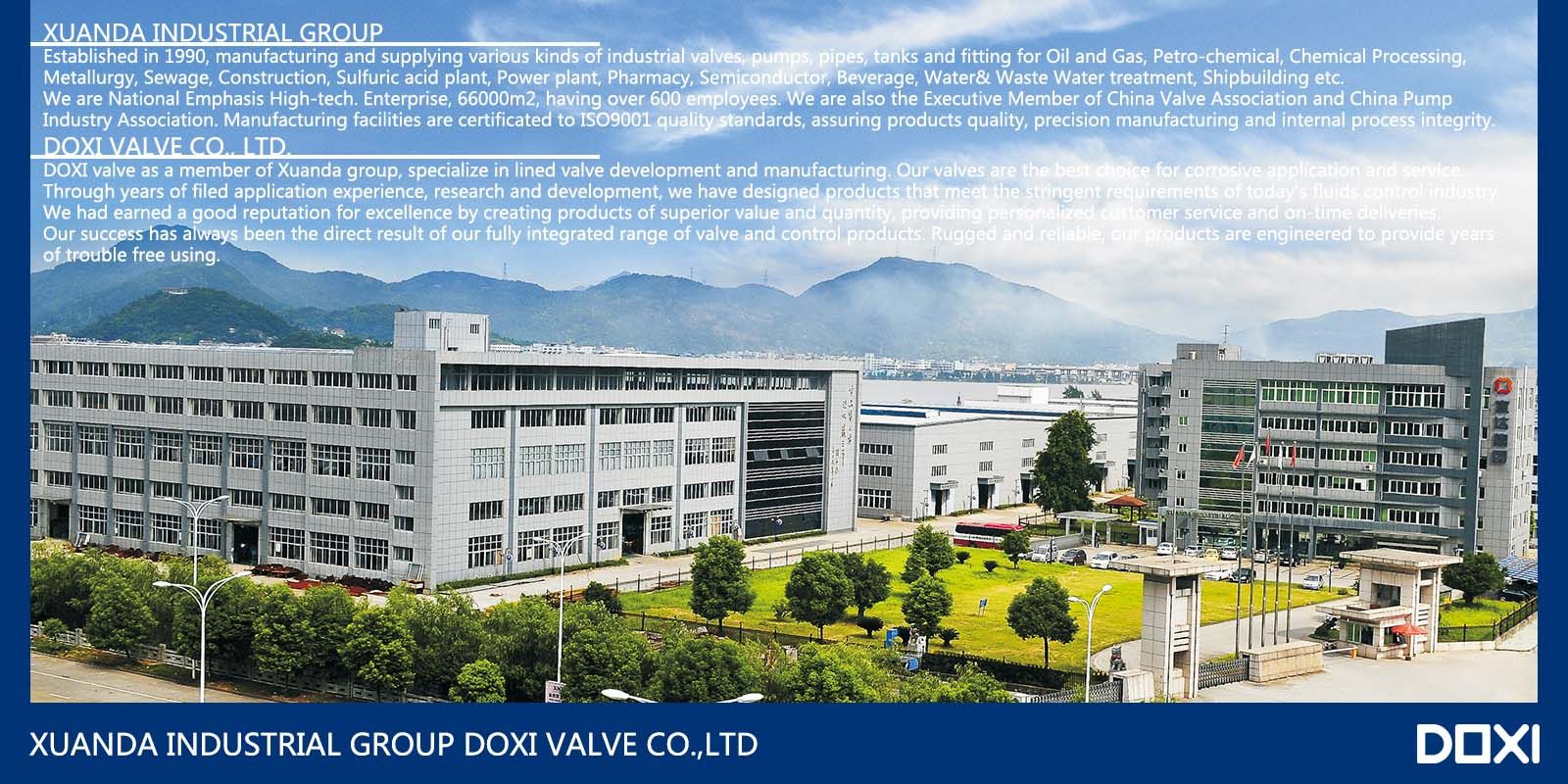

XUANDA INDUSTRIAL GROUP
