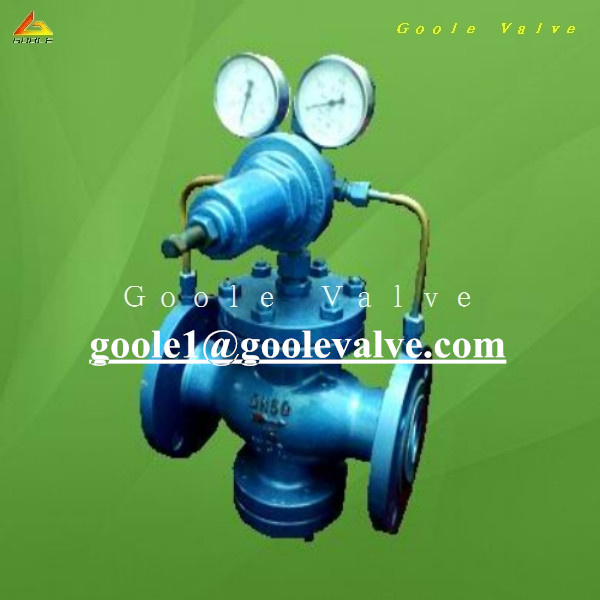

Air Pressure Reducing Valve (GAYK43F/H)
Price: |
US $ 1/Piece |
Trade Terms: |
FOB,CIF,EXW |
Min Order: |
1/Piece |
Pay Type: |
T/T,Paypal,Western Union |
Structural characteristic and purpose.This series reducing valve is pilot piston type reducing valve, mainly composed of main valve and pilot valve. The main valve consists of valve seat, main valve disc, piston, cylinder sleeve, and spring. The piston valve consists of valve seat, valve flap, membrane, spring and adjusting spring. Set the outlet pressure through adjusting spring, sense the change of pressure of outlet with membrane, adjust the flow area of throttling part of main valve through open and close of pilot valve and drive the piston, to realize the function of reducing and regulating valve. The product is mainly applied on gas piping, such as air, nitrogen, oxygen, hydrogen, liquefied gas, and natural gas.Main Technical Parameters&Indexes Of Performance.Nominal pressure | PN1.6Mpa | PN2.5Mpa | PN4.0Mpa | PN6.4Mpa | PN10.0Mpa | PN16.0Mpa |
Tested pressure of shell | 2.4Mpa | 3.75Mpa | 6.0Mpa | 9.6Mpa | 15.0Mpa | 24.0Mpa |
Sealing test pressure | 1.6Mpa | 2.5Mpa | 4.0Mpa | 6.4Mpa | 10.0Mpa | 16.0Mpa |
Maximum upstream pressure | 1.6Mpa | 2.5Mpa | 4.0Mpa | 6.4Mpa | 10.0Mpa | 16.0Mpa |
Pressure range of outlet | 0.1-1.0Mpa | 0.1-1.6Mpa | 0.1-2.5Mpa | 0.5-3.5Mpa | 0.5-3.5Mpa | 0.5-4.5Mpa |
Minimum differential pressure | 0.15Mpa | 0.15Mpa | 0.2Mpa | 0.4Mpa | 0.8Mpa | 1.0Mpa |
Medium | Gas, air, oxygen, nitrogen, etc. |
Operating temperature | 80 |
*the shell test does not include membrane and top cover. Material Of Main ComponentName of component | Material of component |
Valve body, valve cover, seat cover | WCB/FCB |
Valve seat, valve disc | 2Cr13/304 |
Cylinder sleeve | 25 (hard chrome plating)/304 |
Piston | 2Cr13 /copper alloy |
Piston ring | Alloy cast iron/ polyphenyl |
Pilot valve seat, pilot valve rod | 2Cr13/304 |
Membrane | 1Cr19Ni9Ti |
Spring of main valve and pilot valve | 50CrVA |
Adjusting valve | 60Si2Mn |
Sealing gasket (X/F model) | Rubber/PTFE |
Pilot valve body, pilot valve cover | 25/304 |
Connecting Dimension. DN | External Dimension |
L | H | H1 |
1.6/2.5Mpa | 4.0Mpa |
15 | 160 | 180 | 290 | 90 |
20 | 160 | 180 | 300 | 98 |
25 | 180 | 200 | 300 | 110 |
32 | 200 | 220 | 300 | 110 |
40 | 220 | 240 | 320 | 125 |
50 | 250 | 270 | 320 | 125 |
65 | 280 | 300 | 325 | 130 |
80 | 310 | 330 | 365 | 160 |
100 | 350 | 380 | 365 | 170 |
125 | 400 | 450 | 475 | 200 |
150 | 450 | 500 | 475 | 210 |
200 | 500 | 550 | 515 | 240 |
250 | 650 | 560 | 290 |
300 | 800 | 705 | 335 |
350 | 850 | 745 | 375 |
400 | 900 | 780 | 405 |
450 | 900 | 730 | 455 |
500 | 950 | 835 | 465 |
DN | External Dimension. |
L | H | H1 |
6.4Mpa | 10.0/16.0Mpa |
15 | 180 | 180 | 300 | 100 |
20 | 180 | 200 | 310 | 105 |
25 | 200 | 220 | 310 | 120 |
32 | 220 | 230 | 310 | 120 |
40 | 240 | 240 | 335 | 135 |
50 | 270 | 300 | 335 | 135 |
65 | 300 | 340 | 340 | 140 |
80 | 330 | 360 | 380 | 170 |
100 | 380 | 380 | 185 |
125 | 450 | 490 | 215 |
150 | 500 | 490 | 225 |
200 | 550 | 535 | 260 |
250 | 650 | 580 | 310 |
300 | 800 | 725 | 355 |
350 | 850 | 765 | 395 |
400 | 900 | 800 | 435 |
500 | 950 |
| 855 | 495 |
Prod Model: |
GAYK43F/H |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Model No: |
Gayk43f/H |
Size: |
1/2"-20" |
Category: |
Pressure Reducing Valve |
Connecting Type: |
Flange |
Material: |
C.S |
Medium: |
Air and Other Industrial Gas. |
Working Temperature: |
Below 80 Deg C |
Usage: |
Pressure Reducing |
Application: |
Gas Pipelines. |
