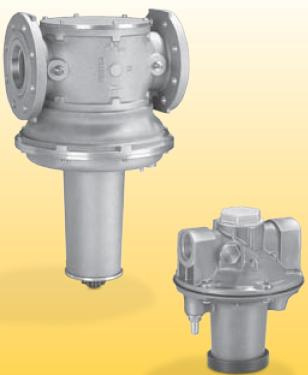

Air Regulator Valve

Air Regulator Valve
Price: Negotiable/Piece
Trade Terms: FOB
Min Order: 10/Set
Pay Type: L/C,T/T
For maintaining a constant air-gas mixture
For continuous and step-by-step burner control
High regulating precision

Specification:
Operation Limits
Type of Gas: Natural, LPG, clean coke oven gas and clean biogas
Ambient temperature range: GIK ½ " to 2" = -4 ° F to 158 ° F (-20 ° C to 70 ° C)
GIK 2½ " to 4" = 5 ° F to 140 ° F (-15 ° C to 60 ° C)
Maximum inlet pressure: 3 psig (200 mbar)
Maximum operational inlet-to-outlet differential pressure: 1.5 psig (100 mbar)
Combustion air loading pressure: 0.2" to 48" WC (0.5 to 120 mbar)
Outlet pressure range: 0.1" to 47.6" WC (0.2 to 119 mbar)
Adjusting range at min. Flow: GIK ½ " to 2" = -1.2" to +1.2" WC (-3 to +3 mbar)
GIK 2½ " to 4" = -0.8" to +0.8" WC (-2 to +2 mbar)
Connection for Control line: GIK ½ " to 2" = ¼ " NPT
GIK 2½ " to 4" = ½ " NPT

Application:
GIK Regulators hold constant gas/air ratios as cross- connected ratio regulators with modulating or high-low control of nozzle mix burners or as zero governors on premix systems.
When used as cross-connected regulator for nozzle mix burners, GIK regulator provide outlet gas pressure at a 1: 1 pressure ratio with air loading. For leaner or richer low fire ratios, the bias spring can be adjusted to provide an outlet pressure up to 1.2" WC (3 mbar) higher or lower than the loading pressure.
For repeatable control of extremely small low fire inputs (frequently, only the pilot), the GIK...B Regulator, with a fixed internal Bypass (1/2" to 2"), is recommended. When the system drives to low fire, the regulator valve closes completely, and the low fire gas flow is controlled accurately by precision-machined internal orifice.
Typical air and gas piping layouts for nozzle-mixing and premix systems are shown in the pictures "Nozzle Mix Burners" and "Premix Burners". These schematics contain only those components related to the gas-air ration control system. A complete combustion system must also contain a suitably-sized combustion air source and safety-related components, such as safety shut off valves, air and gas pressure switches and flame supervisor components.
Wuxi clarence international trading Co., Ltd, is a high-tech company specializing in international market, research and development of various kinds of metallurgical heat treatment equipment (Cover the non-ferrous and ferrous metal industry), company use science and technology as the guide, gather various talents in the industry, introduce and absorb the latest international technology idea for design and manufacture, professional design, produce various kinds of metallurgical heat treatment automatic production line, large gas furnace. We are already provide many complete sets of production line to the international market.

The main product of the company:

Industrial furnace: Heating or heat treatment walking beam furnace, Pusher furnace, Soaking furnace, Tunnel furnace, Chamber furnace, Protective atmosphere furnace, Electric muffle furnace, Steel pipe walking beam tempering production line, Steel pipe bright heat treatment furnace, Spheroidizing furnace, Plate normalizing furnace, Aluminum melting furnace, Round heating furnace, Trolley furnace, Bell-type bright annealing furnace, Roasting furnace, Carburizing furnace, Nitriding furnace, Multi-purpose furnace, Roller hearth furnace, Mesh belt furnace, Roller furnace, Bell type furnace, Rotary hearth furnace, Pit type furnace, etc.

Plate processing:

Cold rolling production line, Hot-DIP galvanizing production line, Galvalume production line, Annealing production line, Color coating production line, Hot-DIP tinning production line, Tension leveling production line, Slitting production line, Pickling production line, Degreasing production line, Galvanized structural parts production line, Automation control systems.

Pipe processing:

Perforation unit, Straightening Machine, Crosscut unit, Slitting machine, Cold bed

Company produces various types of gas, oil conventional burner, Regenerative burner, Efficient self-preheating burner, all kinds of special valves, Intelligent dynamic atmosphere control device and electrical automation control system, Software development, all has the international advanced level, due to its excellent value for money, it has been the adoption choice by many design institutes and professional company, it has become a well-know product.

The company also employed a number of old experts from the metallurgical enterprises engaged in technical work that has long term experience in this industry, involved in the management of the company's production, to ensure the quality of our projects and to maximize the economic benefits.

We warmly welcome friends from all over the world making cooperate progress with us
