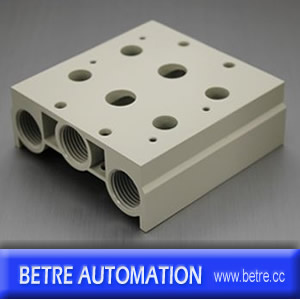

Airtac 4V & SMC SY type Valve manifold base/Manifold block
Material: Aluminum alloy
Size: M5, 1/8", 1/4", 3/8" 1/2"
Number of Connector: 1-16F
Series:
4M100-F: For Airtac type 4V100 series solenoid valve
4M200-F: For Airtac type 4V200 series solenoid valve
KOGENEI-100-F: For KOGENEI type solenoid valve
KOGENEI-180-F: For KOGENEI type solenoid valve
SS5Y3-F: For SMC type SY3000 series solenoid valve
SS5Y5-F: For SMC type SY5000 series solenoid valve
SS5Y7-F: For SMC type SY7000 series solenoid valve
SS5Y9-F: For SMC type SY9000 series solenoid valve
VF-F: For SMC type VF series solenoid valve
MVSC: For Mvsc series solenoid valve
| Aluminum Alloy | Model | Stations | Manifold Valve |
| SY3000 Valve Manifold | SS5Y3-20-01 | 1 station | for SMC Valve SY3000 series |
| SY5Y3-20- | 2-20 stations |
| SY5000 Valve Manifold | SS5Y5-20-01 | 1 station | for SMC Valve SY5000 series |
| SY5Y5-20- | 2-20 stations |
| SY7000 Valve Manifold | SS5Y7-20-01 | 1 station | for SMC Valve SY7000 series |
| SS5Y7-20- | 2-20 stations |
| SY9000 Valve Manifold | SS5Y9-23-01 | 1 station | for SMC Valve SY9000 series |
| SS5Y9-23- | 2-20 stations |
| SY3000 Valve Manifold | SS5Y3-41-01 | 1 station | for SMC Valve SY3000 series |
| SS5Y3-41- | 2-20 stations |
| SY5000 Valve Manifold | SS5Y5-41-01 | 1 station | for SMC Valve SY5000 series |
| SS5Y5-41- | 2-20 stations |
| SY7000 Valve Manifold | SS5Y7-41-01 | 1 station | for SMC Valve SY7000 series |
| SS5Y7-41- | 2-20 stations |
| SYJ5000 Valve Manifold | SS5YJ5-20-01 | 1 station | for SMC Valve SYJ5000 series |
| SS5YJ5-20- | 2-20 stations |
| SYJ7000 Valve Manifold | SS5YJ7-20-01 | 1 station | for SMC Valve SYJ7000 series |
| SS5YJ7-20- | 2-20 stations |
| KOGANEI Valve Manifold | KOGANEI 110M- | 2-20 stations | for KOGANEI Valve 110Series |
| KOGANEI 180M- | 2-20 stations | for KOGANEI Valve 180Series |
| Airtac Valve Manifold | 4V100M--F | 2-20 stations | for Airtac Valve 4V110 |
| 4V200M--F | 2-20 stations | for Airtac Valve 4V210 |
| 4V300M--F | 2-20 stations | for Airtac Valve 4V310 |
| 4V400M--F | 2-20 stations | for Airtac Valve 4V410 |
| VF Valve Manifold | VV5F3- | 2-20 stations | for SMC Valve VF3130 |
| VV5F5- | 2-20 stations | for SMC Valve VF5120 |
| MINDMAN Valve Manifold | MVSC260- | 2-20 stations | for MINDMAN Valve MVSC-260 |
| Airtac Type Blanking Plate | P-4V100MR2 | with seal and screws | for Airtac Valve 4V110 Manifold |
| P-4V200MR2 | with seal and screws | for Airtac Valve 4V210 Manifold |
| P-4V300MR2 | with seal and screws | for Airtac Valve 4V310 Manifold |
| SMC Type Blanking Plate | SY3000-26-9A | with seal and screws | for SY3000 Valve Manifold |
| SY5000-26-20A | with seal and screws | for SY5000 Valve Manifold |
| SY7000-26-22A | with seal and screws | for SY7000 Valve Manifold |
| SY9000-26-1A | with seal and screws | for SY9000 Valve Manifold |
*Note: Can be customized according to customer requirements
Features:
1). It is available to integrate the direction control valves of the same series to form value group to save space and cost.
2). It is easy to examine ehrn there are faults owning to the unified air intake and exhaust and unified wiring.
3). Flexible combination and strong expansion capability can make any combinationor or expansion of the number of direction control valves that are connected.
Specifications:
1). Fluid: 40 micron filtered air
2). Temperature: 5~50º C
Maintenance Notice:
1. Be sure to check up the valve before installation.
2. Before installation, please confirm the voltage connection and direction of the air flow are right.
3. Notice to be dustproof. It is better to install a silencer or speed control silencer in front of solenoid valve.
4. Metal grain, dust and oil stain in pipes and fittings must be washed neatly before connected.
