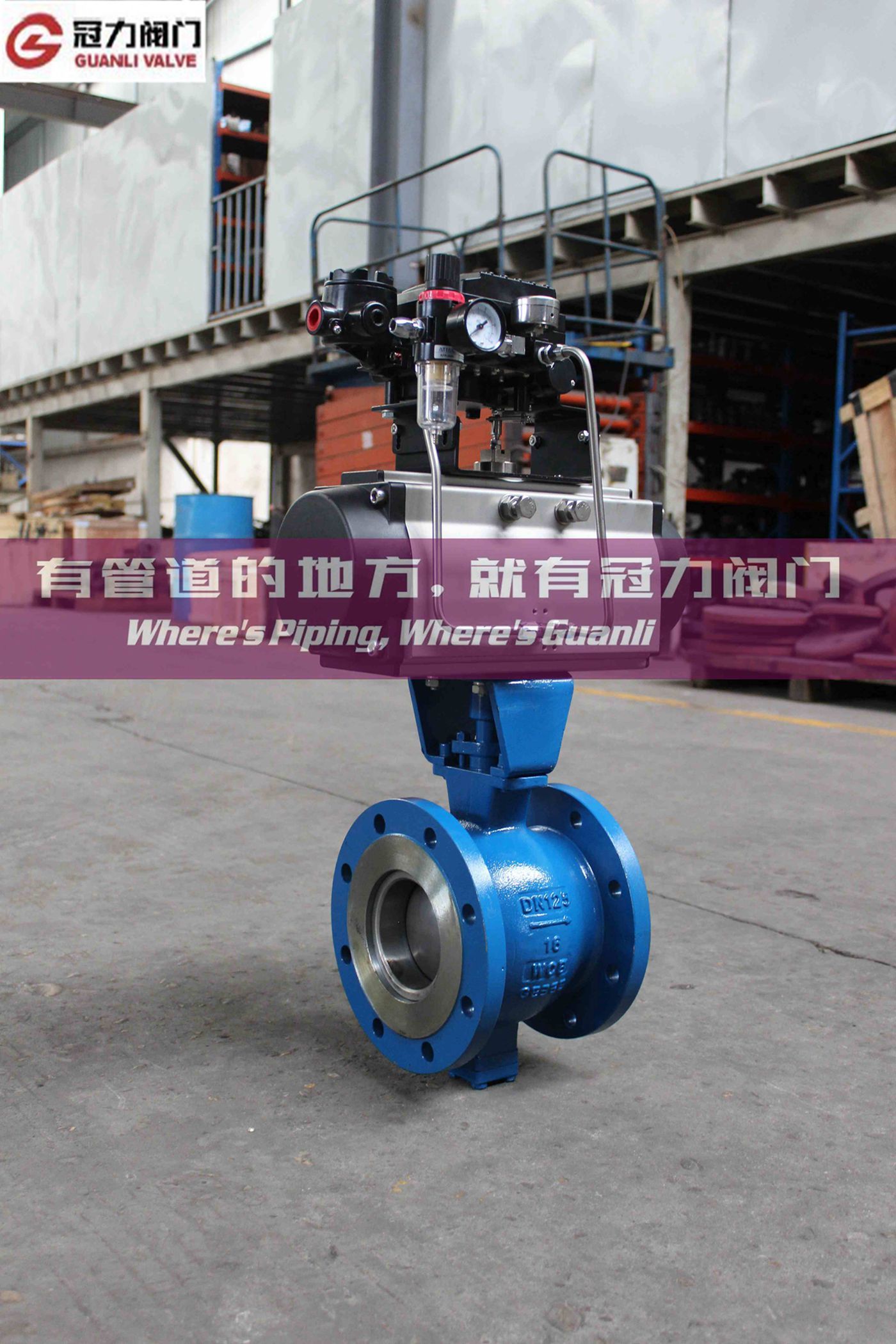

All Ss316 Ss304 V Segment Ball Valve

All Ss316 Ss304 V Segment Ball Valve
Price: US $ 65.215-74.245/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: T/T,Western Union
All SS316 SS304 V Segment Ball Valve

New product, form a complete set of knife gate valve

1. Connection:     Wafer type
2. Body material: WCB & CF8 & CF8M
3. Ball material:    SS304 or SS316
4. Seat:                 SS304+STL or SS316
5. O-ring seal:       Viton
6. Spring:               SS316
7. Packing:             PTFE
8. Bearing:             304+PTFE or 316+PTFE

STRUCTURAL FEATURES:

1. The V type ball valve adopts disc or cylindrical spring loaded moveable metal seat structure provided with compensation character, so no problems such as blocking or release of V type ball valve and seat will occur. The sealing is reliable and the service life is long.

2. The V type notch of the ball plays the shearing function between the metals, so the valve is especially suitable for media of high viscosity, containing fiber, solid granules slurry and paper pulp.

3. According to different service conditions, the metal seated ball and seat sealing face can be subjected to various advanced technologies such as nickel-base alloy(HRC≥60)spray welding, tungsten cobalt alloy(HRC≥70)HVOF coating, suitable for various server service conditions.

4. When the valve is fully opened, the flow is high and pressure loss is low, and the media will not deposit in the middle cavity of valve. The valve has flow characteristics of equal percentage, and the V type ball valve for control purpose has a wide adjusting range with the maximum adjusting ratio of 100:1. In addition, the valve is also provided with precise control and reliable positioning functions.

5. Compact structure, strong adaptability. The V type ball valve for cut-off purpose has good sealing performance and can replace various valves such as gate valve, globe valve, ordinary ball valve and etc.
The connection ends of V type ball valve can be wafer or flange.


1. Construction is as follows:

- "V" or "O" Port
- One Piece Body
- Side Entry
- One piece body or Bolted Bonnet with spiral-would gasket
- Fire Safe Design
- Anti-static Design & Blow-out proof stem
- Butt Weld Ends to ASME B16.25
- Flanged Ends to ASME B16.5
- With Top Mounting Flange for Actuator

2. Main Part & Materials
Part NamesPart Materials
BodyWCBLCBWC6CF8CF8MCF3CF3M
BonnetWCBLCBWC6CF8CF8MCF3CF3M
BallA105SS304F22SS304SS316SS304LSS316L
StemA105F304F6aF304F316F304LF316L
Seat/Seat RingPTFE/PPTFE/NYLON/DEVLON/PEEK OR METAL
PackingGraphite/PTFE
GasketSS304+Graphite/SS304+Graphite
Bolts/NutsB7/2HL7/4B16/4B8/8B8M/8MB8/8B8M/8M
Suitable MediumW.O.G etc.HNO3, CH3OOH etc.
Suitable Temperature-29~425 °C-46~340 °C-46~340 °C-196~427 °C-196~427 °C-196~427 °C-196~427 °




Prod Model: GLVQ641
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rate: Class150, Pn16
Size: 2inch to 16inch
Body: CF8
Ball: Ss304,Ss316
Seat: PTFE, Metal
Material: Stainless Steel
Channel: Straight Through Type
Structure: Flexible Ball Valve
Type: V Type Ball Valve
Application: Household Usage
Connection Form: Flange Type
Nominal Pressure: Pn16
Established in 1992 and re-established in 2004, Zhejiang Guanli Valve Co., Ltd. Covers an area of 7, 500 square meters located at Dongou Industrial Zone in Wenzhou. Our company is located in Wenzhou, only 500 kilometers from Shanghai Pudong Airport.
We are a professional manufacturer of industry valves according to API, DIN, JIS standards. Our products include knife gate valves, ball valves, gate valves, globe valves, check valves and butterfly valves. Our valves are made with materials of WCB, WC6, WC9, LCB, 304, 316, 304L, 316L and F51. They are widely used in many fields, such as petroleum, chemical, natural gas, power, feed water, steel and metallurgy.
If you are interested in any of our products, please feel free to contact us for more information.
