Altitude Control Valve
| Price: |
US $ 229/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
5/Piece |
| Pay Type: |
L/C,T/T,Western Union |
SUZHOU WALTER FLOW CONTROL SUPPLY KINDS OF HYDRAULIC CONTROL VALVE, LIKE PRESSURE REDUCING VALVE, FLOAT CONTROL VALVE, PRESSURE RELIEF VALVE, PRESSURE SUSTAINING VALVE & ALTITUDE CONTROL VALVE.

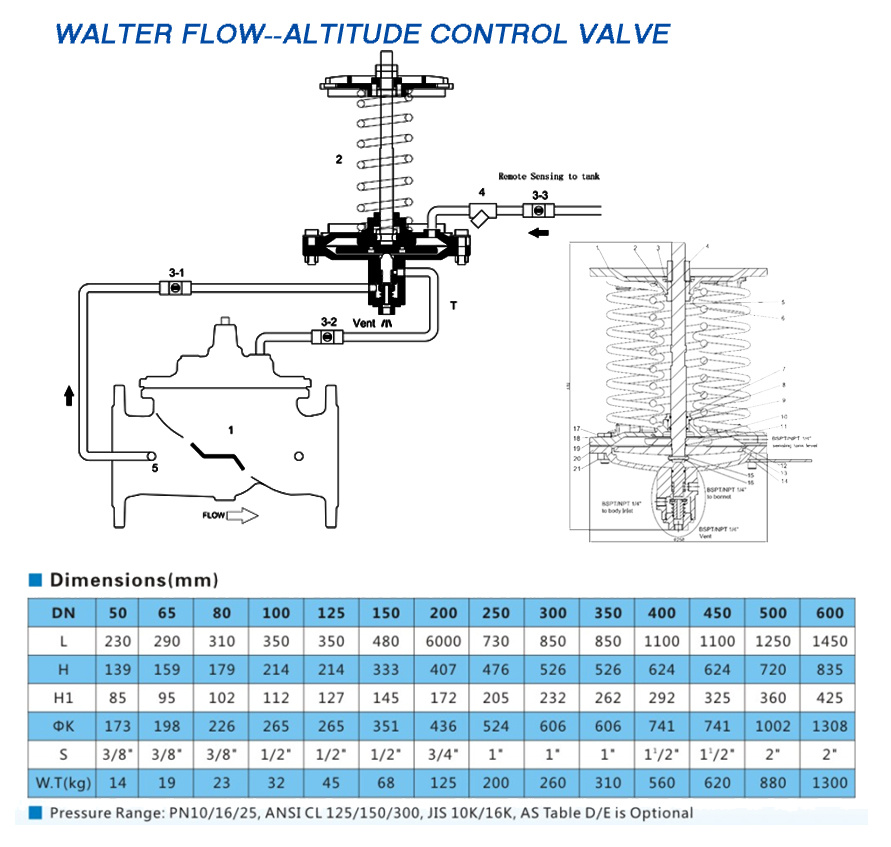

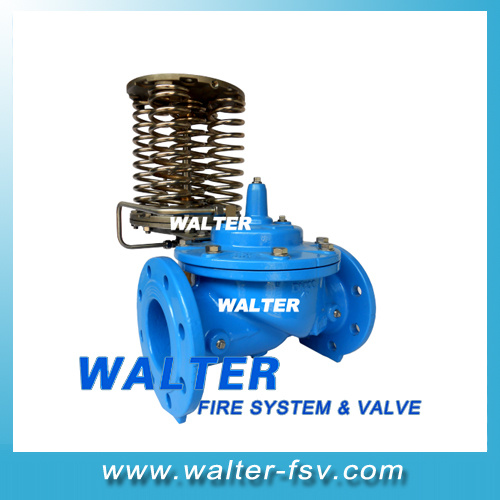

Cast Iron Flanged Altitude Control Valve
1. Body/Bonnet: GGG50 or Stainless Steel
2. Spring: SS304
3. Stem: SS / Bronze
4. Disc Retainer: DI/SS/Bronze
5. Seat: SS/Brass/Bronze
6. Seal Rings: NBR/EPDM/Viton
7. Pilot: Stainless Steel or Brass
8. Pipe or Tubes: Coppe or Stainless Steel
9. Working Pressure: PN10/16/25
10. Connection: Flanged acc. To EN1092.2, ISO 7005-2, ANSI/JIS/ AS2129
11. Epoxy Resin Coated to 300 microns inside & outside
12. Anti-cavitation Solution
Suzhou Walter Flow Control Equipment Co., Ltd. Which is a professional company and specialized in fluid equipment & firefighting equipment field. We are and always fashioning our long time business relationship from the advanced technology, excellent quality and good service.
Walter supply FM Approved, UL Listed, CE and relevant certificate products in Water Treatment Systems, Firefighting Project, High Buildings, Oil and Chemical Industry field.
Valve Products:
Gate Valve, Butterfly Valve, Check Valve, Ball Valve, Automatic control valves, Global Valve, Knife Gate Valve, Strainer, Flange and Pipe Fittings
Firefighting Products:
Firefighting Sprinkler System ( fire sprinkler, wet alarm valve, deluge valve, water flow detector, gate valve, butterfly valve etc...), Foam Fire Extinguishing Systems ( CO2 fire extinguishing equipment, pressure foam proportioning device ), Air Fire Extinguishing Systems ( FM200/HFC-227ea Systems ) and Fire Hydrant, Fire Hose, Fire Monitor etc;
Material: Cast Iron, Ductile Iron, WCB, Stainless Steel.
Cooperation create value, Walter always for the sake of customer, Choose Us, Reap Success.
For more information, please contact us directly
| Prod Model: |
A10A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: |
Altitude Control Valve |
| Body: |
Ductile Iron, Stainless Steel |
| Trim: |
Stainless Steel |
| Diaphgram: |
Nylon+EPDM/Viton |
| Seat: |
Ss / Bronze |
| Seal Rings: |
NBR/EPDM/Viton |
| Piolt: |
Brass or Stainless Steel |
| Pipes/Tubes: |
Copper or Stainless Steel |
| Pressure Rate: |
Pn10/16/25 |
| Coating: |
Epoxy Resin Coated to 300 Microns Inside & Outside |
Company Profile:
Suzhou Walter Flow Control Equipment Co., Ltd. Are a professional company specializing in fluid & firefighting equipment.
We do, and always will, fashion our long time business relationships from advanced technology, excellent quality and good service.
Walter Flow Control supplies products with FM, UL, CE and all other relevant certificates for use in Water Reticulation and Treatment Systems, Fire-fighting Projects, High Rise Buildings, the Oil, Gas and Chemical Industries etc.
Company Products:
Valves: Gate Valve, Butterfly Valve, Check Valve, Automatic Hydraulic Control Valve, Air Release Valve, Globe Valve, Ball Valve, Strainer, Pipeline products, etc.
Firefighting: Fire Sprinklers, Wet Alarm Check Valve, Deluge Valve, Water Flow Detector, Foam Extinguisher System, Gas Extinguisher System and Fire Hydrant System, Fire Hose, Fire Hose Reel, Fire Monitor, etc.
Standard & Certificates:
Walter products are design acc. To DIN, BS, ANSI, AWWA, EN, ISO, AS, API standard and relevant products can be provided with FM approval, UL listed, CE certificates.
