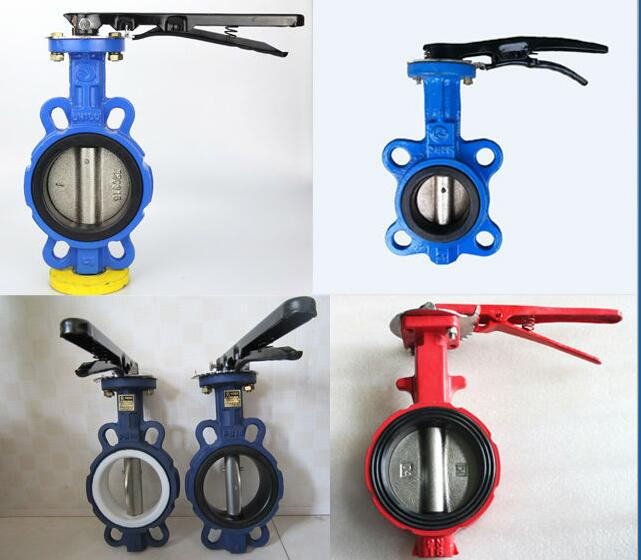

Aluminum Lever PTFE Seated Wafer Butterfly Valve
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
Quick Details
Standard or Nonstandard: Standard
Structure: Butterfly
Pressure: Medium Pressure
Power: manual/pneumatic/electric/worm gear,ect.
Material: CI/DI/SS/WCB/AL-bronze,WCB,ect.
Temperature of Media: Medium Temperature
Media:water,acid,oil,gas,steam,food,salt,base,ect.
Port Size: Various size
Place of Origin: Tianjin, China (Mainland)
Model Number: D7A1X-10/16
Brand Name: WDS
Application: General
Body: stainless steel/cast iron/ductile iron/carbon steel etc
Disc: CI/DI/WCB/AL-Bronze/CF8/CF8M/1.4529/1.4462(cast iron/ductile iron/carb
Seat:NR/EPDM/NBR/Neoprene/VITON/PTFE/Wear-resistant Rubber
Connection: Wafer type, flange type, lug type
Working Pressure: PN10/PN16
certificate: WRAS,CE,ISO
Delivery: 15-30 days after advance money
Standard: ISO,API,DIN,JIS,BS,AS,EN
wafer butterfly valve: risilent seated butterfly valve
butterfly valve with pin: butterfly valve with no pin
stretch resistant flangeless bare bar risilent sealed wafer butterfly valve
| |
stretch resistant flangeless bare bar risilent sealed wafer butterfly valve |
Size: |
DN50-1500 |
End flange: |
ANSI B 16.1,EN1092,AS2129 |
Face to face: |
ANSI B 16.10 |
Top flange: |
ISO 5211 |
Normal pressure: |
PN1.0/1.6MPa(150/200PSI); Class 125/150; JIS 5K 10K 16K 20K; Table D/E |
Body: |
CI/DI/WCB/ALB/CF8/CF8M |
Disc: |
DI/ALB/Rubber lined Disc/1.2501/1.4529/CF8/Hastelloy Alloy/Monel |
Stem: |
410/416/304/431/17-4PH/316/monel |
Seat: |
NBR/Hypalon/EPDM/Neoprene/NR/Wear-Resistant EPDM/Viton/Silicon/Heat-Resistant EPDM/White EPDM/EPDM/PTFE |
Suitable temperature: |
-10°C~180°C |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Working Pressure: Pn10/Pn16: |
Wafer Butterfly Valve: Risilent Seated Butterfly V |
| Connection Form: |
Wafer |
| Structure: |
Double-Eccentric Sealing |
| Seal Form: |
Force Sealed |
| Work Pressure: |
Mid-Pressure (',2.5mpa< Pn <6.4mpa) |
| Working Temperature: |
Medium Temperature (',120??C
|
| Material Of Seal Surface: |
Soft Sealed |
| Application: |
Water Industrial Usage |
LiFeng International Group, with the certificate of CE, ISO9001 & 14001. We have two factories of Weld Stainless Steel Tube and Valve-butterfly, check, and ball. We also offering the pipeline systerm. Highly skilled and experienced professionals use the latest technology to consistently create products with outstanding quality and the highest precision.
The extensive hard work, magnificent planning and dynamic management policies, has made LiFeng International Group become the reliable suppliers and get a good honor in our customers from the Asia, Africa, America and Europe market.
We offers the original ideas to customers around the world and provides "products appreciated by customers. " We aim to be a reliable company that continuously challenges itself to produce an attractive, quality mobility part.
Main Products: Stainless Steel and High-temperature Alloy pipes and tubes.
Main Grades: 304, 304L. 304H, 321, 321H, 316, 316L, 316H, 317L, 317LMN, 310S, 904L; S31803, S32205, S32750, S32760, S32304; Inconel 600, 601, 625, Incoloy 800, 800H, 800HT, Monel 400, Hastelloy C276; GH3030, GH3039, 15CrMoG, 16Mn.
Standard: ASTM/ASME A/SA 213, A/SA 312, A269, A268, A249, A/SA789/790, SB 163, SB167, SB407, SB444, SB423, SB622, SB668, SB677, EN10216-5, DIN17456, DIN17458, JIS 3459, GOST 9941-81, GB9948, GB5310, GB/T14976, GB13296.
Size Range: Outside diameter: 6mm-630mm, Wall thickness: 0.5mm-35mm, Maximum
Length: 25000mm
We have got certificates like PED
97/23/EC, LR-ISO 9001: 2008, Moody-ISO 9001: 2008, CCS, CCS-ISO 9001: 2008, ISO14001: 2004, ISO 10012: 2003, OHSAS 18001: 2011, SGS, API-5L, etc.
Relying on superior products quality, good reputation and service, our company has built a long-term and stable cooperation partners with SINOPEC, China BlueChemical, China Three Gorges Corporation, China Chengda Engineering Co., Ltd., TOYO Engineering Corporation(China), BASF-YPC Company, Alstom Wuhan Boiler, etc. Our products have been exported to over 50 countries, which include the United States, South Korea, France, Germany, Italy, Mexico, Brazil, Ecuador, Venezuela, Argentina, North Korea, Japan, Saudi Arabia, Jordan and so on.
We follow the tenet that "we make development by honesty, survive on quality, receive mutual benefit as a target". We welcome customers from all over the world to visit our factory.
