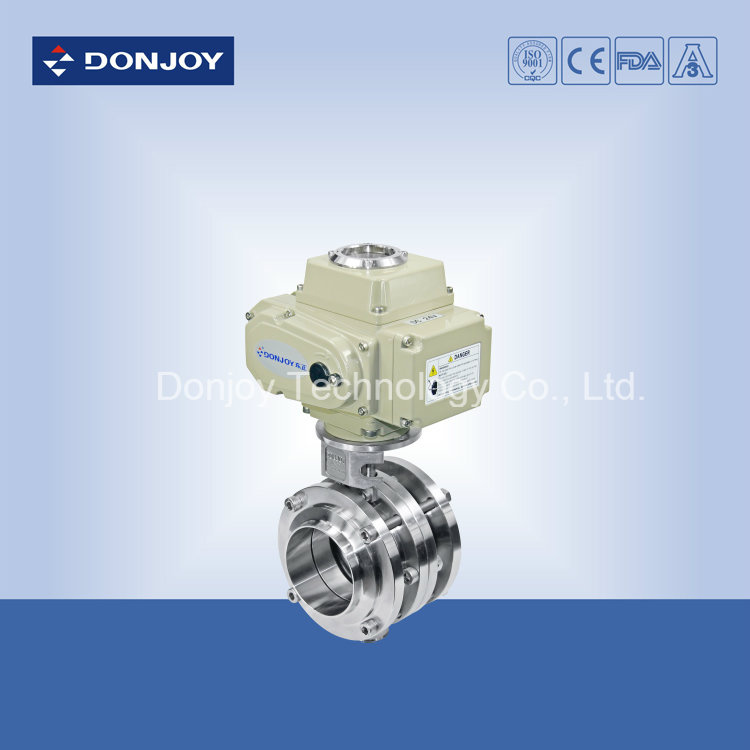

Specification:
Size: 1"-4", DN25-DN100
Material: 1.4301/304, 316L/1.4404
Gasket: PTFE/TFM(FDA 177.1550)
Temperature: -20º C to 150º C(Standard)
-30º C to 200º C (Option)
Pressure: 10-30bar(Depending on seal material and temperature)
Surface finishing: Internal surface Ra0.6um, external surface sand blast.
Certificate: PED/97/23/EC, 3A, FDA
Control: Process controller, valve positioning(see controller directory) C-TOP control unit, AS-1 Device Net bus communication terminal connection(options), position sensor PNP, NPN(options).
ITEM SIZE | 1/4" | 3/8" | 1/2" | 3/4" | 1" | 11/4" | 11/2" | 2" | 21/2" | 3" | FEATURES: 1000PSI/PN63 Reduce Port Investment Casting Blow-out Proof Stem Locking Device Handle (Option) PED97/23/EC (CE 0035) Approved Casting Approved AD2000-W0 Thread: ASME B1.20.1 BS21.DIN2999/259, ISO228-1, JIS B 0203, ISO7/1 Inspection Testing: API598, EN12266 |
D | 5 | 7 | 9.2 | 12.5 | 15 | 20 | 25 | 32 | 38 | 50 |
H | 33 | 35 | 40 | 44 | 51 | 57 | 64 | 70 | 70 | 77 |
W | 68.5 | 90 | 98 | 98 | 111 | 111 | 139 | 139 | 189 | 189 |
L | 39 | 44 | 57 | 59 | 71 | 78 | 83 | 100 | 128 | 153 |
|
|
|
|
|
|
|
|
|
|
|
M/M:
ITEM SIZE | 1/4" | 3/8" | 1/2" | 3/4" | 1" | FEATURES: 1000PSI/PN63 Reduce Port Investment Casting Blow-out Proof Stem Sanitary Design PED97/23/EC(CE 0035) Approved Casting Approved AD2000-W0 Thread: ASME B1.20.1 BS21.DIN2999/259, ISO228-1, JIS B 0203, ISO7/1 Inspection Testing: API598,EN12266 |
D | 7 | 7 | 9.2 | 12.5 | 15 |
H | 26.5 | 26.5 | 28.3 | 31.5 | 34 |
W | 22.8 | 22.8 | 22.8 | 22.8 | 22.8 |
L | 50 | 50 | 58 | 70 | 83 |
F/M:
ITEM SIZE | 1/4" | 3/8" | 1/2" | 3/4" | 1" | FEATURES: 1000PSI/PN63 Reduce Port Investment Casting Blow-out Proof Stem Sanitary Design PED97/23/EC(CE 0035) Approved Casting Approved AD2000-W0 Thread: ASME B1.20.1 BS21.DIN2999/259, ISO228-1, JIS B 0203, ISO7/1 Inspection Testing: API598,EN12266 |
D | 7 | 7 | 9.2 | 12.5 | 15 |
H | 26.5 | 26.5 | 28.3 | 31.5 | 34 |
W | 22.8 | 22.8 | 22.8 | 22.8 | 22.8 |
L | 42 | 42 | 46 | 54 | 65 |
F/F:
ITEM SIZE | 1/4" | 3/8" | 1/2" | 3/4" | 1" | FEATURES: 1000PSI/PN63 Reduce Port Investment Casting Blow-out Proof Stem Sanitary Design PED97/23/EC(CE 0035) Approved Casting Approved AD2000-W0 Thread: ASME B1.20.1BS21.DIN2999/259, ISO228-1, JIS B 0203, ISO7/1 Inspection Testing: API598,EN12266 |
D | 7 | 7 | 9.2 | 12.5 | 15 |
H | 26.5 | 26.5 | 28.3 | 31.5 | 34 |
W | 22.8 | 22.8 | 22.8 | 22.8 | 22.8 |
L | 42 | 42 | 46 | 54 | 65 |
Main parts and materials:
Temperature: -40°c~+180°c -40°c~+230°c
PART NAME | MATERIAL |
Joint Ring | PTFE |
Ball | SS201,304,316 |
Joint Gasket | PTFE |
Cap | SS201,304,316 |
Body | SS201,304(CF8),316(CF8M) |
Stem | SS201,304,316 |
Thrust Washer | PTFE |
Stem Packing | PTFE |
Gland Nut | SS201,304,316 |
Stem Washer | SS201,304,316 |
Stem Nut | SS201,304,316 |
Handle Cover | PLASTIC |
Handle | SS201,304 |
