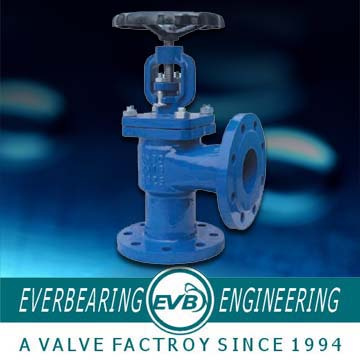

Globe Valve
Material: GG25
Trade Term: FOB
Certification: ISO, CE, DQS
Pressure: PN16
Valve, Globe Valve, angle globe valve
Appilcation |
Design: DIN3356 |
Face to face: DIN3202 F1 |
Flange: EN 1092-2 PN16 |
Seat Test Pressure: 17.6bar |
Shell Test Pressure: 24bar |
|
Features |
Outside acrew an yoke |
Clockwise closing direction |
Product color: Blue RAL 5017 |
|
|
|
|
|
|
|
|
|
Main Parts And Materials |
Parts Name |
Material |
Body |
GG25 |
Seat Ring |
Stainless Steel |
Disc Ring |
Stainless Steel |
Disc |
GG25/Carbon Steel |
Stem |
SS AISI 420 |
Bonnet Gasket |
Graphite With Soft Steel |
Bonnet |
GG25 |
Packing |
Grahpite |
|
|
|
|
|
|
|
|
|
Main Dimensions |
DN |
L |
D |
D1 |
D2 |
b |
n-d |
H |
W |
15 |
90 |
95 |
65 |
45 |
14 |
4-14 |
200 |
120 |
20 |
95 |
105 |
75 |
58 |
16 |
4-14 |
220 |
120 |
25 |
100 |
115 |
85 |
68 |
16 |
4-14 |
225 |
120 |
40 |
115 |
150 |
110 |
88 |
18 |
4-18 |
270 |
160 |
50 |
125 |
165 |
125 |
102 |
20 |
4-18 |
270 |
200 |
65 |
145 |
185 |
145 |
122 |
20 |
4-18 |
320 |
200 |
80 |
155 |
200 |
160 |
138 |
22 |
8-18 |
365 |
200 |
100 |
175 |
220 |
180 |
158 |
24 |
8-18 |
460 |
240 |
150 |
225 |
285 |
240 |
212 |
26 |
8-22 |
525 |
280 |
200 |
275 |
340 |
295 |
268 |
30 |
12-22 |
685 |
360 |
250 |
325 |
405 |
355 |
320 |
32 |
12-26 |
830 |
400 |
300 |
375 |
460 |
410 |
378 |
32 |
12-26 |
925 |
450 |
