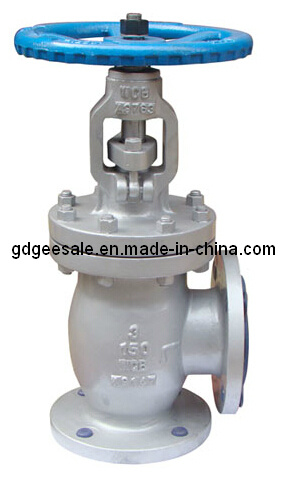

Angle Globe Valve

Angle Globe Valve
Price: Negotiable/Piece
Trade Terms: FOB
Min Order: 1/Piece
Pay Type: L/C,T/T
Specifications

Angle Globe Valve
Size: 2" ~ 48"
Pressure: Class150 or PN10-PN16
Material: CS, Ductile /cast iron, SS etc.



Angle gate valve

Design Features

1. Liftable sealing surface of wedge can scrape of f the adhered things on the sealing surface and automatically eliminate the impurities.
2. The Stainless steel wedge can prevent sealing leakage due to corrosion.
3. The integral stainless steel materials can prevent corrosion and damage.
4. The scientific back seal packing box design makes the bak seal safe, effective and durable.
5. The triangle supporter ensures necessary mechanical properties.
6. V shape wedge can serve as control valve.
7. The guide block on the valve body enables the wedge to move correctly and extrusion block provides effective sealing for the wedge.
8. The design of valve body reinforcing rib can enhance the body strength.

Technical Specification

Size: 2"-40" or DN50-DN1000

Pressure: Class150LB or PN10-PN16

Material: WCB, Cast Iron, Ductile Iron, WCC, LCB, LCC, WC6, WC9, C5, C12, CF8, CF8M, CF3, CF3M, CF8C, CN7M, etc.

Design & Manufacture Std.: MSS SP-81, MSS SP-135, ASME B16.34

Face to Face Std.: MSS SP-81, MSS SP-135, API B16.10, DIN 3202

End Connection Std.: ASME B16.5, ASME B 16.47, MSS SP-81

Test Standard: ISO5208, MSS SP-81, API598

Operated way: Handwheel, Gear, Pneumatic, Electric Actuator
Prod Model: J44H/Y
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Connection Form: Flange
Usage: Heating Pipeline
WENZHOU GDIGGER ENERGY ENGINEERING Co., Ltd. Located in Wenzhou, the area of head office is 45, 000 square meters, which is a professional manufacturer specializing in Pressure Vessels, Storage Tanks, LPG Spherical Tanks, LPG Tanks, and various quality ball valves, gate valves, check valves, globe valves and valve accessories. Our diverse products are used for handling a wide variety of applications in gas, oil, refining, chemical, shipbuilding, power generation and pipeline transmission industries.

We supply Storage Tank and Spherical Tank on any projects for different medium (LPG, LNG, Oxygen, Nitrogen, Natural Gas, Hydrogen, Liquefied Gas, etc). Cubage dimension from 5m³ To 10000 m³ With experienced installation teams for your tanks if need. GDIGGER provides an in-depth knowledge and widespread International experience from design, supply, construction, Installation & training of EPC Projects. Our products are used for handling a wide variety of applications in gas, oil, refining, chemical, shipbuilding, power generation and pipeline transmission industries.

In order to provide satisfactory products to the customs, we emphasize on our quality control to meet the customer's specification and requirements. We utilize modern CNC lathes and machining centers, precision grinders and a full complement of manual lathes and mills to produce high quality parts.

GDIGGER products are made in accordance with ISO, ANSI, API, ASME and other international standards. With qualifications of specialized contracting and Grade I of installation of steel structure, and qualified as Grade A2 and A3 of special equipment. We obtained some important international authentication certificates such as NK, BV, and ASME. Meanwhile we have been awarded U Stamp and U2 Stamp of ASME authentication as well as the NB Stamp of America Boiler and Pressure Vessel Supervisory Commission. Our main focus is on offering outstanding products to our customers and sticking to timely delivery schedules with top quality and competitive prices, which will be your reliable partner.

GDIGGER is your one stop solution partner on oil and gas industry. We welcome valuable customers to visit our company.
