Product Features

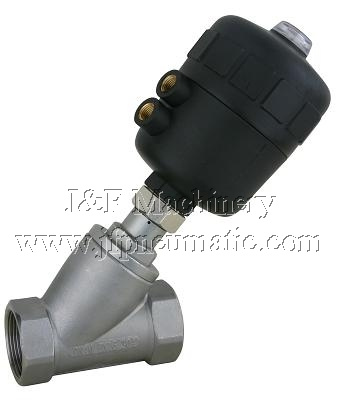

* JZF Series Angle Seat Valve;
* Simple structure and long working life.
* Suitable for medium, maximum viscid degree 600mm2/s;
* Heat-resistant, chemical corrode resistant.
* The anti-blast expenses are low;
* Easy to install. Lnfinitely rotable actaor allows pneumatic connection in any position between, as required.
|
Item \ Specification |
Normal Closed |
JZFS-15B |
JZFS-20B |
JZFS-25B |
JZFS-32B |
JZFS-40B |
JZFS-50B |
JZFS-65B |
JZFS-80B |
|
Normal Open |
JZFS-15T |
JZFS-20T |
JZFS-25T |
JZFS-32T |
JZFS-40T |
JZFS-50T |
JZFS-65T |
JZFS-80T |
|
Material of body / Actuator |
S.S 304 \ 316 / S.S 304 |
|
Seat seal |
PTFE/FPM |
|
Stem seal |
PTFE/FPM |
|
Piston seal |
PTFE/FPM |
|
Temperature of Medium |
PTFE |
-10 C~ 200 C |
|
FPM |
-10 C~ 100 C |
|
Installing |
Downsteam / Upsteam |
|
Operating Method |
Plunger Pilot |
|
Applicable Medium |
Air, Water, Oil, Steam (50CST Bellow) |
|
Pipe Size |
ZG½ |
ZG¾ |
ZG1 |
ZG1 ¼ |
ZG1 ½ |
ZG 2 |
ZG2 ½ |
ZG 3 |
|
Nominal Diameter mm |
13 |
20 |
25 |
32 |
40 |
50 |
65 |
80 |
|
Kv (m³/h) |
4.2 |
8 |
19 |
27.5 |
42 |
55 |
90 |
115 |
|
Pressure range (Mpa) |
0~1.6 |
0~1.1 |
0~1.1 |
0~1.5 |
0~1.25 |
0~1.1 |
0~0.52 |
0~0.52 |
|
Min. Control Pressure (Mpa) |
0.39 |
0.39 |
0.42 |
0.5 |
0.44 |
0.32 |
0.32 |
0.32 |
|
Executor Dimension (mm) |
50 |
50 |
63 |
80 |
100 |
125 |
125 |
125 |
Company name: Ningbo Huaqiu Industry and Trade Co., Ltd.
Established Year: 2006
History in Pneumatic: 5 years
Main Products:
A. Pneumatic components, like Pneumatic Cylinder, Solenoid Valves, pneumatic valves, FRLs, Pneumatic fittings and Hoses, muffler, etc.
B. Hydraulic valve
Management System: ISO9001
Advantage: Strong Technical design ability, Stable quality, and large production capability
Brand: JINTAI(international), JINTAI(China market)
Huaqiu is now supply to more than 40 countries and enjoying high reputation among all of our customers.
We're sure with both our hard work we'll enjoy common successful future in your local market.
