| Price: | US $ 100/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Paypal,Western Union |
Product Simple Specification

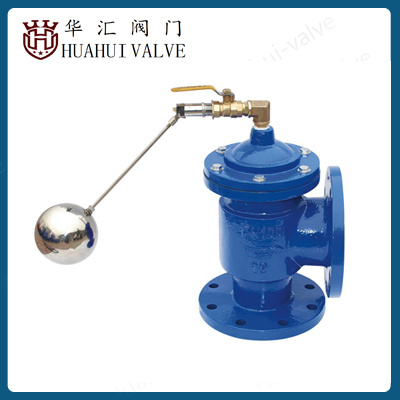

The main valve is controlled by a float ball valve which locates on the top of tank or reservoir. The valve maintains the maximum water level of tank or reservoir continuously.
HC100X diaphragm control ball valve is a multifunction htdaulic control valve, The water level can be controlled below a preset elevation, This valve can be widely used in influent pipes of the pools and water tower in higrise buildings,municipal domestic water systems,fire fighting facilites, factories and mines. When adding a solenoid valve, then comprises another type, which provides double control to water level,normally used at high overflow prevention project.
| Diaphragm type | ||
| No. | Name of parts | Material |
| 1 | Bonnet | Cast Iron,Ductile Iron,Carbon Steel,SS |
| 2 | Spring | Spring Steel,SS |
| 3 | Diaphragm gland | Cast Iron,Ductile Iron,Carbon Steel,SS |
| 4 | Diaphragm | Strengthening NBR or EPDM |
| 5 | Stem | 2Cr13 |
| 6 | Disc | Cast Iron,Ductile Iron,Carbon Steel,SS |
| 7 | O-ring | NBR,EPDM |
| 8 | O-ring Gland | Cast Iron,Ductile Iron,Carbon Steel,SS |
| 9 | Valve seat | |
| 10 | Body | Cast Iron,Ductile Iron,Carbon Steel,SS |
| Prod Model: | H142X |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: | Dn32-Dn300 |
| Flange Standard: | DIN,Bs,ANSI, |
| Working Pressure: | Pn10,Pn16 |
