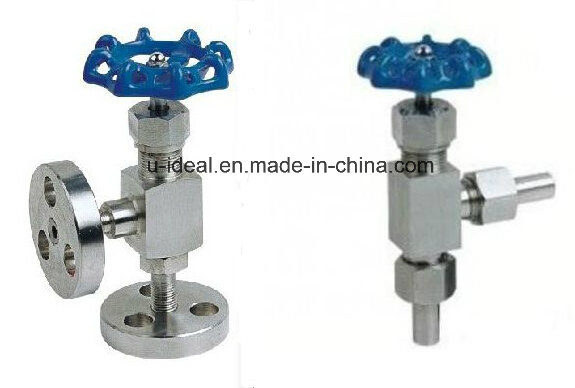

Angle Type Globe Needle Valve-Pressure Gage Needle Valve-Ferrule Needle Valve
| Price: |
US $ 7-100/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Paypal,Western Union |
Angle Type Globe Needle Valve
The materials of main parts
Part name | Body, Bonnet | Stem,Disc | Packing |
| J24W-160P-DN3 | Cr-Ni Stainless steel | Cr-Ni Stainless steel | PTFE,flexible graphite |
| J24W-320P-DN6 | High quality carbon steel | Cr-Ni Stainless steel | PTFE,flexible graphite |
Main performance and specification
Type | Nominal Pressure(MPa) | Test pressure PS(MPa) | Working Pressure(MPa) | Working Temperature (ºC) | Applicable medium |
| Shell(MPa) | Sealing (liquid) | Sealing (gas) |
| J24W-160P-DN3 | 16.0 | 24.0 | 17.6 | 0.6 | 16.0 | P≤540ºC | Petroleum gas Water,acid,Steam, Oil etc. |
| J24W-320P-DN6 | 32.0 | 48.0 | 35.2 | 0.6 | 32.0 | C≤425ºC |
Main external and connection dimensions(mm)
Type | Nominal diameter DN(mm) | Dimensions | Weight (Kg) |
| L1 | Do | H | H1 | D | D1 |
| J24W-160P-DN3 | 3 | 80 | 65 | 159 | 168 | 14 | 3 | 1.0 |
| J24W-320P-DN6 | 6 | 80 | 65 | 159 | 168 | 14 | 6 | 1.0 |
| Prod Model: |
J24W |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Sampling Valve: |
with Sample Tube and Isolating Valve |
| Function2: |
Drain Valve |
| Function3: |
Vent (Air Release Valve) |
| Function4: |
Can Connect with Pressure Gauge |
| Pressure: |
High Pressure |
| Power: |
Manual |
| Standard: |
Nonstandard |
| Material: |
Stainless Steel |
| Media: |
Oil |
| Media Temperature: |
High Temperature |
