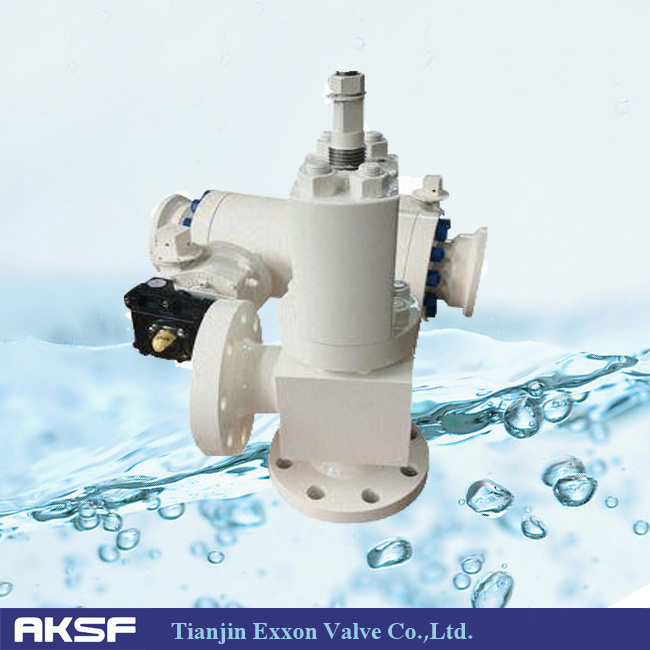

Angle Type Globe Valve, Energy-saving
Key Specifications
Standards or non-standards: API 609/BS 5155
Structure: Angle valve
Pressure: 125 to 150LB
Operator: Manual
Port size: 2- and 24-inch
Connection: Lug
Simple structure at same time can be used for low pressurepipeline medium switch control, serve as cut-off and throttling inpipeline
Materials:
Body: GG25/GGG40/GGG50
Disc: DI/SS304/SS316/AL-BZ
Stem: SS410/SS416/SS420/SS304/SS316
Seat: NBR/EPDM/PTFE/Viton
Design standards: API 609/BS 5155
Flange standards: ANSI 125#/150#, JIS 5K/10K/16K, DIN 2501PN6/PN10/PN16 and BS 4504 PN10/PN16
Small size and lightweight
Easy to install and maintain
Can be mounted wherever needed
Simple and compact construction
Minimized operating torque
Energy-saving
Flow block is small
Excellent regulation performance
Wide selection of materials
Applicable for various medium
Structure: Ball
Pressure: 150/300/600/900/1500/2500lb
Operator: Lever, gear, pneumatic and electric
Material: Forged steel, A182 F316, A182 F304, A105, alloysteel, duplex and inconel
Temperature of media: High temperature
Port size: 1/2 to 2 inches
Connections: Flanged, welded and threaded
2-piece body, side entry, floating ball, full or reduced port, fire-safe and anti-static, blow-out proof stem, free leakage ofbody sealed construction, automatic body cavity relief, variousdriving types, emergency sealing and low torque in operation
Face to face (flange ends/welded connection): API 6D and ASTMB16.10
Screwed end: ASME B1.20.1
Socket welding end: ASME B16.11
Flange ends: ASME B16.5/ASME B16.47
Butt-welding ends: ASME B16.47
Test and inspection: API598
Fire-safe: API 607 and API 6FA
Tianjin Exxon Valve Co., Ltd. Offers several styles of Rubber Lined Concentric Butterfly Valves, Resilient Seated Gate Valves and Soft Seated Dual Plate Check Valves to meet your requirements. We would like to help you choose the correct valve style according to the process conditions and system needs of the valves.
Our company has a comprehensive computer-aided design systems and sophisticated computer numerically equipment in production, processing and testing. We are strictly according to the international quality system standard ISO9001 for production.
We specialize in soft sealed butterfly valves and gate valves of wafer type, flange type and groove type, which are widely applied in petroleum, chemical, natural gas, food, water supply and other industrial areas.
The valves of EXXON are highly appreciated at home and abroad. Even though there is a fierce competition in the market nowadays, EXXON obtains a steady and efficient development being guided by our manage principle, that is, guided by the science & technology, guaranteed by the quality, adhere to sincerity and target at excellent service...
We persist in the pursuit of excellence, strive to build EXXON brand. Great effort will be made to achieve common progress and development with all of you and creating a better future.
