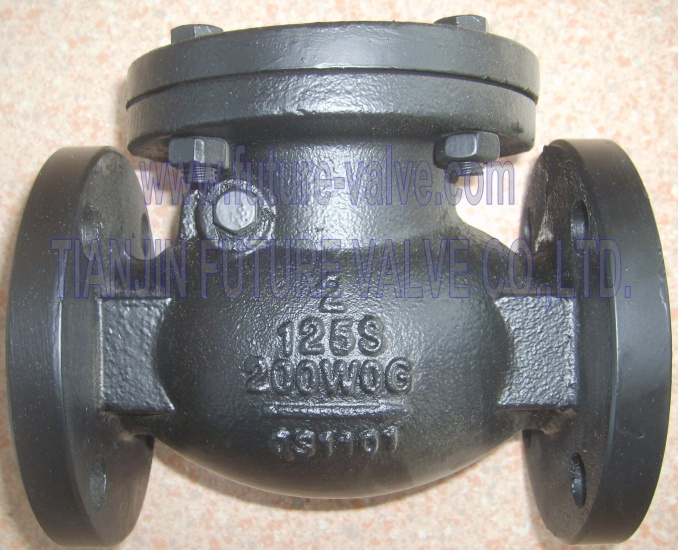

ANSI 125 150 2 Inch Swing Type Flanged Check Valve (H44T-125)

ANSI 125 150 2 Inch Swing Type Flanged Check Valve (H44T-125)
Price: US $ 6/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 10/Piece
Pay Type: L/C,T/T
Future Valve - ANSI 125/150 2 Inch Swing Type Flanged Check Valve

Specifications
1. MSS SP-71, BSEN 12334 design.
2. Size: DN50-DN600.
3. WRAS rubber coated disc or brass seal.
4. FF: ISO/EN558/ANSI B16.10.
5. PN10/16/25 presure.
TECHNICAL DATA
Valve Standard: MSS SP-71, BSEN 12334
Nominal diameter: 2"-24"/DN50DN600
Working pressure: 10/16/25Bar
Face-to-face: ANSI B16.10, ISO 5752 Series 10, EN 558 Series 10, DIN3352 F6
Flange accommodation: ANSI B16.1 Class125/150, EN1092-2 PN16
Tightness check: API 598, ISO 5208, EN12226-2

Material
Body: Cast iron or ductile iron
Bonnet: Cast iron or ductile iron
Seat ring: Brass or Cast bronze or stainless steel(SS304)
Arm: Cast iron or ductile iron
Disc: Cast iron or ductile iron
Pin: Stainless steel
Drain plug: Stainless steel

Delivery & Packaging
Delivery Detail: General within 30 days or according to the order quantity.
Packaging Detail: Plywood case. (each PC into one bubble plastic bag, several PCS into one Plywood case).
Prod Model: H44T-125
Markets: South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material: Cast Iron
Structure: Swing
Function: Nrvr Silence
Application: Water Industrial Usage
Connection Form: Wafer
Tianjin Future Valve Co., Ltd. is specialized in research, development, production and sale of butterfly valve, check valve, gate valve for years. With professional staff, scientific management system, strong production capacity, strict quality control, on-time delivery, quick response service and individual approach to every customer, we have confidence that we could establish long-term, win-win partnership with you!
