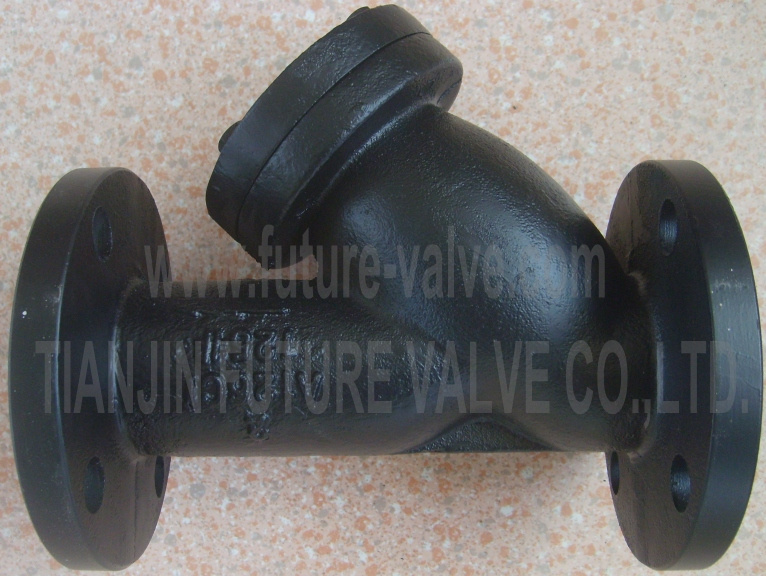

Future Valve - ANSI 125 150 2 Inch Y Strainer Flanged End (GL41H-125/150)
Detailed Product Description:
The Strainers carry out superficial sieving of the water, retaining those particles that are bigger than the screen holes. We have at your disposal Strainers in"Y" shape. Regarding their installation, the Strainers can be either equipped with flanges fitted on their ends or with internal threads.
Main parts materials
1) Screen: Stainless Steel SS304/SS201.
2) Bolt and Plug: Carbon Steel or Stainless Steel.
3) Gasket: NBR/EPDM/Synthetic Fiber ( Asbestos Free).
4) Body and Cover: Cast iron/ductile iron/CI/DI/GG25/GGG40/GGG50/HT200/QT450.
Specifications
1. Suitable media: Water, oil.
2. Nominal diameter: DN15-DN600(1/2"-24").
3. Working temperature: -20 to 200 centigrade.
4. Tightness check: API 598/ISO 5208/EN12226-1.
5. Flange: DIN2501/EN1092-2 PN10/16/25 or ANSI B16.10.
6. Standard: DIN3202 F1, ANSI CLASS 125, BS4504 PN16.
7. Face-to-face conform to DIN3352/DIN3202 F1(ISO5752)/EN558-1.
8. Working pressure: PN10/PN16/PN25 or 10Bar/16Bar/25Bar or class 125lbs-150lbs.
9. Body coating: Fusion bonded epoxy coating or Bitumen coating at customers' request.
Packaging & Delivery
Packaging Detail: Plywood case.
Delivery Detail: General within 30 days or according to the order quantity.
(Other details, pls contact us freely)
