Home Valve Products ANSI 600lb Wcb Floating Ball Valve with Manual RF

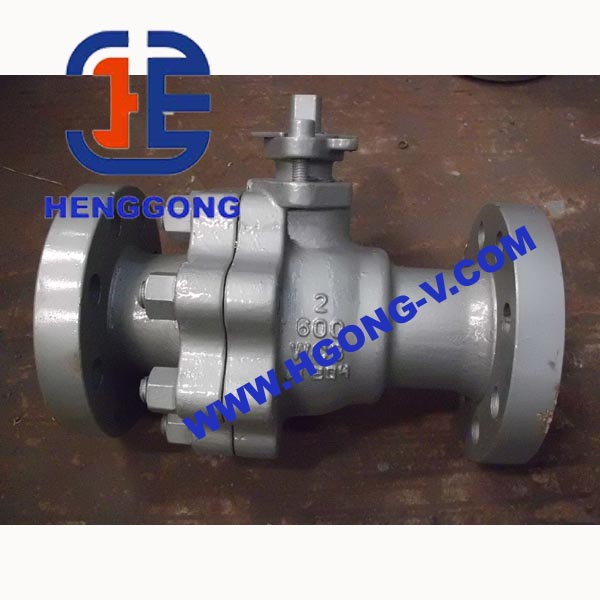

ANSI 600lb Wcb Floating Ball Valve with Manual RF

ANSI 600lb Wcb Floating Ball Valve with Manual RF
Price: US $ 30/Piece
Trade Terms: FOB
Min Order: 1/Piece
Pay Type: T/T

Product Description
Floating Ball Valve (CLASS 150~300)

Bolted bonnet, Two-piece Body, Floating Ball

Full or Reduced bore, Blowout Proof Stem

Fire safe and Anti static

Stainless steel ball

ASTM A216 WCB, A351 CF8, A351 CF8M,

A351 CF3, A351 CF3M, A351 CN7M

Standards compliance
Design and Manufacture: API 608, API 6D, BS5351

Face to face(end to end): ANSI B16.10, API 6D

Flanged connection: 2"~24" to ANSI B16.5

Fire-safe: API 607, API 6FA

Butt welded end: ANSI B16.25

Test and inspection: API 598, API 6D
NOPart nameMaterialNOPart nameMaterial
1BonnetA216-WCB9GasketPTFE
2NutA194-2H10PackingGraphite
3GasketGraphite11GlandA216-WCB
4BoltA193-B712Screw nailA194-2H
5BodyA216-WCB13Locating pieceCarban steel
6SeatPTFE14RingAISI 1566
7BallA10515WrenchA47-667
8StemA276-410



Prod Model: Q41F-600LB
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
API6d: 600lb
Connection Form: Flange
Channel: Straight Through Type
Structure: Floating Ball Valve
Type: Floating Ball Valve
Application: Water Industrial Usage
Material: Wcb
Established in 1998, HengGong valve Group Co., Ltd., is located in Dongou Industrial Area in Oubei Town of Yongjia County, the cradleland of "China Pump and Valve", which enjoys favorable geographical location and convenient transportation. Presently, our company is covering an area of 3000 square meters, and owns 10 senior engineers, 20 technicians and more than 150 staff. The company has strong technical capabilities and high-quality personnel teams.

Our company owns advanced manufacturing technologies, testing equipments. Moreover, our products have passed the ISO9001 Quality System Certification and Pressure Equipment Direction EC Certification. From design to delivery, in each procedure, products are controlled strictly in accordance with ISO9001(CQC) and the quality of products produced by our company is all insured by People's Insurance Company of China.

The company is specialized in production of a series of products such as knife style gate valves, various types of metal hard sealed ball valves, PTFE soft sealed ball valves, high temperature and pressure wrought steel ball valves and eccentric semispherical valves, three way valves(T-pattern, Y-pattern and L-pattern), API valves, forged steel valves, butterfly valve, globe valves, check valves and more, which are designed and manufactured according to international standards like GB, ANSI/API, JIS, DIN and etc. The main body material of produced valves.

Includes: WCB, WC1, WC6, WC9, CF8, CF8M, CF3, CF3M, 12CrMoV, 15Cr1Mo1V, LCB, LF and so on. The nominal diameter vary from 10mm to 1000mm and from 1/2" to 24". Operating pressure vary from 10MPa to 160MPa and 150Lb to 2500Lb. There are many driving modes including manual drive, helical wheel drive, electric drive, pneumatic power, hydraulic power, combined drive by electricity and liquid. All sorts of non-standard valves can be designed and produced in accordance with customers' request.
