Detailed Product Description

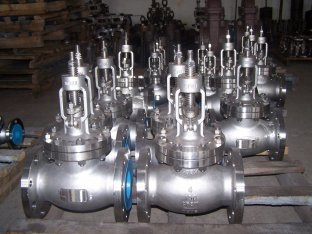

ANSI B16.34 and BS1873 standard 2" - 16" size API CF8M globe valve
Cast Steel Globe Valves
Class 150/300/600/900/1500
Bolted bonnet, Outside screw & yoke, Rising stem, Plug type disc, Threaded seat ring.
Description:
Design and manufacture: ANSI B16.34 and
Design and manufacture: BS1873
Test and inspection: API 598 .
Face to face dimensions: ANSI B16.10
End flange dimensions: ANSI B16.5
Butt-welding ends: ANSI B16.25
Size: 2" ~ 16"
Materials of body/bonnet and trim
Body/bonnet | WCB, LCB, LCC, WC1, WC6, WC9, C5, C12, CF8, CF8M, CF3 and CF3M etc. |
| Trim (Disc/body seat) | F6/F6, 304/304, HF/HF, F6/HF, Monel/Monel, 316/316, Monel/HF and 316/HF etc. |
Type of operation: handwheel, gear, electric or pneumatic actuator etc.
Standard materials of parts
No. |
Parts |
Materials |
1 |
Body | A216 WCB |
2 |
Seat ring | A105 + F6 |
3 |
Disc | A105 + F6 |
4 |
Stem | A182 F6 |
5 |
Disc nut | A182 F6 |
6 |
Gasket | Stainless steel and graphite spiral wound |
7 |
Bonnet | A216 WCB |
8 |
Bonnet bolt | A193 B7 |
9 |
Bonnet nut | A194 2H |
10 |
Backseat bushing | A182 F6 |
11 |
Stem packing | Graphite |
12 |
Lantern | A182 F6 |
13 |
Pin | Carbon steel |
14 |
Gland flange | Carbon steel |
15 |
Gland | A182 F6 |
16 |
Gland eyebolt | A307 B |
17 |
Gland nut | A194 2H |
18 |
Stem nut | A394 D2 |
19 |
Handwheel | Ductile iron |
20 |
H.W.Lock Nut | Carbon steel |
Xingtai City Liqian Import & Export Co., Ltd is committed to providing high-quality industrial valves to the international customers. Our factory has a 60-year history on researching, developing, manufacturing and marketing of industrial valve products that are widely used in Oil & Gas, Water Treatment, Power Generation, Petroleum Refinery, Chemical & Petrochemical, and Paper & Pulp industries. It is located in Tianjin-Bohai Economic Center, with strong geographical advantages and development spaces, now becoming the largest valve manufacturer in China. It has passed the authentication of ISO9001: 2008 quality management system, ISO 14001: 2004 environmental management system, and OHSAS 18001: 2007 Occupational Health & Safety System, also with CE, API, KS and GOST certification.
Our exported products include USA ANSI, API, AWWA standard valves, Germany DIN standard valves, England BS standard valves, Japan JIS standard valves, Russia GOST standard valves, France NF standard valves, etc. And the types covering gate valve, globe valve, ball valve, butterfly valve, check valve, diaphragm valve, reducing valve, plug valve, traps valve, etc. With stable quality and long using life, our valves are very popular in USA, Europe, Russia and Middle East markets.
To choose Liqian Valve means to choose safety. We would like to enjoy a win-win cooperation with the customers all over the world!
