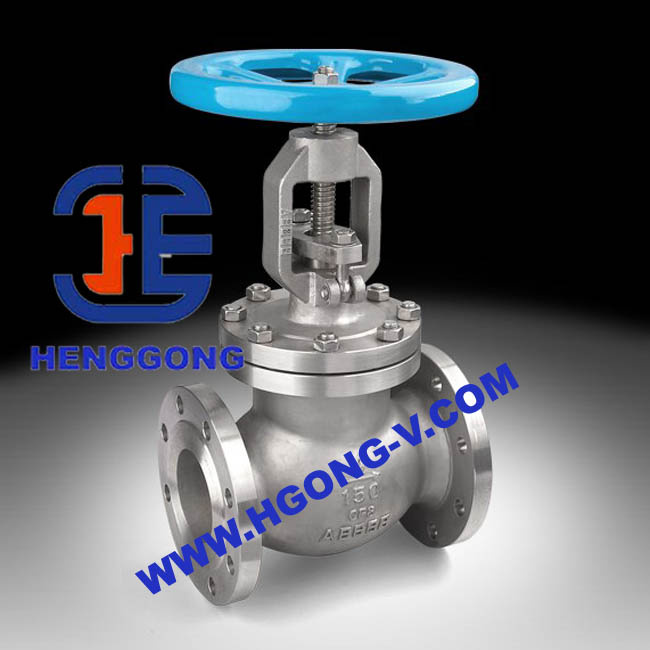

ANSI Cl150 CF8/Ss304 Globe Valve (DN50-DN600)

ANSI Cl150 CF8/Ss304 Globe Valve (DN50-DN600)
Price: US $ 200/Piece
Trade Terms: FOB,CIF
Min Order: 1/Piece
Pay Type: T/T

Product Description
Flanged stainless steel Globe Valve (CLASS 150~1500)

OS&Y, Rising stem, Plug Disc

Bolted Bonnet, Threaded or welded seat ring

ASTM A216 WCB, A217 WC6, A351 CF8, A351 CF8M,

A351 CF3, A351 CF3M, A351 CN7M

Standards compliance:
Design and Manufacture: ANSI B16.34, BS1873

Face tu face(end tu end): ANSI B16.10

Flanged connection: To ANSI B16.5

Butt welded end: ANSI B16.25

Test and inspection: API598

A. Anti-friction ball thrust bearing: Reduces friction between mating parts to ensure smooth operation

B. Grub screw: Secures yoke nut in the bonnet

C. Grease nipple: Supplies lubricant to the mating parts

Design & Manufacturing Standard
BS 1873, ASME B16.34, BS 5352, BS 6364
Face tu face(end tu end)ASME B16.10, EN 558
Flange Connection SizeASME B16.5, BSEN 1092
Butt Welding SizeASME B16.25
Pressure-Reference TemperatureASME B16.34
Check & ExperimentAPI 598, BS 6364

Prod Model: J41H
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
ANSI Globe Valve: Stainless Steel
Structure: Through Way Globe Valve
Stem Thread Position: Outside Screw Stem Globe Valve
Standard: JIS
Sealing Form: Gland Packings Globe Valve
Application: Bellows Globe Valve
Established in 1998, HengGong valve Group Co., Ltd., is located in Dongou Industrial Area in Oubei Town of Yongjia County, the cradleland of "China Pump and Valve", which enjoys favorable geographical location and convenient transportation. Presently, our company is covering an area of 3000 square meters, and owns 10 senior engineers, 20 technicians and more than 150 staff. The company has strong technical capabilities and high-quality personnel teams.

Our company owns advanced manufacturing technologies, testing equipments. Moreover, our products have passed the ISO9001 Quality System Certification and Pressure Equipment Direction EC Certification. From design to delivery, in each procedure, products are controlled strictly in accordance with ISO9001(CQC) and the quality of products produced by our company is all insured by People's Insurance Company of China.

The company is specialized in production of a series of products such as knife style gate valves, various types of metal hard sealed ball valves, PTFE soft sealed ball valves, high temperature and pressure wrought steel ball valves and eccentric semispherical valves, three way valves(T-pattern, Y-pattern and L-pattern), API valves, forged steel valves, butterfly valve, globe valves, check valves and more, which are designed and manufactured according to international standards like GB, ANSI/API, JIS, DIN and etc. The main body material of produced valves.

Includes: WCB, WC1, WC6, WC9, CF8, CF8M, CF3, CF3M, 12CrMoV, 15Cr1Mo1V, LCB, LF and so on. The nominal diameter vary from 10mm to 1000mm and from 1/2" to 24". Operating pressure vary from 10MPa to 160MPa and 150Lb to 2500Lb. There are many driving modes including manual drive, helical wheel drive, electric drive, pneumatic power, hydraulic power, combined drive by electricity and liquid. All sorts of non-standard valves can be designed and produced in accordance with customers' request.
