Specifications:

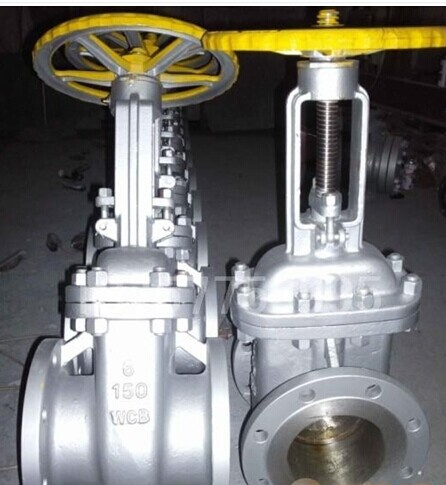

1. Gate valve, carbon steel gate valve
2. Design: ANSI B16.34, API 6D, API600
3. Size: 2"-24"
4. Class: 150Lb-600lb.
Applicable Standard:
Design Standard: API 600, BS1414, DIN3352.
Face to Face: ASME B16.10, EN 558, DIN3202.
End Flange: ASME B16.5, ASME B16.47, DIN2533.
Buttwelding Ends: ASME B16.25, DIN3239.
Inspection and Test: API 598, DIN3230.
Products Range:
Size: 2" ~ 32"(DN50 ~ DN800)
Rating: ANSI 150lb ~ 600lb
Body Materials: Carbon Steel, Stainless Steel, Alloy Steel, Duplex Steel
Trim: Per API 600
Operation: Handwheel, Gear, Electric, Pneumatic, Hydraulic
Design Features
Full port design
OS&Y, outside and screw
Bolted bonnet, back seal structure
Flexible wedge, fully guided
Choice of Solid or split wedge
Extended stem design for low temperature
Flanged or butt-welding ends.
|
parts |
|
|
|
|
|
|
Body/cap |
0Cr18Ni9 |
00Cr18Ni10 |
0Cr17Ni14M02 |
00Cr18Ni10M02 |
WCB |
|
Disc |
0Cr18Ni9 |
00Cr18Ni10 |
0Cr17Ni14M02 |
00Cr18Ni10M02 |
1Cr13 |
|
Stem |
0Cr18Ni9 |
00Cr18Ni10 |
0Cr17Ni1dM02 |
00Cr18Ni10M02 |
1Cr13 |
|
Stem,nut |
Aluminium bronze |
|
Packing |
PTFE |
PTFE |
PTFE |
PTFE |
Graghite +304 |
|
Gasket |
304+PTFE |
304L+PTFE |
316+PTFE |
316L+PTFE |
WCB |
|
Gland |
0Cr18Ni9 |
00Cr18Ni10 |
0Cr18Ni9M02 |
00Cr18Ni10M02 |
35CrM0A |
|
Bolt |
stainless steel |
45 |
|
Nut |
stainless steel |
|
|
Handwheel |
Ductile Cast iron stainless steel |
|
EVK FITTING GROUP Co., Ltd (China) is a leading group, engaged in manufacturing valve, pipe fitting and flange, affilicating Qingdao EVK Industrial Co., Ltd, Yantai EVK Valve Manufacturing Co., Ltd, Hebei EVK Pipe Fitting Co., Ltd and Tianjin EVK Flange Fabrication Co., Ltd. EVK Group has more than 2000 staffs and covers around 150000 square meters totally.
Main production includes:
Valve: Cast iron/Ductile iron/Cast steel/Forged steel Valve( DIN3352 Resilient seated F4/F5 Gate valve, DIN3352 F4/F5 metal seated Gate valve, BS5163/BS5150/AWWA C509 Gate valve, API600 Gate valve, Wafer/Lug/Double flange butterfly valve, DIN/MSS Globe valve, Wafer/swing check valve, Y-strainer, JIS marine valve)
Pipe fitting: Carbon steel butt welding pipe fitting(Elbow, Straight and reducing tee, concentric and eccentric reducer, cap), Forged steel pipe fitting(Elbow, Tee, Reducer), Malleable iron pipe fitting.
Flange: Carbon steel and stainless steel forged flange(Flat flange, welding neck flange, slip on flange, blind flange).
Autoparts: Brake shoes, Brake pads, Brake discs, Brake drums.
We exported to more than 25 countries in the world, our main customers have CRANE, WALWORTH, OARI, etc. Our company was awarded with ISO9001 certificate and CE for our valve, pipe fitting and flange products.
Our blief is "Do friend first, Do business second", we welcome all friends from all over the world to do business together!
