Basic Info.
Model No.: Z41W-150LB
Connection Form: Flange
Material: Stainless Steel
Seal Surface: Wedge Gate Valve
Thread Position of Valve Rod: Outside Gate Valve
Size: 140
Export Markets: Global
Additional Info.
Trademark: XUTENG
Packing: Plywood Cases
Standard: 4"
Origin: Dongjin Valve, Wenzhou, China
HS Code: 8481804090
Production Capacity: 20000
Product Description

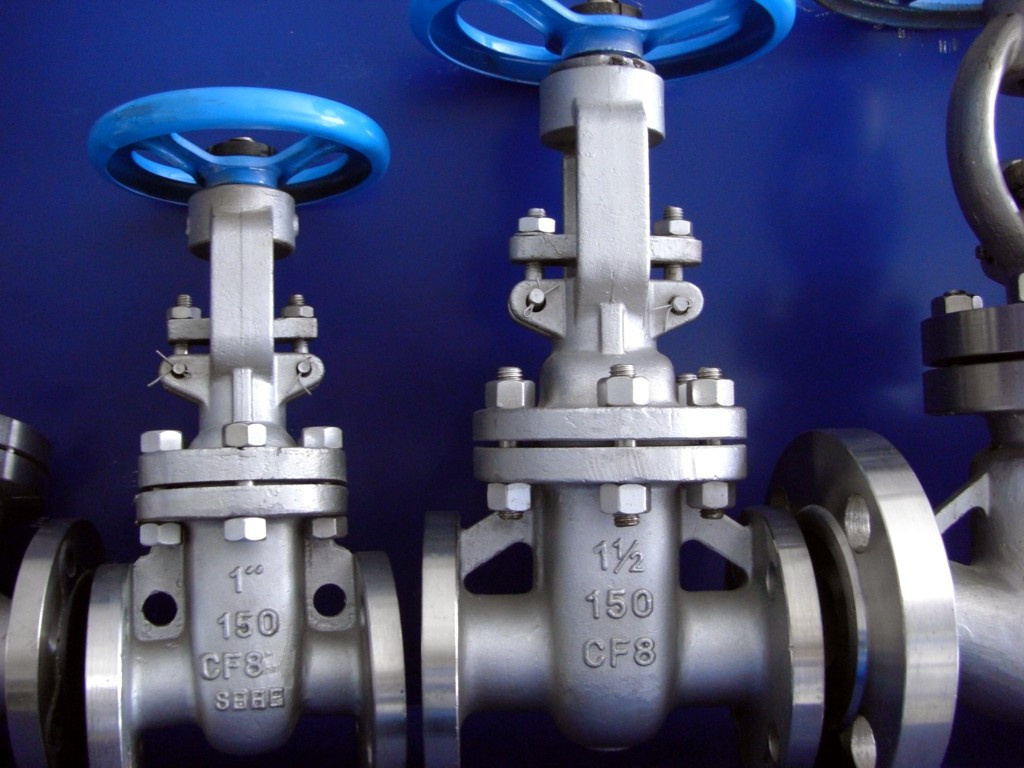

API gate valve
Pressure class: 150Lb 600Lb 10K 40K
Size: 11/2" 20"
Material WCB SS304 304L 316 316L
Applicable: WCB 425 Stainless steel 200
Medium: Water, Gas, Oil, acid, nictitate
Structure Length ANSIB16.10 Standard Design: API600
Fanged Length: ANSI B16.5 Test Standard: PI598
API gate valve
Pressure LBStrength TestWater seal testAir seal test
MapLbf/in 2MapLbf/in 2MapLbf/in 2
1503.14502.23150.5~0.760~100
3007.811255.6815
60015.3222511.21630
API Gate Valve Main material List
API gate valve Z41W
Body,
Cap,
DiscWCBZG1Cr18Ni9TiSS 304SS304LZG1Cr18Ni12Mo2TiSS316
Seat faceCr13 or Hard AlloyNominal W Hard Alloy Y
Stem, Internal Part2Cr131Cr18Ni9Ti0Cr19Ni9 SS30400Cr19Ni11 SS304L1Cr18Ni12Mo2Ti0Cr17Ni12Mo2 SS316
PackingFlexible Graphite
GasketStainless steel spiral wound gasket
MediumWater, Oil,
GasCorrosion medium such as Nitric acidstrong oxidizing propertyCorrosion medium such as Acetic acid
Temperature-29~425 C-40~500C
API Gate valve dimensions
