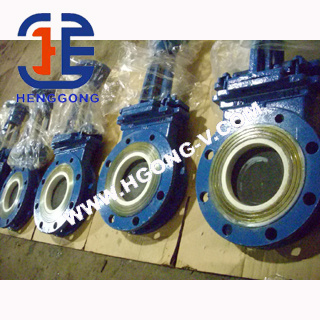

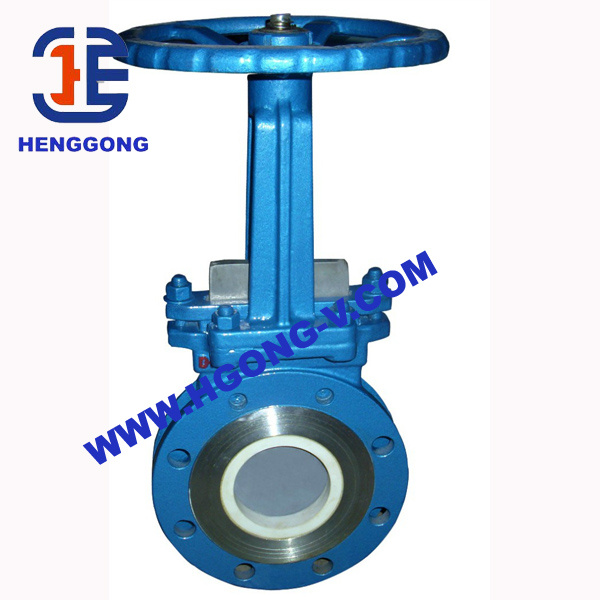

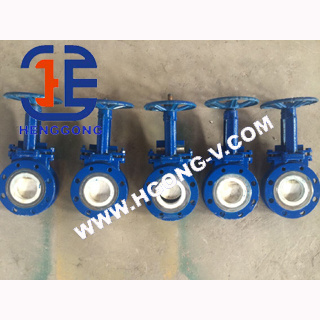

ANSI Manual Ceramic Knife Gate Valve (PZ73TC-150)
| Price: |
US $ 50/Piece |
| Trade Terms: |
FOB,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
T/T |
Product Description
Stainless Steel Fully Knife Gate Valves (PZ73H)
Standards Compliance:
MSS SP-81, JB/T 8691
Face to Face Dimension: MSS SP-81
Pre-temperature Rating: ANSI B16.34
Flanged Dimension: ANSI B16.5, DIN2533; JB79; GB/T 9113; HG20592
Inspect & Test: API 598, GB/T 13927; JB/T 9092
Carbon Steel:
Cast Carbon Steel A216 Gr WCB Body and Bonnet.
F316 Stem & Gate, Resilient or Metal Seating
Stem packing PTFE / graphite composite.
Cast Iron:
Cast Iron A126 GR. B Body and Bonnet.
F304 Stem & Gate, Resilient or Metal Seating
Stem packing PTFE / graphite composite.
Available also in low temperature steels, low alloy steels, stainless steels, duplex type stainless steels and other exotic materials.
Various trim materials available to suit service conditions.
Operations
Manual, Electric, Pneumatic and Hydrau-Pneumatic Actuator etc.
Size Ranges from 2in to 60in (DN50~DN1500)
Pressure Ratings available in PN6, PN10, PN16, ANSI 125 & ANSI 150
Main performance specification
Nominal pressure(MPa) | Body testing
(MPa) | Seal testing
(MPa) | Working temperaute
(ºC) | Appropriate media |
1.0
1.6 | 1.5
2.4 | 1.1
1.8 | Rubber≤100ºC
Y/H≤425ºC | paper pulp,dirty water,coal slurry,ashes,compornds of water and slag. |
Materials of main parts
Body,cover | Gate | Stem | Seal surface |
stainless steel,carbon steel,cast iron | stainless steel | stainless steel | Rubber,PTFE,stainless steel,hard alloy |
| Prod Model: |
PZ73TC-150 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Dn50-Dn1000: |
Pn10-Pn16 |
| Connection Form: |
Flange |
| Material: |
Carbon Steel |
| Seal Surface: |
Parallel Gate Valve |
| Thread Position Of Valve Rod: |
Outside Gate Valve |
| Application: |
Paper Pulp |
Established in 1998, HengGong valve Group Co., Ltd., is located in Dongou Industrial Area in Oubei Town of Yongjia County, the cradleland of "China Pump and Valve", which enjoys favorable geographical location and convenient transportation. Presently, our company is covering an area of 3000 square meters, and owns 10 senior engineers, 20 technicians and more than 150 staff. The company has strong technical capabilities and high-quality personnel teams.
Our company owns advanced manufacturing technologies, testing equipments. Moreover, our products have passed the ISO9001 Quality System Certification and Pressure Equipment Direction EC Certification. From design to delivery, in each procedure, products are controlled strictly in accordance with ISO9001(CQC) and the quality of products produced by our company is all insured by People's Insurance Company of China.
The company is specialized in production of a series of products such as knife style gate valves, various types of metal hard sealed ball valves, PTFE soft sealed ball valves, high temperature and pressure wrought steel ball valves and eccentric semispherical valves, three way valves(T-pattern, Y-pattern and L-pattern), API valves, forged steel valves, butterfly valve, globe valves, check valves and more, which are designed and manufactured according to international standards like GB, ANSI/API, JIS, DIN and etc. The main body material of produced valves.
Includes: WCB, WC1, WC6, WC9, CF8, CF8M, CF3, CF3M, 12CrMoV, 15Cr1Mo1V, LCB, LF and so on. The nominal diameter vary from 10mm to 1000mm and from 1/2" to 24". Operating pressure vary from 10MPa to 160MPa and 150Lb to 2500Lb. There are many driving modes including manual drive, helical wheel drive, electric drive, pneumatic power, hydraulic power, combined drive by electricity and liquid. All sorts of non-standard valves can be designed and produced in accordance with customers' request.
