Home Valve Products ANSI Standard Aluminum Slurry Gate Valve (ANSI standard)

ANSI Standard Aluminum Slurry Gate Valve (ANSI standard)

ANSI Standard Aluminum Slurry Gate Valve (ANSI standard)
Price: US $ 15/Piece
Trade Terms: FOB
Min Order: 10/Piece
Pay Type: L/C,T/T

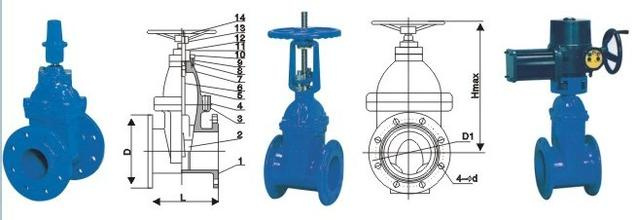

ANSI Gate Valve (cast steel)

Brief introduction:
The series of gate valves include cast steel gate valve and forged steel gate valve. They are designed and manufactured according to ANSI B16.34. With solid wedge and flexible wedge, so it can be used for different pressures. Gate valves have back seal. Back seal of forged-steel gate valve is weld with stainless steel. So it has perfect sealing. Its maintenance is convenient. Widely used in petroleum,chemistry,water treatment industries.

Features:

- "H" type wedge:
Gate valve has "H" type , flexible single wedge. It can compensate the distortion of body. So it has reliable sealing and prevent wedge against difficult operation because of overload. It is suitable to steam and other high temperature medium.

- Full port design:
Gate valve has full port. So it is convenient to clear pipeline.  - Changeable seat:
Seat and body is connected with thread. So seat can be dismantled and changed, It is convenient to maintenance.

- Precise design:
Design the body and bonnet according to precise calculation. body and bonnet have high strength , rigid and flow ability

Technical Specification
-Nominal diameter: 2"-24"
-Nominal pressure: 150Lb 300Lb 600Lb 900Lb 1500Lb
-Applicable Medium: water ,gas,oil,and other causticity medium.

Applications Standard
-Manufacture standard : ANSI B16.34
-Face to face dimension: ANSI B 16.10
-Flange dimension: ANSI B 16.5.MSS-SP-44
-Test: API 598. API 6D

Prod Model: ansi standard
Markets: North America,South America,Africa,Mid East
Material: Carbon Steel
Connection Form: Flange
Seal Surface: Wedge Gate Valve
Thread Position Of Valve Rod: Outside Gate Valve
Application: Industrial Usage
Shanghai Kangquan Valve Co., Ltd. is a professional valves manufacture, with a high-quality workforce of 218, 10 Senior Engineers, 25 MID-level technicians. Provided with two production bases, it covers an area of 15000 square meters with strong technical forces, well-equipped 90 kinds of machine tools and 2, 500 tons of valves output capacity annually.

Kangquan have accumulated a wealth of information and experience in this field and enjoy a high reputation in dealing with both domestic and overseas trading. In 1998, "green valve P&R&D Unit " cooperated with Shanghai University' S has been set up to development of green products successfully-soft seal epoxy coating gate valve, and has gained P&R&D engineering item Third Honors. Our products line includes various kinds of gate valves, globe valves, ball valves, check valves, cock valves, butterfly valves, etc. Always under the ISO 9001 quality assurance system, up to the international advanced standards of ANSI, API, JIS, DIN, BS and so on. Materials mainly include carbon steel, stainless steel, ductile iron and so on. With hand wheel, worm-gear actuator, pneumatic and electric actuator to be selected, widely used in the industries of petrochemical, natural gas, metallurgy, electric power, pharmaceutical, construction, etc...

With highly qualified professionals and first class service, Shanghai Kangquan Valve Co., Ltd. Has established a highly respected enterprise which has been relied on for years. And we will continuously offer customers the most accurate and high quality delivery service possible.

Excellent quality assurance is our sales purpose,

Competitive price is our sales policy,

On time product delivery and responsive service is our standard.

Shanghai Kangquan Valve Co., Ltd. Hopes to work together with you for a better future. Let' S work together building a mutually beneficial relationship that will last for years.
