ANSI Standard Cast Iron Handle Expansion Butterfly Valves

ANSI Standard Cast Iron Handle Expansion Butterfly Valves
Price: US $ 5-50/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 100/Piece
Pay Type: L/C,T/T,D/P

Usage
This product is suitable for throttling or shutting off the flow of corrosive or incorrosive gasses. Liquids,
Semiliquids and solid powder, and can be installed in selected position in pipelines or on vessels in
The industries of petroleum processing, chemicals, food, medicine, textile, paper making, hydroelectricity
Engineering, ship building, water supply and sewage, metallurgy, energy engineering as well as light
Industry, etc.

Feature
1. Long service life with reliable seal and without frequent main tenance
2. Pressure loss
Too much pressure loss will bring increased cost of correlative energy
Butterfly valve have flow characteristics three times better than globe valve, and about 75%
Of a same size gate valve
3. Multi-Function
Butterfly valve can be used for on/off service and throttling, They are superior in Multi-function
As compared to gate or globe valves. Butterfly valve can be widely used in chemical field due
To trim options and choice of elastomeric liner.
4. Weight
Butterfly valve have feature of light in weight and small in size, for example, weight and size of
A 10'' butterfly valve are 1/9 and 1/6 of a 10'' gate valve. So butterfly valve is easy to install and
Save cost of piping system.
5. Bubble Tight
Butterfly valve with resilient seat design can be bubble tight as compared to metal seated gate
Or globe valves.
6. Easy of operation
Butterfly valve offer 90-degree open to close.
7. Butterfly valves is approximate 35-40% cost of a same size gate valve. Also low
Installed cost than gate valve.
8. Maintenance
Properly installed butterfly valves are self cleaning and are less susceptible to failure due to
Trash material in pipe.
9. Delivery Time: 25 days after order conformed.
10. Standard: EN, MSS, API, AWWA, BS
11. Operation: Level operation
12. Body: Cast iron, stainless steel 304/316, aluminum bronze
13. Painting: PTFE coating, nylon painting
14. Stem: CS, SS416, SS410, SS304, SS431
15. Seat: NBR, EPDM, PTFE
16. Pressure: PN10, PN16
17. Size: 2''-24''
18. Packaging: Export poly wooden cases, or as per customers' requirements
19. Payment: By L/C, T/T and D/P
Performance date
SpecificationDN50-1600mm
Nominal pressure(Mpa)1
Testing pressure(Mpa)Strength1.5
Sealing1.1
Working temperature(°C)Normal-45°C-130°C SPECIAL:200°C(Instantanecus)
Suitable mediumFresh water,pollutewater,sea water,vapoir hydrochloric water,gas,food,oils,all kinds of oil acid and alkal.etc.
Driving methodsHandle,electric,peneuatic

Working condition code
Working condition codePJYS
Suitable mediumconmmonacid and alkalioil,gasfood,medicine
ExampleIncorrosive media such as water,air and slurry etc.Soultions ans medium of acid and alkaliOrganic sout ions such mineral oil ainmal and plant oil etc.All kinds of food and medicine

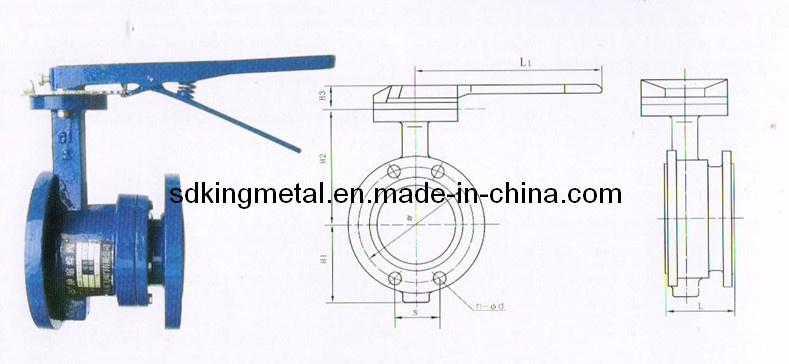

Outline and connection dimension
Nominal DNH1H2H3Expansion lengthDesign length        LL1Φn-Φd-M
mminchL(Max)L(Min)0.6MPa1.0MPa1.6MPa0.6MPa1.0MPa1.6MPa
50280112321631381512101101251254-14-M124-18-M164-18-M16
652  1/295122321881521702101301451454-14-M124-18-M164-18-M16
80398130321921621772531501601604-18-M164-18-M164-18-M16
1004114142322151752052531701801804-18-M168-18-M168-18-M16
1255128174322301852152532002102108-18-M168-18-M168-18-M16
1506139180322401952253032252402408-18-M168-23-M208-23-M20

Prod Model: SDNV010
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size: 2"-48"
Connection Form: Flange
Structure: Centre Sealing
Seal Form: Force Sealed
Work Pressure: Low Pressure (',Pn<1.6mpa)
Working Temperature: Normal Temperature (',-40??C
Material Of Seal Surface: Soft Sealed
Application: Household Usage
We are one of the biggest manufacturers and exporters of Pipeline products in China. We supply butt-welding pipe fittings, stainless steel screwed pipe fittings, forged steel flanges, cast iron valves, cast steel valves, stainless steel valves, balance valves rubber expansion joint, and much more. With many years of effort and support from our valuable customers, these products have obtained a big marker share in the world. At present our products have been export to Asia(Singapore, Tailand, Saudi Arabia, Bahrain, Yemenm, Jordan)Europe(Gemany, Italy, Spain, France, Portudal, Poland)Africa(Egypt, , Camaroon, Morocco)America(USA, Chile, Peru, Panama, Brazil, Paraguary Mexico)

Our business policy is noted for four "F":

Quality First Reputation First.

Customer First Price Fair.

Friends, traders and manufacturers all over the world are welcome to join us establishing and developing business relations on the basis of equality and mutual benefit under the principle of "Provide The World Market With High Quality Goods And Best Service".

Any information, samples and drawing s that you can provide will facilitate us to make the correct supply to meet your special requirement.
