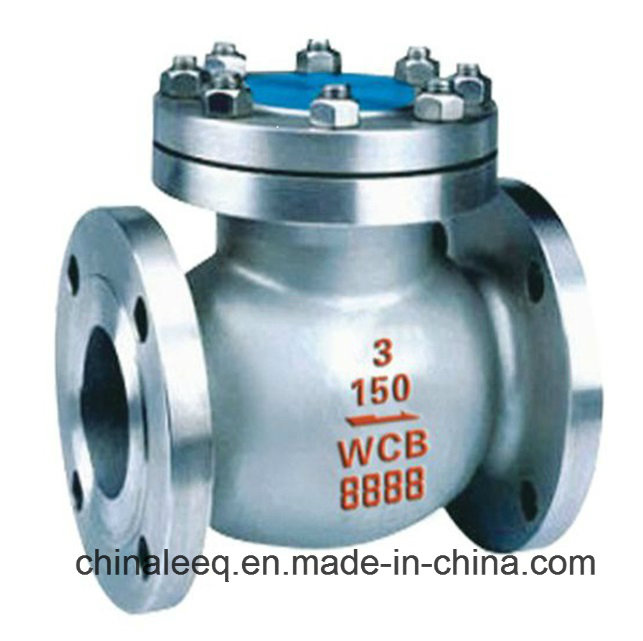

ANSI Swing Check Valve
Price: |
US $ 34-660/Set |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1/Set |
Pay Type: |
L/C,T/T,Western Union |
1.Main parts and materials
Parts Name | Material |
Body;Bonnet;Disc | A216 WCB | A352LCB,A217 WC6, A217 WC9, A217 C5, A315 CF8 | A351 CF8M | A351 CF3 | A351 CF3M |
Stem | A182 F6 | A182 F304 | A182 F316 | A182 F304L | A182 F316L |
Seat Ring | A105+13Cr, A105+STL, A182 304, A182 316 |
Disc Ring | 13Cr,STL,A351 CF8,A351,CF8M |
2.Standards
Design and Manufacture | Face to Face | Flange End | Ispection | Pressure-Temp Rating |
BS1868,ANSI B16.34 | ANSI B16.10 | ANSI B16.5 | API 598 | ANSI B16.34 |
3.Test pressure
Test Item | Shell Test | Seal Test | Back Seal Test | Air seal Test |
Medium(MPa) | Water(MPa) | Air(MPa) |
Pressure(Class) | 150 | 3.1 | 2.2 | 2.2 | 0.5-0.7 |
300 | 7.8 | 5.6 | 5.6 |
600 | 15.3 | 11.2 | 11.2 |
Prod Model: |
H44HWY-150/300/600Lb |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Size: |
2''-30'' |
Material: |
Cast Steel |
Connection Form: |
Flange |
Structure: |
Swing |
Function: |
Ddcv Double Lobe |
Application: |
Water Industrial Usage |
Xingtai City Liqian Import & Export Co., Ltd is committed to providing high-quality industrial valves to the international customers. Our factory has a 60-year history on researching, developing, manufacturing and marketing of industrial valve products that are widely used in Oil & Gas, Water Treatment, Power Generation, Petroleum Refinery, Chemical & Petrochemical, and Paper & Pulp industries. It is located in Tianjin-Bohai Economic Center, with strong geographical advantages and development spaces, now becoming the largest valve manufacturer in China. It has passed the authentication of ISO9001: 2008 quality management system, ISO 14001: 2004 environmental management system, and OHSAS 18001: 2007 Occupational Health & Safety System, also with CE, API, KS and GOST certification.
Our exported products include USA ANSI, API, AWWA standard valves, Germany DIN standard valves, England BS standard valves, Japan JIS standard valves, Russia GOST standard valves, France NF standard valves, etc. And the types covering gate valve, globe valve, ball valve, butterfly valve, check valve, diaphragm valve, reducing valve, plug valve, traps valve, etc. With stable quality and long using life, our valves are very popular in USA, Europe, Russia and Middle East markets.
To choose Liqian Valve means to choose safety. We would like to enjoy a win-win cooperation with the customers all over the world!
