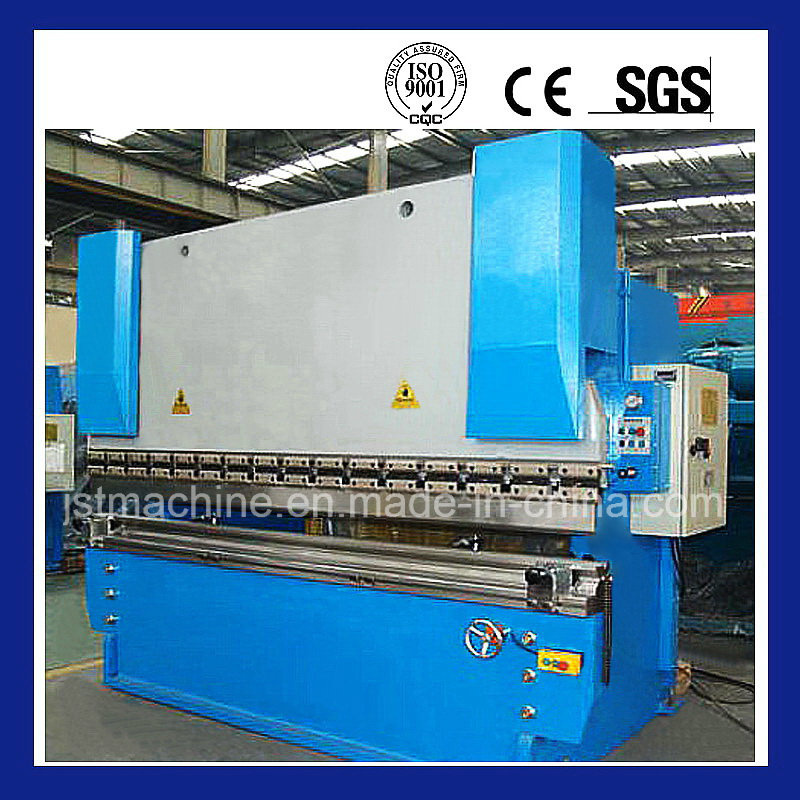

Hydraulic Press Brake, Aluminum Steel Sheet Plate Bending Machine:
Standard Accessories
* Mechanical equilibration of the ram- Torsion Arm
* Adjustable working pressure.
* Electrical panel with manual and auto operation.
* Electrics are Telemecanique, Schneider - Made in China
* Italy Hydraulic Valve and US Pump.
* Foot pedal
* Operation manual and tool kit
* With Two Axis NC Controller-Italy E200 controller
- 2 Axis, Y Axis depth control
X Axis Backgauge control
* Complete with:
HIWIN Ball Screw and HIWIN Linear Way
Models of CNC Hydraulic Press Brake as below:
| Model APB | 40.25 | 83.25 | 63.31 | 110.25 | 110.31 | 110.40 | 160.31 | 160.37 | 160.40 | 200.31 | 200.40 | 300.40 |
| Capacity KN | 400 | 630 | 630 | 1100 | 1600 | 1100 | 1600 | 1600 | 1600 | 2000 | 2000 | 3000 |
| Working Length mm | 2500 | 2500 | 310 | 2500 | 3100 | 4000 | 3100 | 3700 | 4000 | 3100 | 4000 | 4000 |
| Distance Betw housings mm | 2050 | 2050 | 2550 | 2050 | 2550 | 3140 | 2550 | 3140 | 3140 | 2550 | 3140 | 3140 |
| Throat Depth mm | 250 | 275 | 275 | 310 | 310 | 310 | 310 | 310 | 310 | 310 | 310 | 400 |
| Max stroke mm | 100 | 100 | 100 | 150 | 200 | 150 | 200 | 200 | 200 | 200 | 200 | 250 |
| Max open Height mm | 315 | 315 | 315 | 400 | 400 | 400 | 460 | 460 | 460 | 480 | 480 | 500 |
| Motor Power KW/HP | 5.5/7.5 | 5.5/7.5 | 5.5/7.5 | 7.5/10 | 11/15 | 7.5/10 | 11/15 | 11/15 | 11/15 | 15/20 | 15/20 | 22/30 |
| Approx weight kg | 3000 | 4000 | 4800 | 6000 | 9000 | 9000 | 9500 | 10500 | 11000 | 11000 | 13000 | 21000 |
| Length mm | 2500 | 2500 | 3100 | 2500 | 4000 | 4000 | 3100 | 3700 | 4000 | 3100 | 4000 | 4000 |
| Width mm | 1200 | 1250 | 1250 | 1500 | 1600 | 1600 | 1600 | 1600 | 1800 | 1650 | 1650 | 1800 |
| Height mm | 1900 | 2100 | 2100 | 2400 | 2400 | 2400 | 2400 | 2500 | 2500 | 2500 | 2500 | 2900 |
Jadestone Machine Tool Co., Ltd is a high Technology Enterprise specializes in the Field of Metal Sheet Fabricating Industry with Highest Quality Standards 9001: 2001 and Powerful Facility and Productivity.
With Years of Exporting Experiences, we Devote and leading in Manufacturing, Research, Marketing and Puissant Ocean Freight capacity global in Metal Cutting, Bending Machine, CNC Punching Machine, Cast Iron and Moulds Design. Our sales network stretches all over the world, with our business conception of Honesty, Creation. Quality. And after Service. To optimize maximum benefits for various Customers with those High performance products, which awards highly praises and repeat orders continuously from different regions.
Apply Territory:
Our products are widely used in Decor, Metallurgy, Boat & Auto Industries. Elevator, and outside construction building.
Products Ranges:
CNC Press Brake
CNC Shearing Machine
Hydraulic Guillotine Shear
(Option with: Estun, Delem, Cybelec, Italy controller )
Punch Press( CNC punch and Power Press. Hydrauic Press)
Tooling Set for Machine model (Amada. Durma. LVD. Haco. Trumpf...)
Drilling Machine and Milling Machine
Production Line, Uncoiled, Cutting, Bending and Punching. Or can be separated ordered.
Shipments:
Shipments to European, North America. South America. Middle East, South-East Asian and Ocean Countries globally.
After Services:
Provide with technical Services. Training service. Maintenance services. Spare parts in Warranty.
Within 24 hours online Service
