Product Description

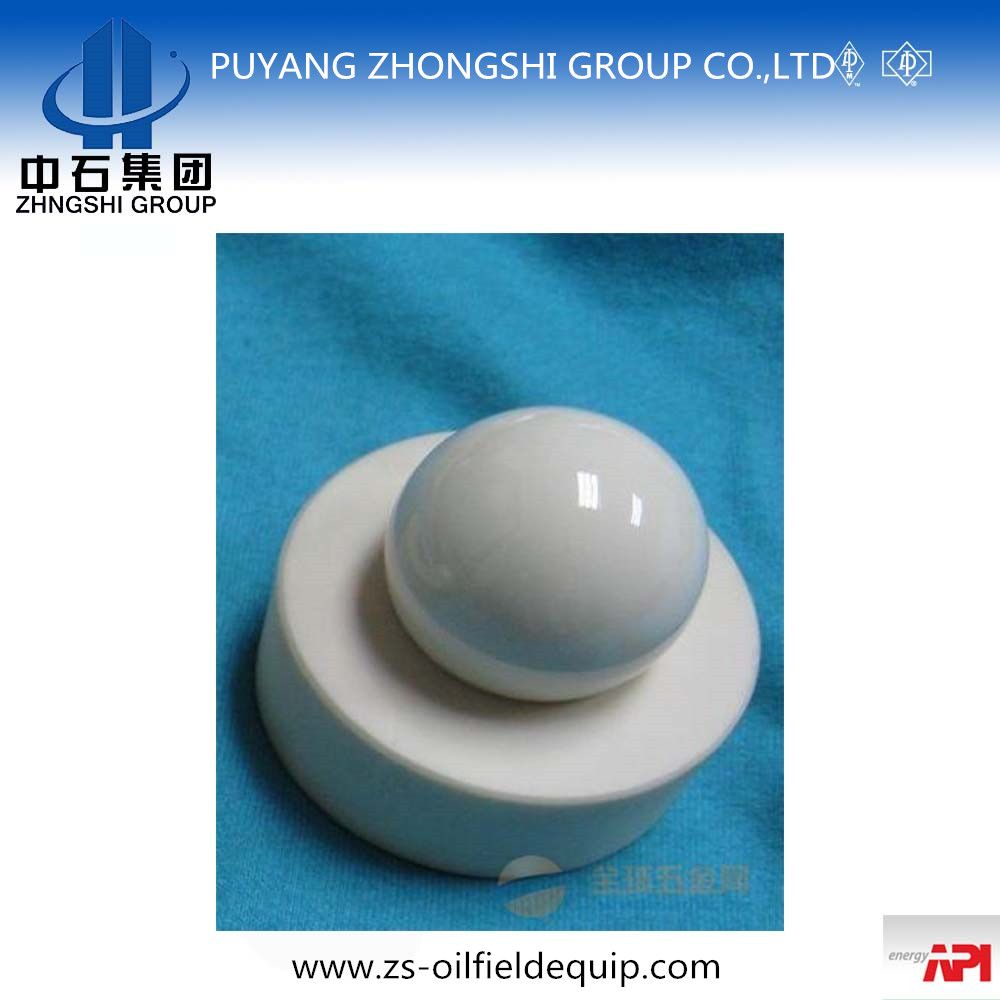

API 11ax Ceramic Valve Pairs Valve Balls and Valve Seats
1) Material: Stainless steel, Cobalt Alloy, Tungsten Carbide, Titanium Carbide available
2) Standard: API 11AX
3) API and ISO certified
4) Application
Valve ball and valve seat is widely used in petroleum industry, especially for oil well pump, such as sucker rod pump.
5) Feature
a. Castings of main alloys: cobalt-base alloy, nickel -base alloy,SS and stellite alloy;
b. Available forms: end product or blank;
c. Properties: good resistance against corrosion and oxidation;
d. Main application: extensively used in petrochemical industry, marine exploration, heat exchanger and pump;
e. Processing: investment casting, sand casting;
f. Maximum weight:
1) Investment casting: 180kg
2) Sand casting: 1,000kg
6) Parameter
Dimensional Symbol | V11-106 | V11-125 | V11-150 | V11-175 | V11-200 | V11-225 | V11-250 | V11-375 |
Ball-D
+0.020/-0.010
(+0.51/-0.25) |
15.88
(0.625in) |
19.05
(0.75in) |
23.83
(0.938in) |
28.58
(1.125in) |
31.75
(1.25in) |
34.93
(1.375in) |
42.88
(1.688in) |
57.15
(2.25in) |
Seat-ID
± 0.050
( ± 1.27) |
11.68
(0.46in) |
13.97
(0.55in) |
17.02
(0.67in) |
20.96
(0.825in) |
24.38
(0.96in) |
26.92
(1.06in) |
33.27
(1.31in) |
43.18
(1.7in) |
Seat-OD
+0.000/-0.005
+0.00/-0.13 |
20.14
(0.793in) |
23.32
(0.918in) |
29.67
(1.168in) |
35.26
(1.388in) |
37.54
(1.478in) |
43.69
(1.72in) |
51.05
(2.01in) |
78.03
(3.072in) |
Seat-H
+0.020/-0.010
(+0.51/-0.25) |
0.500
(12.70in) |
0.500
(12.70in) |
0.500
(12.70in) |
0.500
(12.70in) |
0.500
(12.70in) |
0.500
(12.70in) |
0.500
(12.70in) |
0.750
(19.05in) |
