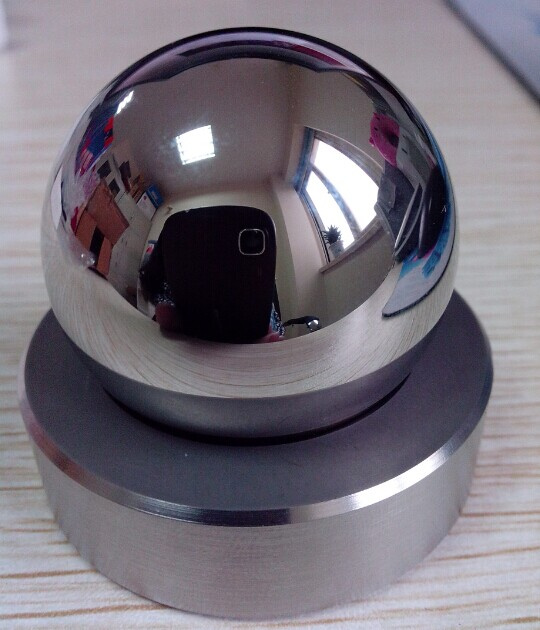

API 11AX Spec valve balls and valve seats on sale
Sucker rod pumps valve balls and valve seats are widely used in oil fields , their performance directly affects the use effect and service life of the pumps.
Materials have stainless steel, ceramic, hard alloy (tungsten carbide), and can meet the needs of various well conditions., with advantages of high hardness, wear resistance, corrosion resistance.
Specifications of Valve Ball & Valve Seat for API Sucker Rod Pump:
API No. | Seat Size | Ball Size |
V11-106 | 1-1/16" | 5/8" |
V11-125 | 1-1/4" | 3/4" |
V11-150 | 1-1/2" | 15/16" |
V11-175 | 1-3/4" | 1-1/8" |
V11-200 | 2" | 1-1/4" |
V11-225 | 2-1/4" | 1-3/8" |
V11-250 | 2-3/4" | 1-1/16" |
V11-375 | 3-3/4" | 2-1/4" |
some API specifications for reference:
Dimensional Symbol | V11-106 | V11-125 | V11-150 | V11-175 | V11-200 | V11-225 | V11-250 | V11-375 |
Ball-D +0.020/-0.010 (+0.51/-0.25) | 15.88 (0.625in) | 19.05 (0.75in) | 23.83 (0.938in) | 28.58 (1.125in) | 31.75 (1.25in) | 34.93 (1.375in) | 42.88 (1.688in) | 57.15 (2.25in) |
Seat-ID ± 0.050 (± 1.27) | 11.68 (0.46in) | 13.97 (0.55in) | 17.02 (0.67in) | 20.96 (0.825in) | 24.38 (0.96in) | 26.92 (1.06in) | 33.27 (1.31in) | 43.18 (1.7in) |
Seat-OD +0.000/-0.005 (+0.00/-0.13) | 20.14 (0.793in) | 23.32 (0.918in) | 29.67 (1.168in) | 35.26 (1.388in) | 37.54 (1.478in) | 43.69 (1.72in) | 51.05 (2.01in) | 78.03 (3.072in) |
Seat-H +0.020/-0.010 (+0.51/-0.25) | 0.500 (12.70in) | 0.500 (12.70in) | 0.500 (12.70in) | 0.500 (12.70in) | 0.500 (12.70in) | 0.500 (12.70in) | 0.500 (12.70in) | 0.750 (19.05in) |
We regard customer satisfaction and market cultivation as its central job of service and provides first class product and personalized service. Senior technical engineers and production backbones go deeply into the marker for investigation. And tap the potential demands of customers at the first time. We provide customers with perfect solutions.
